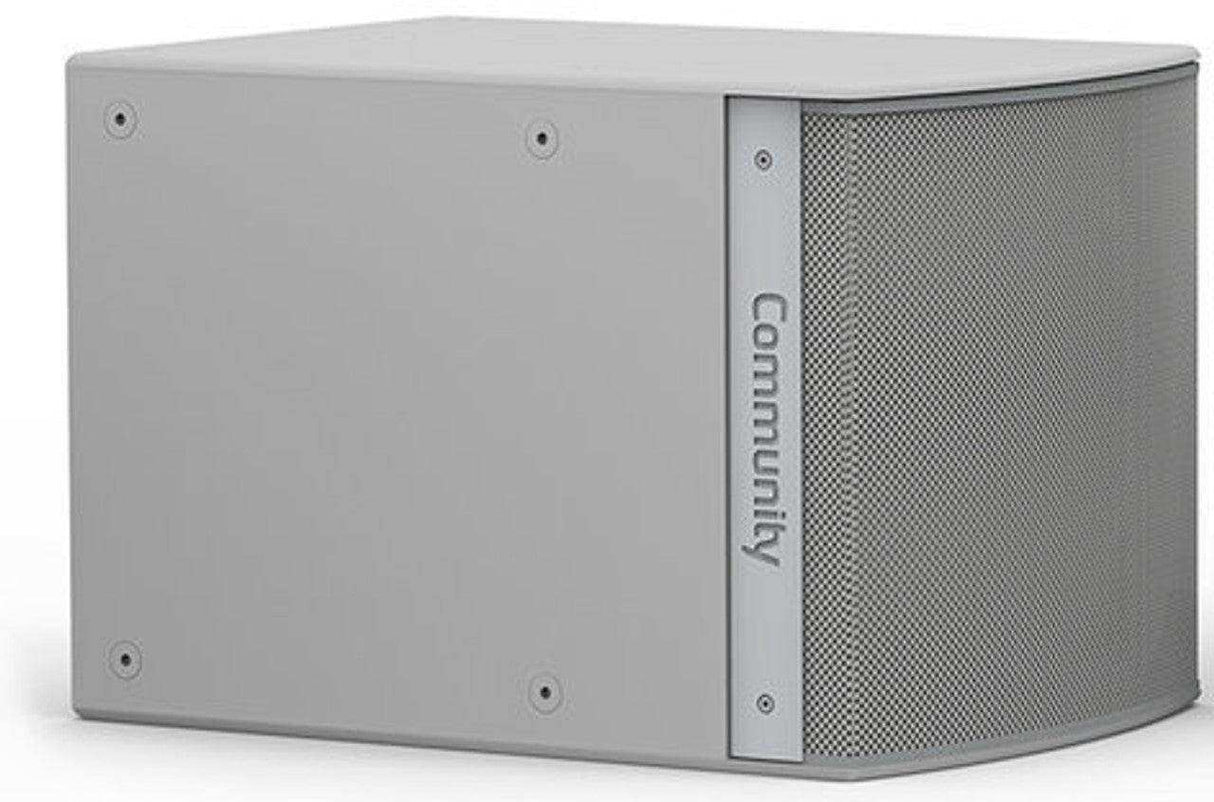

Biamp Community IS6-112 Medium Power 12-Inch Subwoofer (White) - 911.1121.900

The Community IS6-112 is an I Series Subwoofer 600 12" 700W (8 Ohms) passive installation subwoofer. This subwoofer is well-suited for applications such as houses of worship, auditoriums, restaurants, meeting rooms, corporate A/V systems, arenas, stadiums, theaters, or any other applications requiring extended low-frequency response.

I Series Subwoofer 600 loudspeakers provide excellent acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I Series Subwoofers provide a broad range of sizes and capabilities that can be specifically matched to the needs of any modern venue.

The compact, low-profile single driver I Series subwoofers are ideal for distributed or concealed sub-bass and are the perfect choice for ground stack applications. Additionally, each cabinet was carefully designed to provide matching face widths and suspension point locations for seamless integration into flown arrays with I Series full-range models when additional LF extension is needed but a compact appearance is required. The broad range of optional low profile fly rails, fly frames and modular array brackets reduces design and installation time while also providing improved aesthetics and nearly limitless integration possibilities.

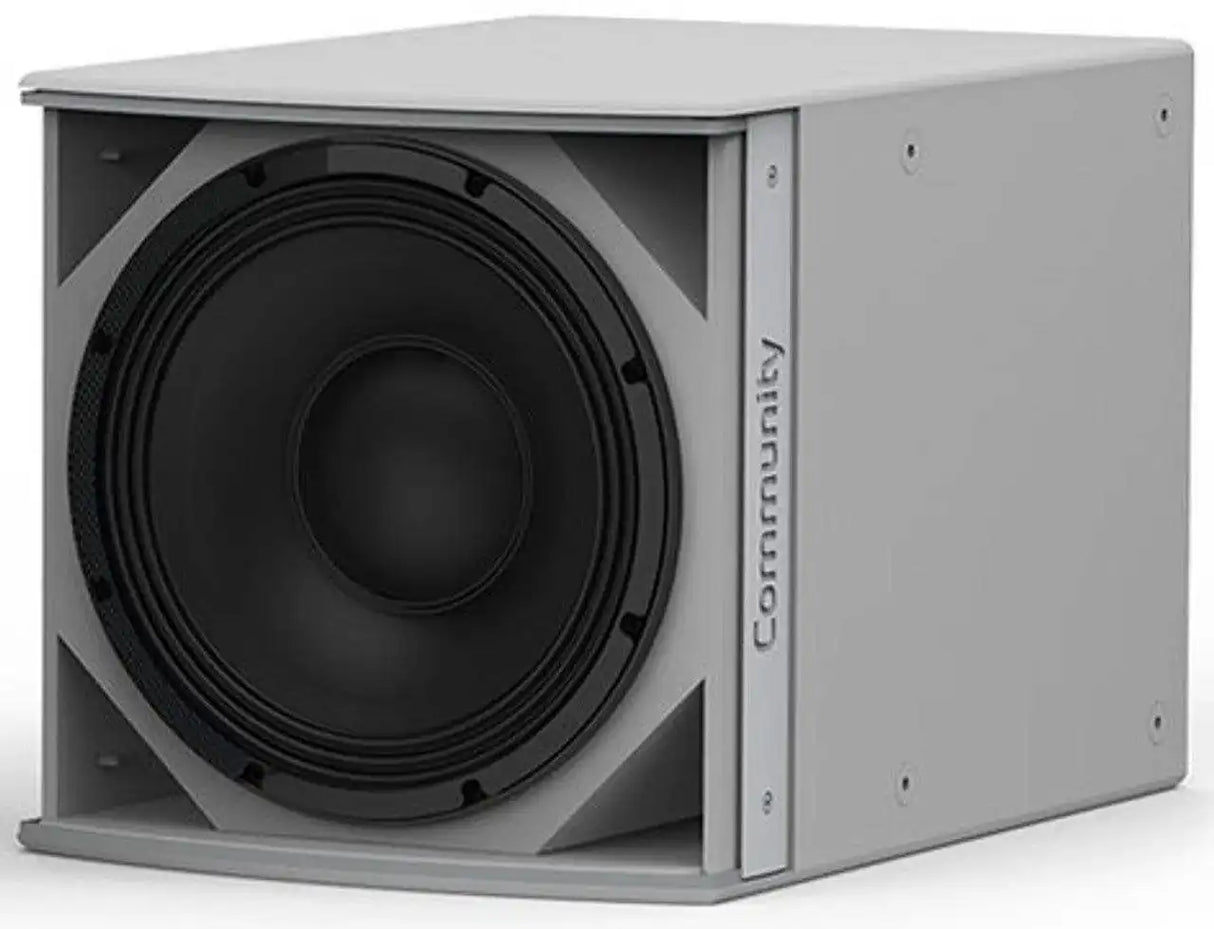

The IS6-112 is a compact, direct radiating subwoofer with large, balanced ports that provide optimal enclosure tuning and even air pressure distribution to the driver cone, reducing distortion and extending system longevity. A FEA-optimized ferrite motor with long linear excursion capabilities provides deep bass response for the enclosure’s diminutive size.

Applications

SMALL TO MEDIUM SIZE VENUES

• Houses of Worship
• Auditoriums
• Restaurants Meeting Rooms
• Theaters
• Corporate A/V Systems

LARGER SIZE VENUES

• Arenas
• Stadiums
• Night Clubs
• Theaters Themed Entertainment
• Larger Houses of Worship

Features

• Long excursion ferrite LF driver with FEA-optimized motor and symmetric movement suspension
• Matched-size enclosure and aligned suspension point for seamless flown array integration
• 700W continuous power handling (2800W peak)
• High sensitivity design minimizes power compression losses and required amplifier size

Specifications

• Operating Mode: Single Amp
• Operating Environment: Indoor
• Operating Range: 39 Hz - 150 Hz
• Transducer: 1x 12" (305 mm) double-treated cone with 4" (102 mm) inner/outer wound voice coil, ferrite construction
• Continuous Power Handling @ Nominal Impedance, Single Amp, 75V: 700W @ 8 Ohms (2800W peak)
• Nominal Sensitivity:
• Half Space: 100dB @ 1W/2.83V
• Whole Space: 94dB @ 1W/2.83V
• Nominal Maximum SPL:
• Half Space: 128dB continuous; 134dB peak
• Whole Space: 122dB continuous; 128dB peak
• Equalized Sensitivity:
• Half Space: 96dB @ 1W/2.83V
• Whole Space: 90dB @ 1W/2.83V
• Equalized Maximum SPL:
• Half Space: 124dB continuous; 130dB peak
• Whole Space: 118dB continuous; 124dB peak
• Recommended Amplifiers: 700W - 1400W @ 8 Ohms (75V - 106V)
• Physical:
• Input Connection: (2) Screw terminal blocks (4-position)
• Mounting Points: (24) M10 threaded rigging points
• Environmental: IPX4 per IEC 60529, designed in accordance with MIL-STD-810G
• Dimensions (H x W x D): 14.30" x 14.50" x 21.00" (363 x 368 x 533 mm)
