Biamp Community AFC200 Autotransformer 200W - 911.1350.900

Biamp SKU: 911.1350.900
No reviews
Price:
$194.00

Description

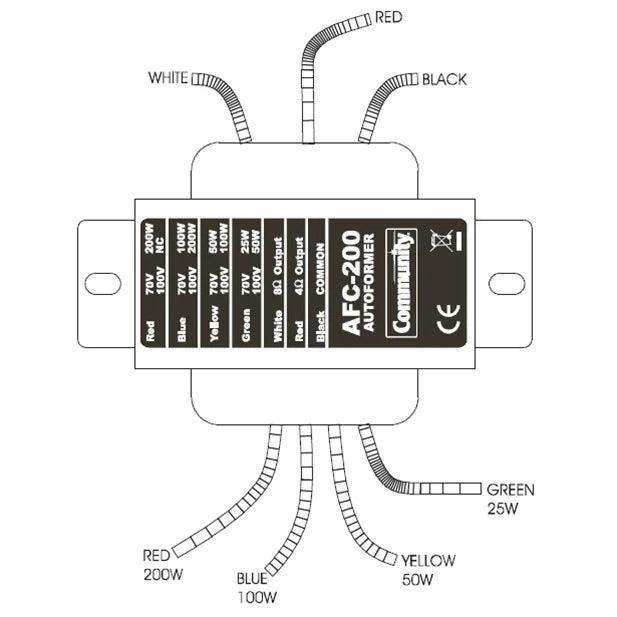

The Community AFC200 is a 200 Watt 70/100 volt line autoformer to step down the voltage and impedance of "constant voltage" audio distribution lines to the voltage level and impedance required by loudspeakers. The AFC200 has four output taps. The taps allow individual loudspeakers to be adjusted to operate at the same or different power levels compared to other loudspeakers on the distribution line. The input tap can be used for 100V, 70V distribution systems. The output taps of the AFC200 are designed to drive nominal 4 or 8 ohm loudspeakers.

The AFC200 is manufactured from high quality materials. Its high permeability iron core provides high power handling at low frequencies. The AFC200 has two mounting tabs that allow it to be bolted into back-boxes or other enclosures, to loudspeaker enclosures, or to loudspeaker mounting hardware. The stripped wire input and output leads can be easily connected to loudspeaker terminals and the distribution cable in a variety of ways including terminal strips, soldering, and wire-nuts.

Data Sheet

  • Can be used for voltage Step-up or Step-down
  • Low Insertion Loss
  • Excellent low frequency performance at full power
  • Four output taps

Community AFC200 Specifications

  • Type: Line Autoformer for constant voltage audio distribution lines
  • Input: 70V / 100V Line
  • Maximum Input: 100V RMS / 140V Peak
  • Outputs: 25, 50, 100, 200W
  • Output Load: 4 or 8 Ohms, Nominal
  • Frequency Response: 70 Hz - 16 kHz (+/- 1dB) at 70V
  • Insertion Loss: 1 dB
  • Input & Output Connections: 5 in (127mm) 18-AWG color coded wires with stripped ends
  • Construction: Open Frame
  • Mounting Provisions: (2) mounting tabs each with a 0.27" x 0.15" (7mm x 4mm) hole
  • Dimensions:
    • Height: 2.5"
    • Width: 3"
    • Width: 3.5"
    • Depth: 2.5"
  • Weight: 2 lbs
