Biamp 910-00328 Tesira SVC-2 CK

Product Overview

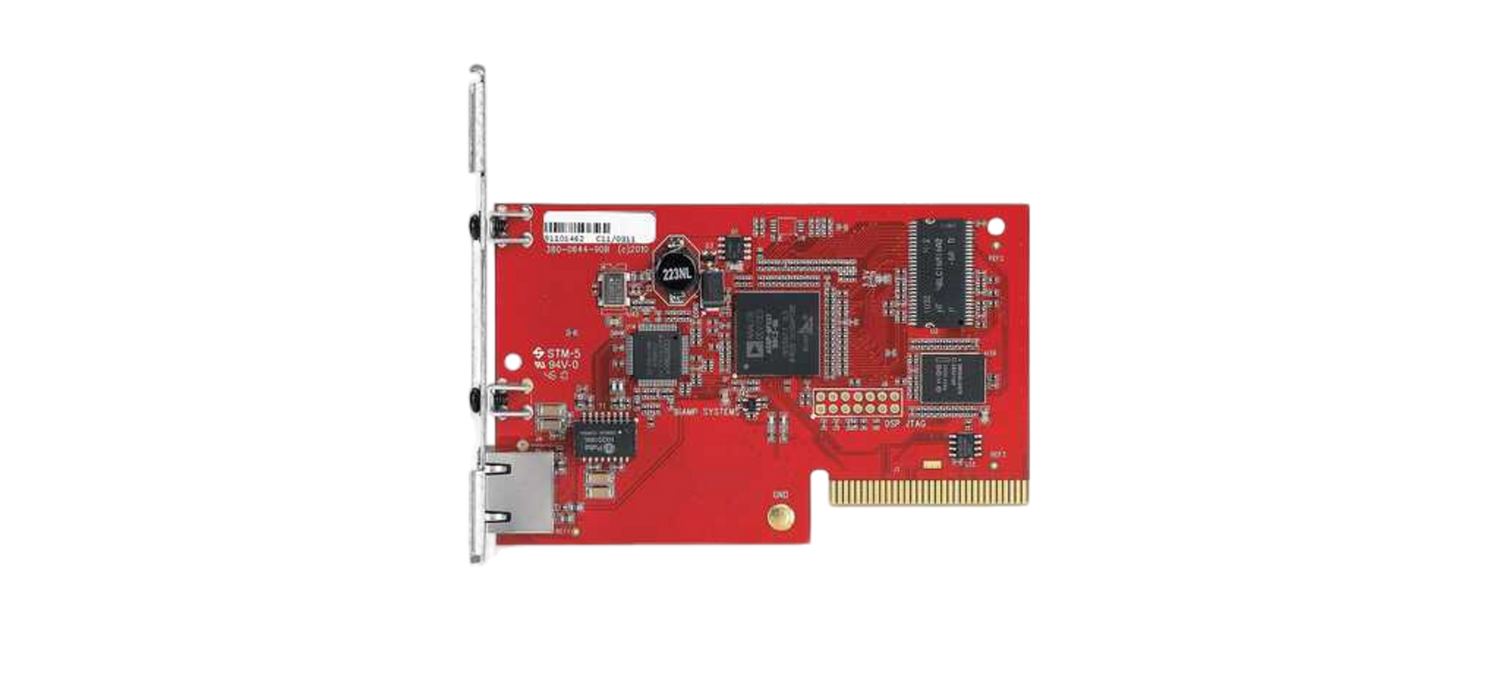

The Biamp Tesira SVC-2 is a two-line modular Voice over IP (VoIP) interface card for Tesira SERVER and SERVER-IO devices, letting a Tesira DSP system connect directly to IP-based telephone systems for conferencing. It provides a single RJ-45 connector supporting up to two VoIP telephone lines and supports a range of standard codecs. The card is a common way to add telephony to a Tesira conferencing system in conference rooms, boardrooms, and commercial meeting spaces. It carries a five-year warranty.

Product Description

The SVC-2 adds VoIP telephony to a Tesira system so calls can be brought into the same DSP that handles room microphones, loudspeakers, and conferencing processing. Installed in a Tesira SERVER or SERVER-IO chassis, the card presents a single RJ-45 connector that supports up to two VoIP lines, allowing two simultaneous telephone connections into the audio system. It supports multiple standardized codecs, including G.711µ, G.711A, G.722, G.729AB, and G.723.1, for interoperability with common IP-PBX and SIP telephone platforms. Bringing telephony into the Tesira DSP means the same echo cancellation, mixing, and routing used for the room's networked microphones and loudspeakers also apply to the phone line, which keeps far-end callers clear during combined VoIP and in-room conferences. The SVC-2 is intended for integrators building Tesira-based conferencing in commercial meeting spaces and government facilities. For the Tesira servers and conferencing hardware it works with, browse the Biamp collection at Creation Networks.

Key Features

• Two-line VoIP interface — A single RJ-45 connector supports up to two VoIP telephone lines into the Tesira system.
• Tesira SERVER and SERVER-IO card — The modular card installs in Tesira SERVER and SERVER-IO devices to add telephony to the DSP.
• Broad codec support — It supports G.711µ, G.711A, G.722, G.729AB, and G.723.1 for interoperability with common IP telephone platforms.
• Integrated conferencing processing — Telephony runs through the Tesira DSP, so the system's echo cancellation, mixing, and routing apply to the phone line.
• Five-year warranty — The card is backed by a five-year warranty.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• Government space
• Multi-purpose room

Technical Specifications

Specifications sourced from Biamp product documentation. Confirm detailed specifications, including the exact contents of the CK variant, against current Biamp documentation.

Frequently Asked Questions

What does the SVC-2 do?
It is a two-line VoIP interface card that lets a Tesira system connect directly to IP-based telephone systems for conferencing.

Which Tesira devices accept the SVC-2?
It installs in Tesira SERVER and SERVER-IO devices as a modular card.

How many phone lines does it support?
A single RJ-45 connector supports up to two VoIP telephone lines.

Which codecs are supported?
It supports G.711µ, G.711A, G.722, G.729AB, and G.723.1 for compatibility with common IP-PBX and SIP platforms.

How does it improve call quality?
Because telephony runs through the Tesira DSP, the system's acoustic echo cancellation, mixing, and routing apply to the phone line for clear far-end audio.

Does it include a warranty and support?
The SVC-2 carries a five-year warranty. Contact Creation Networks for current warranty terms and integration assistance.
