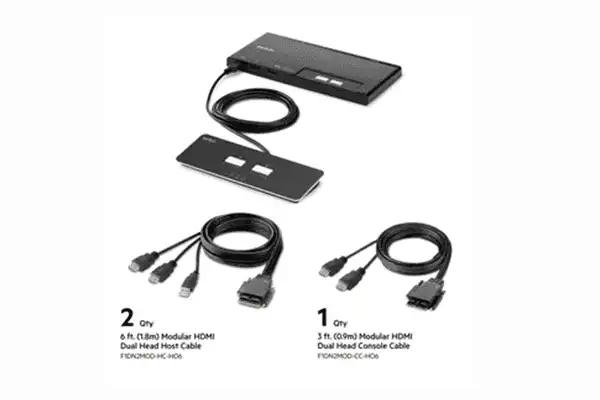

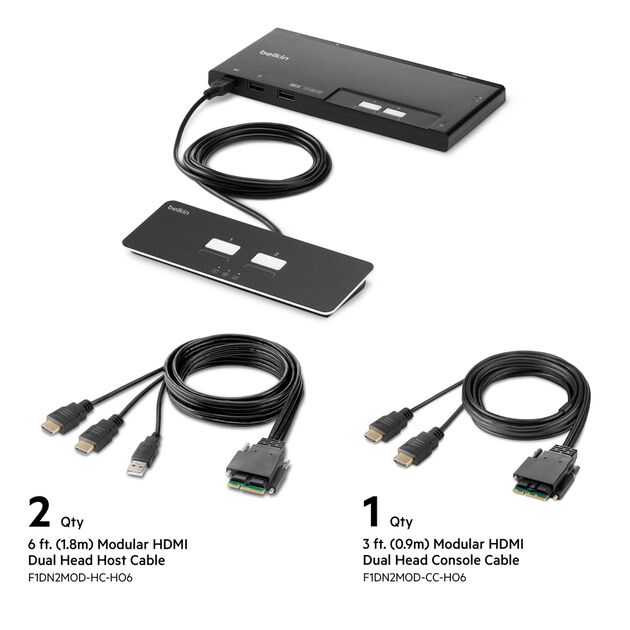

Belkin F1DN202MOD-HH-4 – 2-Port Dual Head HDMI Modular Secure KVM Switch PP4.0

Product Overview

The Belkin F1DN202MOD-HH-4 is a 2-port, dual-head HDMI modular secure KVM switch certified to NIAP Protection Profile PP4.0 with remote switching capability, engineered for government agencies, intelligence organizations, and commercial enterprises requiring certified multi-domain workstation security. This secure KVM switch allows a single operator to work across two isolated computer systems using one set of keyboard, video, and mouse peripherals, with hardware-enforced data separation preventing any cross-domain information leakage. The modular architecture supports interchangeable I/O modules, giving AV integrators flexibility to adapt the unit to evolving signal requirements. Dual-head HDMI video output per host port supports high-resolution multi-monitor deployments in classified and unclassified workstation environments.

Product Description

The F1DN202MOD-HH-4 belongs to Belkin's modular secure KVM series, which distinguishes itself from fixed-connector models through its field-swappable port modules. This architecture allows procurement teams and AV integrators to specify HDMI, DisplayPort, or mixed-video configurations from a single chassis platform, simplifying long-term lifecycle management in large government deployments where video standards may evolve over time.

As a NIAP PP4.0-certified device, this switch meets the U.S. government's current baseline requirement for peripheral sharing switches used in classified environments. Hardware data diodes and per-port isolation microcontrollers ensure that no electronic signal path exists between connected hosts except through the strictly filtered keyboard and mouse channels. All USB HID traffic is scrubbed and re-generated, preventing HID-channel covert data transfer.

The dual-head HDMI interface supports resolutions up to 3840x2160 at 30Hz per display on both connected computers. An included remote control allows port selection from a distance, useful in secure facility configurations where physical access to the switch chassis may be restricted. Audio is routed per port with full electrical isolation between host channels. The unit is TAA compliant and qualifies for federal government procurement via GSA schedule.

Key Features

• NIAP PP4.0 Certified — Certified to the current U.S. government standard for peripheral sharing switches, approved for use in classified and multi-domain government workstation environments.
• Modular I/O Architecture — Field-swappable I/O modules allow HDMI, DisplayPort, or mixed-video configurations from a single chassis, reducing procurement complexity across large deployments.
• 2-Port Dual-Head HDMI — Two host ports each support dual HDMI video outputs, enabling dual-monitor operation on both connected computers at up to 3840x2160 @ 30Hz.
• Included Remote Control — Remote switching accessory enables port selection without physical interaction with the switch chassis, supporting secure room configurations.
• Hardware Data Isolation — Optical data diodes and dedicated per-port microcontrollers enforce strict unidirectional data flow, eliminating cross-domain leakage paths.
• USB HID Traffic Filtering — Keyboard and mouse signals are fully scrubbed and re-generated to prevent covert channel attacks through the human interface device layer.
• Analog Audio Isolation — Stereo audio is switched and electrically isolated per host port, preventing audio-channel information leakage between security domains.
• Anti-Tamper Chassis — Tamper-evident seals and permanent lockout on chassis breach attempts protect against physical hardware modification attacks.
• TAA Compliant — Meets Trade Agreements Act requirements for U.S. federal procurement through GSA schedule contracts.
• No Host Drivers Required — Plug-and-play USB HID compatibility; no software installation required on connected host computers.

Typical Applications

• Government space
• Boardroom
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

What does "modular" mean for this KVM switch?

The F1DN202MOD-HH-4 uses interchangeable I/O port modules. This means the HDMI connectors can be replaced with DisplayPort or other supported modules without replacing the entire chassis, allowing the unit to adapt to changing video interface requirements over the product lifecycle.

Is the F1DN202MOD-HH-4 approved for classified government environments?

Yes. This unit is NIAP-certified to Protection Profile PP4.0 for Peripheral Sharing Switches, the current U.S. government baseline certification for secure KVM switches in classified and multi-domain environments.

What video resolutions are supported?

Each host port supports dual-head HDMI video at resolutions up to 3840x2160 at 30Hz per display, supporting modern 4K multi-monitor workstation configurations.

Does this switch include a remote control?

Yes. A remote control is included with the F1DN202MOD-HH-4, enabling port switching from a distance. This is particularly useful in secure room layouts where the switch chassis may not be immediately accessible to the operator.

Is this product TAA compliant?

Yes. The F1DN202MOD-HH-4 is TAA compliant and available for purchase under U.S. federal GSA schedule contracts.

Are there any host-side software requirements?

No drivers or software are required. The switch presents as a standard USB HID device to all connected hosts.

What is the warranty?

This product carries a 3-year limited warranty from Belkin. Contact Belkin enterprise support for government and volume purchase warranty options.
