Barco R9862000 TLD+ LENS 0.73; 0.67:1 for HDX/F ; NOT FOR HDX 4K ; NOT FOR UDM/X 4K

Product Overview

The Barco TLD+ Lens 0.73 (article R9862000) is a short-throw fixed lens for Barco HDX and F-series projectors, delivering a 0.67:1 throw ratio on WUXGA chips and 0.80:1 on UXGA. It is the right choice when the projector must sit close to the screen on a compatible WUXGA-class body. Note the important compatibility limit: this lens is NOT for HDX 4K and NOT for UDM/UDX 4K projectors. It mounts via the standard TLD+ lens interface on the supported HDX, HDF/F-series, RLM and SLM platforms.

Product Description

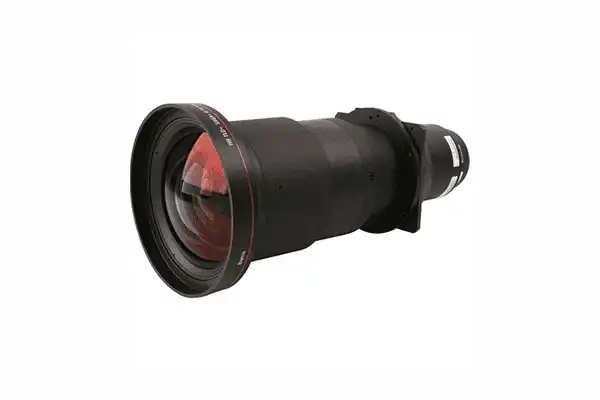

As shown in the product image, the TLD+ 0.73 is a compact short-throw lens intended for WUXGA-class large-venue projectors. It supports motorized zoom, focus and lens shift with position memory for repeatable setup. Critically, this lens does not support the 4K imager platforms: it must not be used on HDX 4K, UDM 4K or UDX 4K projectors. For 4K-capable bodies needing a comparable short throw, select a 4K-rated lens such as the TLD+ 0.65-0.85 UST 90.

This lens is compatible with Barco large-venue projectors across the Barco projector and lens collection, including HDX-W12/W14/W18, HDF-W22/W26/W30, RLM-W12/W14 and SLM Performer/Executive models. Because it uses the shared TLD+ mount, the lens can move between supported WUXGA-class bodies, but always confirm the projector is not a 4K model before fitting.

Key Features

• Short-throw design — 0.67:1 throw on WUXGA for close projector-to-screen placement.
• HDX/F-series compatibility — Built for WUXGA-class HDX, HDF/F-series, RLM and SLM bodies.
• Important 4K restriction — Not for HDX 4K and not for UDM/UDX 4K projectors.
• Motorized zoom and focus — Remote optical adjustment for precise framing and sharpness.
• Motorized lens shift with memory — Stores positions for repeatable setup.
• All-glass construction — High-quality optics for large-venue imaging.
• Standard TLD+ mount — Fits the shared TLD+ lens interface on supported bodies.

Typical Applications

• Short-throw fixed installations on WUXGA-class HDX and F-series projectors
• Large-venue rental and staging with WUXGA bodies and limited throw depth
• Auditorium and lecture-hall projection
• House of worship sanctuaries with shorter throw distances

Technical Specifications

Frequently Asked Questions

Which projectors does the TLD+ 0.73 fit? It fits WUXGA-class Barco bodies including HDX-W, HDF/F-series, RLM-W and SLM Performer/Executive projectors.

Can I use this lens on a 4K projector? No. This lens is NOT for HDX 4K and NOT for UDM 4K or UDX 4K projectors. Use a 4K-rated TLD+ lens on those bodies.

What is the throw ratio? 0.67:1 on WUXGA chips and 0.80:1 on UXGA.

What is the Barco article number? The order code is R9862000.
