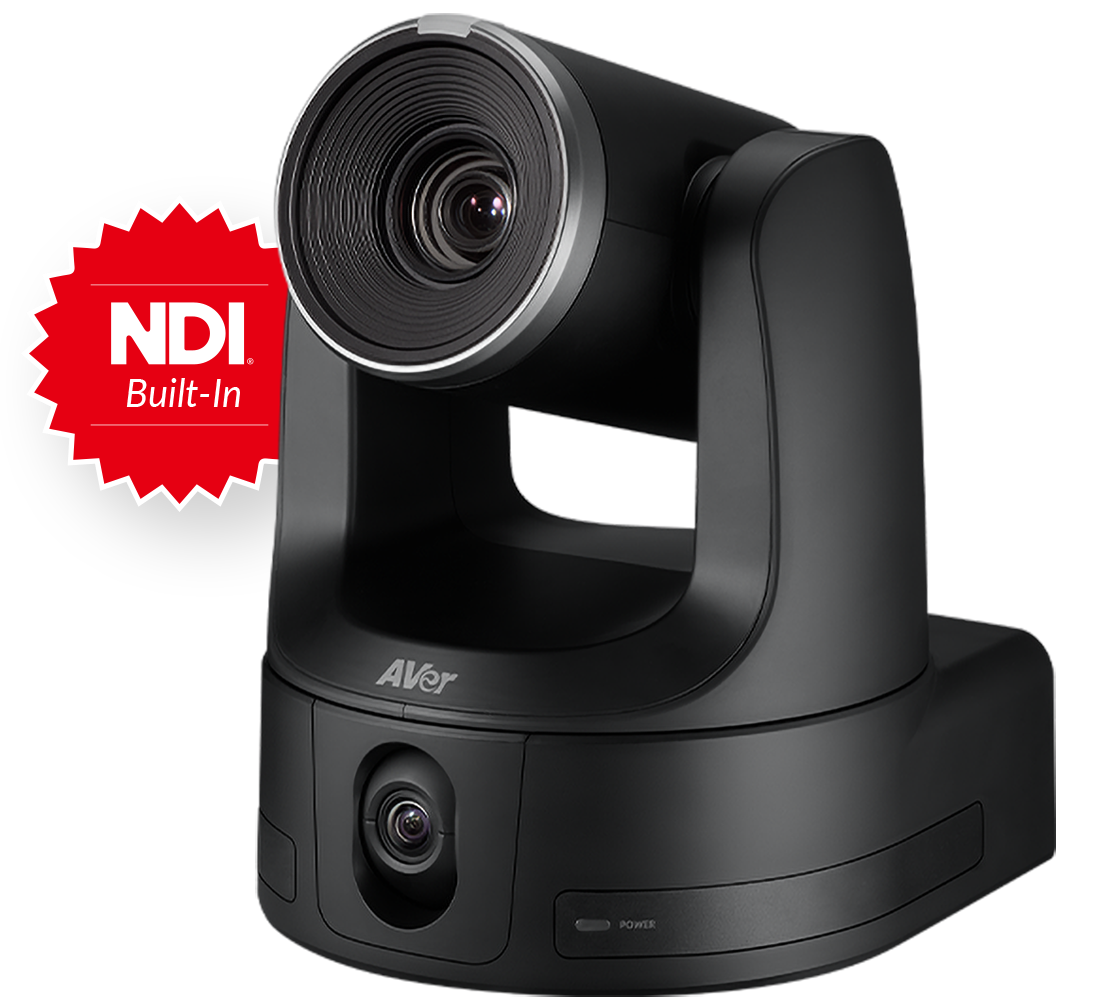

AVer TR535N – NDI Dual Lens Auto Tracking Camera

What is the AVer TR535N dual lens auto tracking camera?

The AVer TR535N is a 30x optical zoom, 4K dual-lens auto tracking camera built for enterprise, government, and higher education organizations that need professional-quality video without a dedicated videographer. It pairs an 8MP 4K PTZ lens for detailed close-ups with a 110° wide-angle lens for full-room coverage, and adds native NDI High Bandwidth connectivity for low-latency, near-lossless AV-over-IP streaming.

How does the AVer TR535N work?

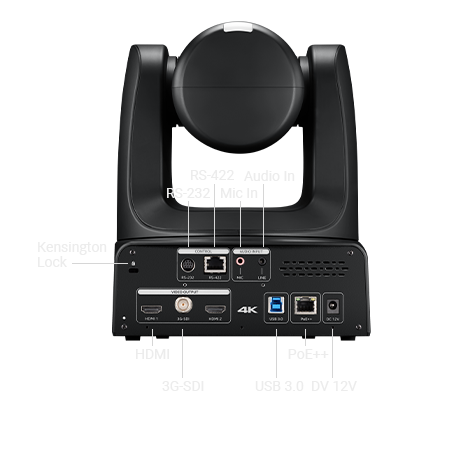

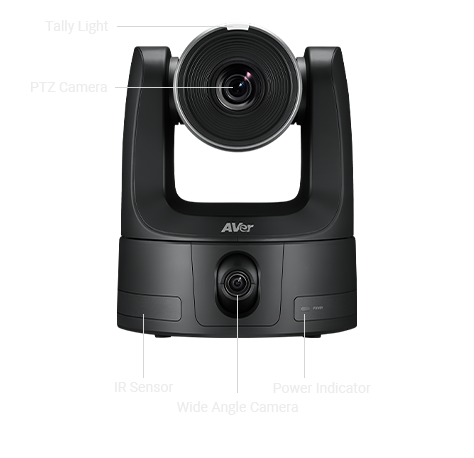

The wide-angle lens continuously covers the full room to minimize blind spots, while the 30x optical zoom PTZ lens locks onto and frames the active presenter in sharp 4K detail — the two work together so the camera never has to choose between overview and close-up. Four AI-driven tracking modes keep subjects framed automatically without an operator, and a picture-in-picture (PiP) function can display both the wide and zoomed views simultaneously when that's useful for the production. Output is flexible across dual HDMI, USB, 3G-SDI, IP, and NDI, with NDI High Bandwidth specifically delivering near-lossless compression and ultra-low latency for demanding live production and streaming workflows. PoE++ support means a single CAT cable handles both power and control, simplifying installation whether the camera is wall- or ceiling-mounted. Voice tracking is available as an add-on through AVer's PTZ Link software paired with a compatible microphone or the MT300N/MT500 tracking box, rather than being built into the camera itself.

What are the key features of the AVer TR535N?

• 30x optical zoom, 4K60 resolution — detailed, high-frame-rate close-ups of presenters.
• Dual-lens design — 110° wide-angle lens for full coverage alongside the zoom PTZ lens.
• Four AI tracking modes — automated presenter framing without a dedicated operator.
• NDI High Bandwidth built in — near-lossless, ultra-low-latency AV-over-IP streaming.
• Picture-in-picture (PiP) — display wide and zoomed views simultaneously.
• PoE++ powered — single CAT cable handles both power and control.
• Flexible mounting — wall or ceiling installation options.
• 5-year warranty — AVerCare Advanced Replacement coverage (1 year on included accessories).

Where is the AVer TR535N typically used?

• Enterprise and corporate collaboration spaces
• Government and higher education lecture capture
• Broadcasting and live streaming production
• Video distribution environments

Technical Specifications

Frequently Asked Questions

Does the TR535N include voice tracking out of the box?

No. Voice tracking requires AVer's separate PTZ Link software paired with a compatible microphone or the MT300N/MT500 tracking box — the TR535N's own AI tracking modes handle visual presenter tracking independently.

What does NDI High Bandwidth add over standard NDI?

NDI High Bandwidth delivers near-lossless compression and ultra-low latency, which matters for demanding live production and broadcast workflows compared to more compressed NDI variants.

Can the TR535N show both the wide and zoomed views at once?

Yes, through its picture-in-picture (PiP) function, which can display both camera views simultaneously.

What mounting options does the TR535N support?

The camera's dual-camera design supports both wall and ceiling mounting, with an optional L-type wall mount (PTMLTWM03) and CL01 camera controller available.

Is this camera TAA compliant for government procurement?

Yes, the TR535N is TAA Compliant.

Does Creation Networks install and support this camera?

Yes. As a nationwide AV integrator, Creation Networks provides design, installation, and support alongside the equipment — contact us at 888-230-3661 or sales@creationnetworks.net for a project quote.
