AVer PATUSBUE1 – UE1 USB Extender

What is the AVer UE1 USB extender?

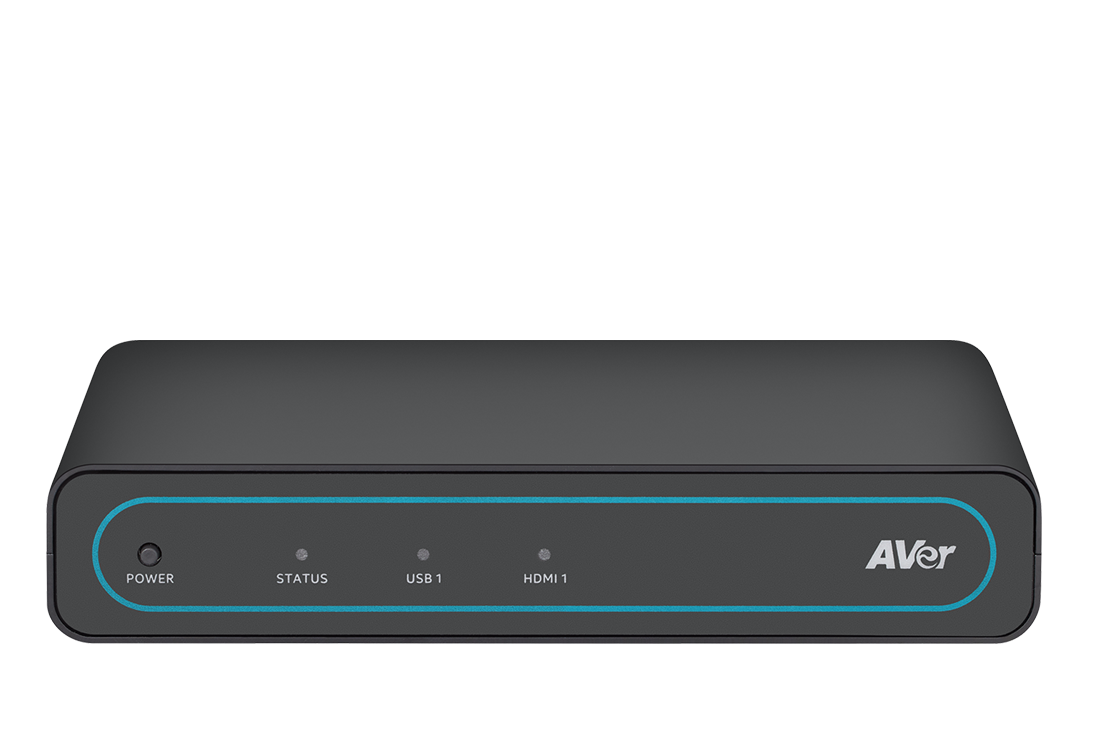

The AVer UE1 is a USB 3.0 extender kit built specifically for AVer PTZ cameras, letting integrators mount a camera up to 328 feet (100 meters) away from its host compute over standard CAT5e/CAT6/CAT7 cabling rather than being limited by USB cable-length restrictions. It's a plug-and-play device with no drivers to install, and it also delivers PoE++ power directly to the connected camera over the same cable run.

How does the AVer UE1 work?

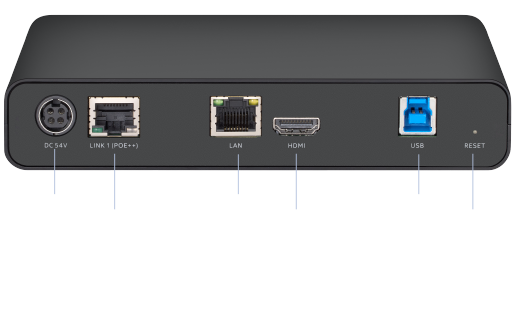

The UE1 pairs a local unit with a remote unit connected over standard Ethernet cabling, transmitting USB 3.0, HDMI, and control data up to 100 meters at up to 5 Gbps, well beyond the practical reach of a native USB 3.0 cable run. Because it leverages CAT cabling that's typically already run through a building for network infrastructure, it lets integrators place a PTZ camera far from the rack or credenza housing the compute and switching equipment, without pulling dedicated USB extension cable. The UE1 also delivers PoE++ power to the connected camera over the same link, so a single cable run handles data, video, and power together. It operates immediately on connection with no driver installation, and supports 4K output at up to 60fps for full-resolution PTZ camera feeds over the extended run.

What are the key features of the AVer UE1?

• 100-meter (328 ft) transmission distance — far beyond native USB 3.0 cable-length limits.
• Standard CAT5e/CAT6/CAT7 cabling — uses readily available network cable rather than specialty USB extension cable.
• PoE++ camera power — powers the connected PTZ camera over the same cable run.
• 4K 60fps output resolution — full-resolution video preserved over the extended distance.
• USB 3.0 protocol, up to 5 Gbps — high-bandwidth data transfer for demanding PTZ camera feeds.
• Plug-and-play, no drivers required — operates immediately upon connection.

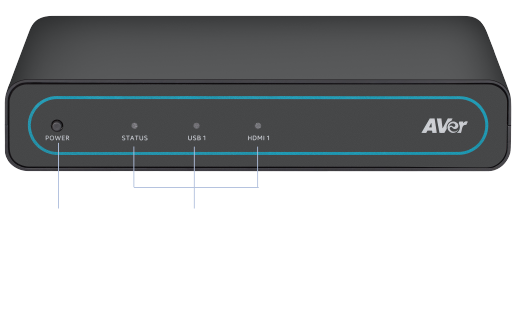

• Compact, unobtrusive design — integrates into racks or behind displays with minimal footprint.
• 5-year warranty — AVer's industry-leading AVerCare coverage.

Where is the AVer UE1 typically used?

• Large classrooms and auditoriums
• Conference rooms and meeting spaces
• Lecture capture installations
• Any install where a PTZ camera needs to sit farther from its compute than native USB allows

Technical Specifications

Frequently Asked Questions

What is the maximum transmission distance of the UE1?

The UE1 can transmit USB 3.0, HDMI, and control data up to 100 meters (328 feet) over a standard CAT5e, CAT6, or CAT7 cable.

Does the UE1 power the connected camera?

Yes. The UE1 supplies PoE++ power to the connected AVer PTZ camera over the same cable run used for data and video.

Do I need to install drivers to use the UE1?

No. The UE1 operates immediately upon connection with plug-and-play simplicity.

What cabling does the UE1 require?

Standard CAT5e, CAT6, or CAT7 network cabling — no specialty USB extension cable is needed.

Is the UE1 compatible with any USB camera, or only AVer cameras?

The UE1 is designed and validated specifically for AVer PTZ cameras.

Does Creation Networks install and support this extender?

Yes. As a nationwide AV integrator, Creation Networks provides design, installation, and support alongside the equipment — contact us at 888-230-3661 or sales@creationnetworks.net for a project quote.
