RF Venue RF-EXPLORER-PRO – Handheld 6 GHz RF Spectrum Analyzer

Product Overview

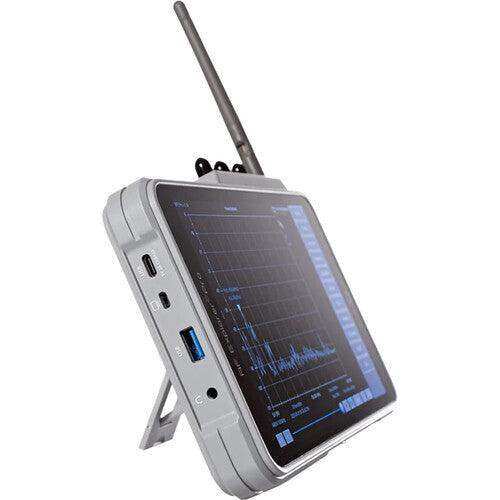

The RF Venue RF Explorer Pro is a third-generation, high-performance handheld RF spectrum analyzer covering frequencies up to 6 GHz, designed specifically for wireless audio system design, deployment, frequency coordination, and ongoing spectrum monitoring. AV integrators and wireless system designers use it to identify interference sources, coordinate frequencies across multiple wireless channels, test coaxial cable runs, and monitor the RF environment in real time at any venue. A permanent 6 GHz license and frequency coordination license are included in the box.

Product Description

The RF Explorer Pro is RF Venue's most capable spectrum analysis tool, built for professional AV system designers and installers who need a reliable, portable instrument for wireless audio work. It covers the full UHF band relevant to professional wireless microphones and IEM systems, plus the 2.4 GHz and 5 GHz WiFi bands, with analysis capabilities extending to 6 GHz for comprehensive spectrum evaluation in any environment.

A key differentiator is the built-in RF signal generator, which eliminates the need for an external tracking generator when testing coaxial cable runs. Connect the cable between the RFGEN OUT port and the INPUT port, enter the cable type and length, and the RF Explorer Pro displays the cable quality as a colored bar with a dB loss reading — a significant time saver for large installations. The built-in WiFi Analyzer mode displays 2.4 GHz and 5 GHz channel occupancy alongside UHF spectrum data, helping identify WiFi interference sources that can affect wireless microphone performance in dense IT environments.

Spectrum data can be saved, exported, and uploaded directly to RF Venue's free Wireless System Builder (WSB) tool for frequency coordination planning. The RF Explorer Pro replaces multiple instruments for wireless audio deployments: spectrum analyzer, frequency coordinator, cable tester, and WiFi analyzer in a single handheld unit. It includes a carry case, two articulated SMA antennas (UHF 400–900 MHz and UHF 900–6000 MHz), a USB-C cable and power supply, and activation vouchers for the 6 GHz and frequency coordination licenses.

Key Features

• Up to 6 GHz Coverage — Analyzes the full UHF wireless audio spectrum and extends to 6 GHz; permanent 6 GHz license included.
• Built-In RF Signal Generator — No external tracking generator needed for coaxial cable testing; test and measure dB loss directly on the unit.
• Built-In WiFi Analyzer — Dedicated 2.4 GHz and 5 GHz WiFi analysis mode; identifies WiFi interference impacting wireless audio systems.
• Frequency Coordination — Permanent frequency coordination license included; integrates with RF Venue's free Wireless System Builder tool.
• Spectrum Record / Save / Replay — Capture spectrum scans, save for documentation, and replay for comparison or analysis at a later time.

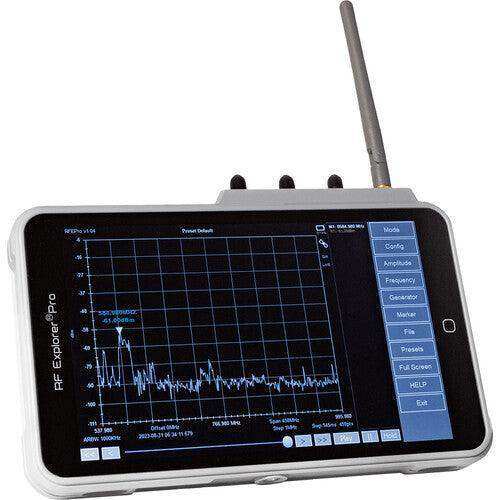

• Continuous Frequency Monitoring — Real-time spectrum display for live monitoring during events or system commissioning.
• Wireless System Builder Integration — Upload scan data directly to WSB for automated frequency coordination planning.

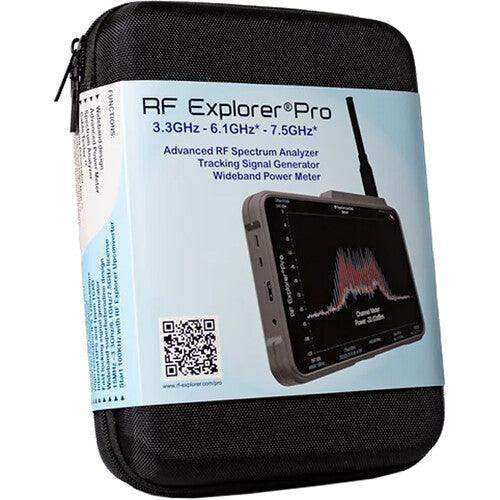

• Carry Case Included — Protective carry case, two articulated SMA antennas, USB-C cable and PSU included in the box.

Typical Applications

Suitable for:

• Pre-installation RF site surveys for commercial AV deployments
• Wireless audio system frequency coordination for house of worship, auditorium, and conference room installations
• Coaxial cable testing and verification during system commissioning
• Ongoing RF spectrum monitoring at broadcast studios and live event venues
• Identifying WiFi and DAS interference in enterprise AV environments

Technical Specifications

Frequently Asked Questions

Does the RF Explorer Pro require additional software licenses?

The permanent 6 GHz license and frequency coordination license are both included in the box at no additional charge. Activation vouchers are provided with the unit.

How does the built-in RF signal generator work for cable testing?

Connect one end of the coaxial cable to the RFGEN OUT (50Ω) jack and the other to the INPUT (50Ω) jack using SMA male to BNC female adapters (not included). Enter the cable type and length, and the unit displays cable quality as a colored bar and dB loss reading. This allows in-field verification of cable runs without a separate tracking generator.

Is the RF Explorer Pro compatible with RF Venue's free Wireless System Builder?

Yes. Scan data from the RF Explorer Pro uploads directly to the RF Venue Wireless System Builder tool for automated frequency coordination planning across multiple wireless audio channels.

Can it analyze WiFi interference affecting wireless microphone systems?

Yes. The built-in WiFi Analyzer mode displays 2.4 GHz and 5 GHz channel occupancy, helping identify WiFi access points and devices that may be contributing to interference in the wireless audio spectrum.

What is the difference between the RF Explorer Pro and the Spectrum Recorder?

The RF Explorer Pro is a handheld instrument designed for real-time walk tests, site surveys, cable testing, and frequency coordination work. The Spectrum Recorder is a network-connected device designed for time-based trend analysis — left on-site over hours, days, or weeks to capture intermittent interference that may not be present during a site visit.

Where can I purchase the RF Explorer Pro?

The RF Venue RF Explorer Pro is available through Creation Networks at creationnetworks.net. Our team can advise on deployment workflows and integration with your wireless audio systems.
