RF Venue DFINWD9 – White Wall Mount Diversity Fin and DISTRO9 HDR Pack

Product Overview

The RF Venue DFINWD9 is a complete wireless microphone antenna upgrade bundle pairing the white Diversity Fin antenna with a white wall mount bracket and the DISTRO9 HDR 9-channel antenna distribution system. This is the white permanently installed, wall-mount variant designed for fixed AV installations in light-colored interior environments. The Diversity Fin’s patented cross-polarized design captures wireless microphone signals regardless of transmitter orientation, and the DISTRO9 HDR distributes signal to up to 9 diversity channels with ETL-listed, high-dynamic-range performance.

Product Description

For permanent wireless microphone installations in rooms where white hardware is the standard — conference rooms, corporate boardrooms, houses of worship with white interiors, institutional facilities — the DFINWD9 provides the same high-performance RF system as the DFIND9 stand-mount bundle in a wall-mount form factor with a white finish.

The white Diversity Fin Antenna mounts to a wall via the included white wall mount bracket. Its patented cross-polarized design combines a vertical LPDA element and a horizontal dipole mounted at right angles, capturing wireless microphone signals from body pack transmitters in any orientation. This dual-polarization approach directly reduces the polarization mismatch dropouts that occur when performers move. The 470–928 MHz operating range covers the full UHF TV band and adjacent spectrum used by professional wireless audio worldwide.

The DISTRO9 HDR’s proprietary amplifier design provides over 60 dB of dynamic range with third-order intercept points of 15 dBm at VHF and 20+ dBm at UHF, superior to passive splitter-based distribution. Two zone antenna inputs allow coverage of large rooms or multiple spaces from a single rack unit. Cascade to a second DISTRO9 HDR for up to 17 channels in 2 RU. The ETL certification makes it compliant for government, educational, and institutional AV specifications.

The bundle includes 25-foot RG8X main cable runs, short interconnect cables for all distribution connections, and the DC power kit for powering wireless receivers through the coaxial connections.

Key Features

• White Wall Mount Configuration — Diversity Fin with white wall mount bracket for permanent installation in light-colored interior environments.
• Patented Cross-Polarized Design — LPDA + dipole hybrid captures vertical and horizontal polarization from a single wall-mounted antenna.
• 470–928 MHz Coverage — Full UHF TV band and adjacent spectrum support.
• DISTRO9 HDR 9-Channel Distribution — 1RU rackmount, over 60 dB dynamic range, two zone inputs, ETL listed.
• Cascade to 17 Channels — Connect a second DISTRO9 HDR for 17 channels in 2 RU from a single antenna.
• DC Power for Receivers — DC-KIT-D9 included for powering compatible wireless receivers via the distribution system.
• Complete Cabling Included — 25' and short RG8X interconnect cables included; ready for rack installation.
• ETL Listed — Compliant for government, institutional, and specification projects.

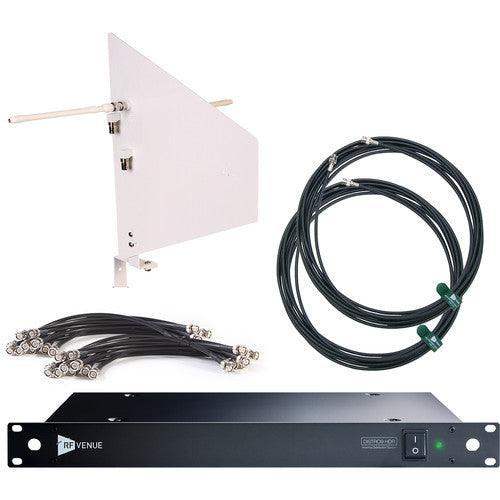

What's in the Box

• 1x Diversity Fin Antenna (White) with white wall mount bracket
• 1x DISTRO9 HDR 9-Channel Antenna Distribution System with AC power cord
• 2x 25' RG8X BNC coaxial cables
• 10x 1.5' RG8X BNC interconnect cables
• 10x 2' RG8X BNC interconnect cables
• 1x DC-KIT-D9 DC Power Distribution Kit for DISTRO9

Typical Applications

Suitable for:

• Permanently installed AV systems in conference rooms and boardrooms
• Houses of worship with white interior walls and permanent antenna infrastructure
• Educational facilities and training rooms
• Government and institutional facilities requiring ETL-listed components
• Corporate all-hands rooms and multi-purpose spaces
• Healthcare facilities and commercial meeting spaces

Technical Specifications

Frequently Asked Questions

What is the difference between DFINWD9, DFINBD9, and DFIND9?

All three bundles include the same Diversity Fin antenna and DISTRO9 HDR distribution system. The DFIND9 includes a black stand mount bracket for portable deployment. The DFINBD9 includes a black wall mount bracket for permanent installation in dark-interior spaces. The DFINWD9 includes a white wall mount bracket for permanent installation in light-interior spaces.

Is the Diversity Fin compatible with all UHF wireless microphone brands?

Yes. The antenna operates from 470–928 MHz and connects via standard 50-ohm BNC. It is compatible with any professional wireless microphone system operating in the UHF TV band, including Shure, Sennheiser, Audio-Technica, Lectrosonics, Sony, and others.

Can the system support more than 9 channels?

Yes. A second DISTRO9 HDR can be cascaded from any output to supply up to 17 wireless microphone channels from the same antenna in 2 RU of rack space.

Does this bundle include DC power distribution for wireless receivers?

Yes. The DC-KIT-D9 is included and allows the DISTRO9 HDR to power compatible wireless receivers directly through the coaxial cable connections, eliminating individual wall warts.

What is the ETL listing on the DISTRO9 HDR?

ETL listing (Electrical Testing Laboratories) is an independent safety certification that verifies the product meets North American electrical safety standards. It is a requirement for many government, educational, and institutional procurement specifications in the United States and Canada.

What warranty covers this product?

RF Venue products are covered by a manufacturer warranty. Contact Creation Networks at creationnetworks.net for warranty and support.
