RF Venue D-ARC – Diversity Architectural Antenna for Wireless Microphones

Product Overview

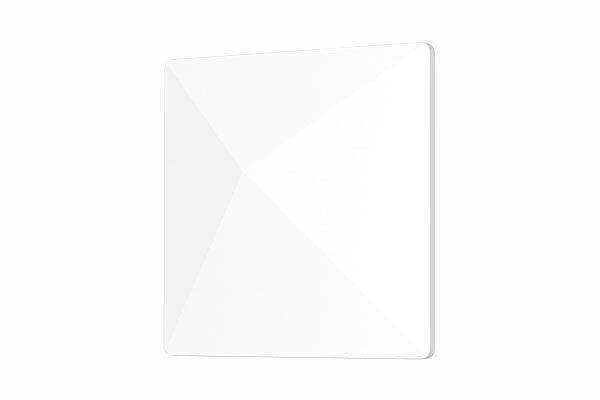

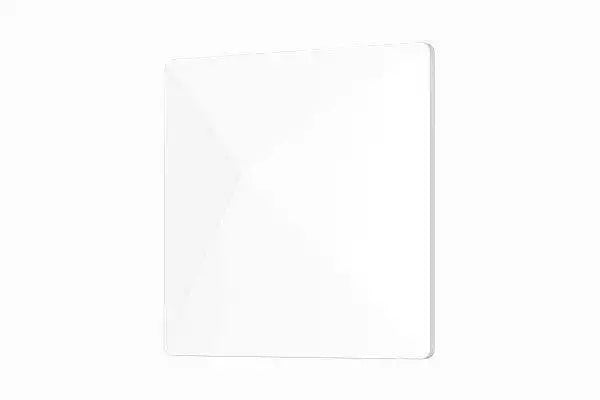

The RF Venue D-ARC is a white Diversity Architectural Antenna designed for permanent wireless microphone installations where both RF performance and aesthetic integration are priorities. Using a patent-pending dual-feed design, the D-ARC provides both A and B diversity antenna outputs from a single slim enclosure — replacing two traditional paddle antennas with one unit that mounts flush against any wall or ceiling and can be painted to match any interior surface. Coverage is a 140-degree conical pattern with typical range to 200 feet.

Product Description

Traditional wireless microphone antenna installations use two separate LPDA paddle antennas for A and B diversity. These antennas are visually prominent and difficult to integrate into finished architectural spaces. The D-ARC solves this with a single slim unit that contains both diversity antenna elements in a patent-pending dual-feed configuration, providing both A and B BNC outputs for connection to an antenna distribution system. The result is a single, nearly invisible antenna that installs in the same location where two paddle antennas would otherwise be required.

The D-ARC's enclosure is slim enough to mount directly on a wall or ceiling using its pre-drilled rear mounting plate, which connects to the front faceplate and is secured with screws. The installation process takes minutes. Once mounted, the antenna can be painted with any non-metallic paint to match the surrounding surface — a unique feature among wireless microphone antennas. The 140-degree conical coverage pattern makes the D-ARC effective when mounted at stage wings, the front of house, or on a ceiling aimed at the performance area. Typical range is 200 feet under standard RF conditions.

The D-ARC is compatible with all major UHF wireless microphone systems from Shure, Sennheiser, Sony, Audio-Technica, and other brands operating in the 470–616 MHz range. For the black finish version, see the D-ARCB. For complete antenna distribution packs including the DISTRO4, see the D-ARCDISTRO4. For packs with the DISTRO5 HDR, see the D-ARCD5.

Key Features

• Dual-Feed Diversity Design — Patent-pending dual-feed provides both A and B antenna outputs from a single unit, replacing two traditional paddle antennas.
• Slim Wall/Ceiling-Mount Profile — Low-profile enclosure mounts flush on walls or ceilings with a pre-drilled rear mounting plate; minimal visual footprint.
• Paintable Enclosure — Accepts any non-metallic paint for custom color matching to walls, ceilings, or any architectural surface.
• 140° Conical Coverage — Broad pattern effective at stage wings, FOH, or ceiling positions with typical range to 200 feet.
• Quick Installation — Rear mounting plate pre-drilled with multiple hole patterns; installs in minutes.
• White Finish — Suitable for light-colored interiors; black finish available as D-ARCB.
• Universal Compatibility — Works with all UHF wireless microphone receivers in the 470–616 MHz range.

Typical Applications

Suitable for:

• House of worship with permanent wireless microphone installations
• Conference room and boardroom wireless audio systems
• Auditorium and performing arts center productions
• Government and corporate meeting spaces
• Training room and multi-purpose room AV installations

Technical Specifications

Frequently Asked Questions

What is the difference between D-ARC and D-ARCB?

The D-ARC is the white finish version; the D-ARCB is functionally identical in black. Both mount the same way and provide the same RF performance. The choice is based on the installation environment's color scheme.

Does the D-ARC replace two antennas or one?

One D-ARC replaces two traditional LPDA paddle antennas. It provides both the A and B diversity antenna outputs required by a diversity receiver or antenna distribution system in a single installed unit.

Can the D-ARC be ceiling-mounted?

Yes. The D-ARC mounts on both walls and ceilings. For multi-zone ceiling installations, ceiling height and room layout should be evaluated to ensure appropriate coverage pattern overlap between zones.

What paint can be used on the D-ARC?

Any non-metallic paint is compatible. Avoid paints containing metallic particles (including metallic sheen or glitter), which can degrade RF performance by partially shielding the antenna elements.

What distribution system should be used with the D-ARC?

The D-ARC is compatible with the DISTRO4 (4-channel), DISTRO5 HDR (5-channel), and DISTRO9 HDR (9-channel). For a complete pack, see the D-ARCDISTRO4 (4-channel) or D-ARCD5 (5-channel) bundles.

Where can I purchase the D-ARC?

Available through Creation Networks at creationnetworks.net.
