Atlona 4K HDR HDBaseT Receiver for Opus Matrix Switchers - AT-OPUS-RX
Product Overview

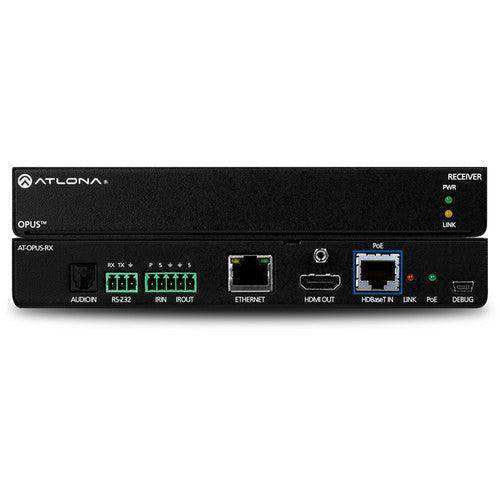

The Atlona AT-OPUS-RX is an Opus Series HDBaseT receiver designed for use with Atlona Opus HDMI-to-HDBaseT matrix switchers, delivering 4K/UHD HDMI output at 60 Hz with 4:4:4 chroma sampling and HDR support including HDR10, HLG, and Dolby Vision. This HDCP 2.2 compliant HDBaseT receiver supports 18 Gbps HDMI data rates and provides audio de-embedding via TOSLINK, RS-232, LAN pass-through, and IR control for complete endpoint management.
Product Description
The AT-OPUS-RX receives HDBaseT signals over Cat5e or Cat6/6a/7 cabling at distances up to 330 feet (100 meters) for 1080p and up to 295 feet (90 meters) for 4K/UHD content. It outputs HDMI 2.0 video at resolutions up to 4096x2160 at 60 Hz, with support for HDR10 and HLG at 60 Hz and Dolby Vision at 30 Hz. Audio is output via the HDMI port with full support for object-based formats including Dolby Atmos and DTS:X, and a TOSLINK port provides optical audio output for AV receivers and DSP systems. The unit is powered by compatible HDBaseT transmitters via PoE, removing the need for a local power supply at the display end. RS-232 and IR control ports enable bidirectional device control over the HDBaseT link, and a dedicated LAN port extends network connectivity to the display location.
Key Features
- 4K/UHD HDMI 2.0 Output at 60 Hz — Supports resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma and 18 Gbps bandwidth.
- HDR Support — Compatible with HDR10, HLG at 60 Hz, and Dolby Vision at 30 Hz for high dynamic range display installations.
- HDBaseT Extension up to 330 ft / 100 m — Receives signals over Cat5e, Cat6, Cat6a, or Cat7 cable with range up to 100 meters at 1080p.
- TOSLINK Audio De-Embedding — Optical audio output supports PCM 2Ch, Dolby Digital, and DTS 5.1 for separate audio distribution.
- PoE Powered — Receives operating power from compatible HDBaseT transmitters, eliminating the need for a local power supply.
- RS-232 and IR Control — Bidirectional control ports allow display and device management over the HDBaseT link.
- HDCP 2.2 Compliant — Full HDCP 2.2 support ensures compatibility with protected 4K content sources.
- LAN Port — Extends Ethernet connectivity to the display endpoint over the HDBaseT infrastructure.
Technical Specifications
| Specification | Value |
|---|---|
| SKU | AT-OPUS-RX |
| HDMI OUT | 1 x Type A, 19-pin female, locking |
| HDBaseT IN | 1 x RJ45 |
| TOSLINK | 1 x S/PDIF optical |
| LAN | 1 x RJ45 |
| RS-232 | 3-pin captive screw |
| IR IN/OUT | 2-pin captive screw |
| Bandwidth | 18 Gbps |
| HDMI Version | 2.0 |
| HDCP | Up to 2.2 |
| Max Video Resolution | 4096x2160 @ 60 Hz |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDR Formats | HDR10 & HLG @ 60 Hz; Dolby Vision @ 30 Hz |
| TOSLINK Audio | PCM 2Ch, Dolby Digital, DTS 5.1 |
| HDMI Audio | PCM 2Ch, LPCM 7.1, Dolby Atmos, DTS:X, TrueHD, DTS-HD MA |
| Extension Range (4K) | Cat5e: 295 ft (90 m); Cat6/6a/7: 330 ft (100 m) |
| Extension Range (1080p) | 330 ft (100 m) all cable types |
| Power | PoE from compatible transmitter |
| Operating Temperature | 0 to +40 °C (32 to 104 °F) |
| Storage Temperature | -40 to +70 °C (-40 to 158 °F) |
| Dimensions (H x W x D) | 1.02 x 6.86 x 3.51 in (26 x 174.2 x 89.16 mm) |
| Weight | 0.99 lbs (0.45 kg) |
| Certifications | CE, FCC |
