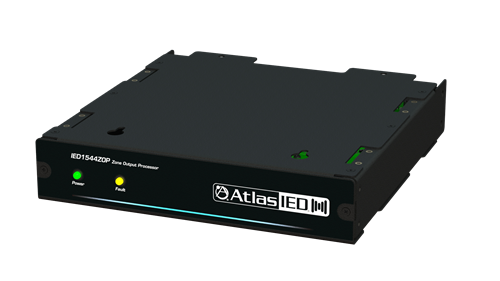

Atlas Sound IED1544ZOP – 4x4 Dante Smart Zone Output Processor
What is the Atlas Sound IED1544ZOP?
The IED1544ZOP is a 4x4 Smart Zone Output Processor that provides the network audio routing and zone DSP functions of a DNA2404D integrated network amplifier, without the onboard amplification — for integrating line-level analog devices with a Dante-based GLOBALCOM system.
How does the Atlas Sound IED1544ZOP work?
The ZOP acts as a GCK endpoint, taking Dante network audio input and applying equalization, level control, and AtlasIED's patented AlwaysHEAR ambient analysis to automatically keep output at the right level. It provides four line-level balanced analog audio outputs for driving external amplifiers or powered line arrays, and can optionally route the processed zone audio back out over the network as Dante digital audio. Eight logic inputs support triggering GCK actions, four of them supervised for detecting shorted or broken wires, and up to eight IED0540S ambient noise sensors (two per channel) feed automatic level adjustment. Redundant PoE with optional 12/24/48VDC auxiliary power, LED status indicators, and a fault relay round out the reliability features.
What are the key features of the Atlas Sound IED1544ZOP?
- Dante network audio — GLOBALCOM and third-party Dante device compatible.
- 4x4 line-level analog I/O — Bridges Dante network audio to conventional amplifiers or line arrays.
- AlwaysHEAR automatic level control — Ambient noise sensors adjust output in real time.
- 8 logic inputs, 4 supervised — Trigger actions and detect wiring faults.
- Redundant PoE — Plus optional 12/24/48VDC auxiliary power.
Where is the Atlas Sound IED1544ZOP typically used?
- Government space
- Multi-purpose room
Technical Specifications
| Network Audio | Dante, 4 channels |
| Audio I/O | 4 balanced line outputs |
| Frequency Response | ±0.3dB, 20Hz–20kHz |
| THD | <0.01%, 20Hz–20kHz |
| Logic Inputs | 4 standard + 4 supervised |
| Fault Relay | Form C |
| Warranty | 36 months |
Specifications sourced from AtlasIED. CobraNet version: IED1544ZOPC. See the Atlas Sound collection.
Frequently Asked Questions
What's the difference between this and a DNA2404D amplifier?
The ZOP provides the same network audio routing and DSP but outputs line-level analog signal rather than amplified speaker-level output — it's for driving external amplifiers or self-powered speakers.
Does it need ambient noise sensors to work?
No, they're optional; up to eight IED0540S sensors (sold separately) enable automatic level adjustment.
What warranty applies?
36 months from date of purchase.
