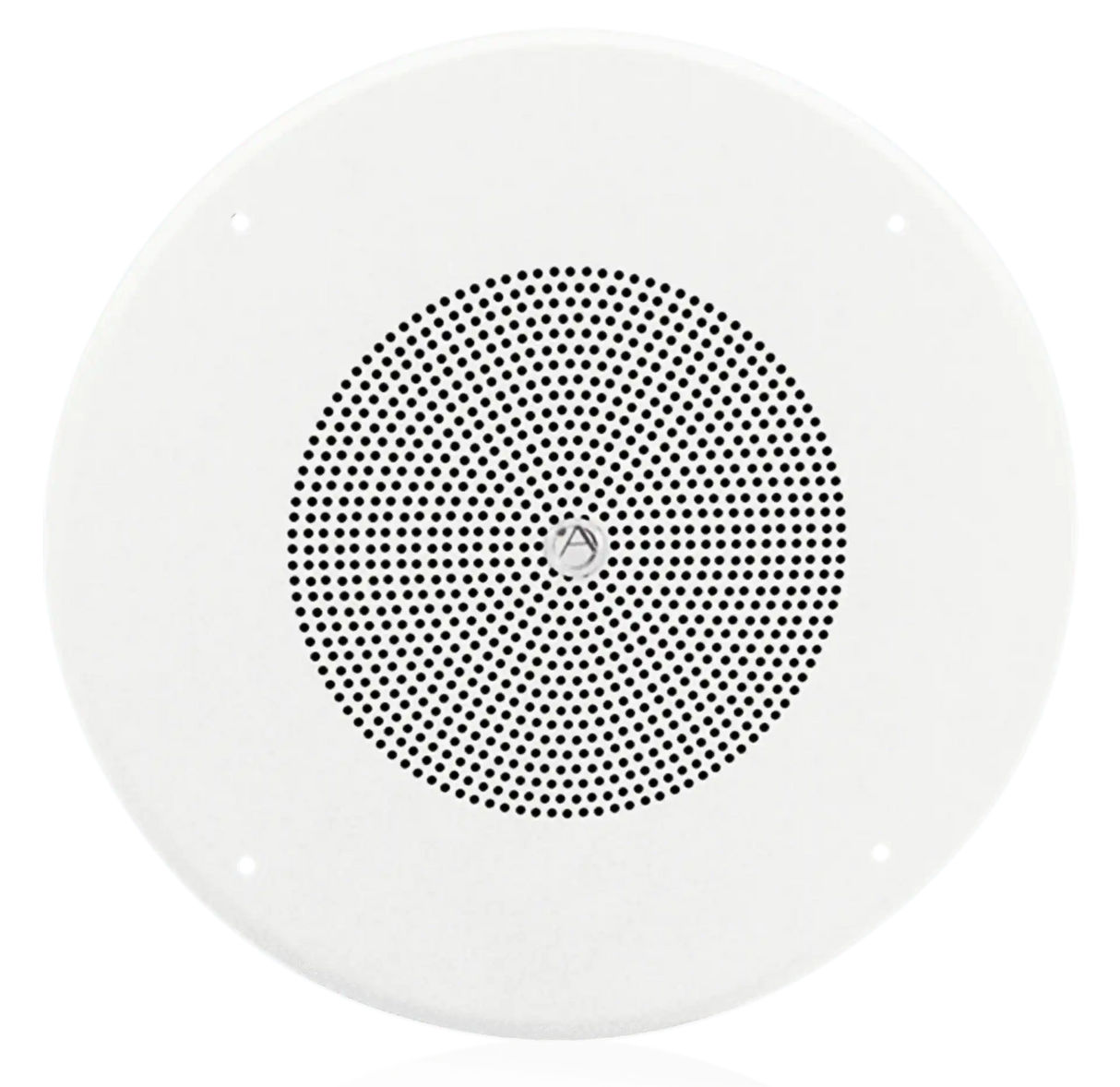

Atlas Sound HD70W – 8" In-Ceiling 70V 5W Speaker Assembly

Product Overview

The Atlas Sound HD70W is a complete 8-inch in-ceiling loudspeaker assembly designed for commercial paging and background music (BGM) systems operating on 70.7V distributed audio. The package ships factory-assembled, combining a treated-paper cone speaker, a 70V transformer, and a 62-8 style screw-type grille baffle — ready to drop into a ceiling with no additional hardware sourcing required. It is well suited for retail, hospitality, corporate, and institutional environments where a cost-effective, all-in-one solution is needed.

Product Description

The HD70W integrates a conventional cone loudspeaker with a 1-inch diameter voice coil, delivering reliable voice and music reproduction across a frequency range of 100 Hz to 10 kHz. The factory-mounted 70.7V transformer exhibits less than 1.5 dB of insertion loss and maintains a frequency response of ±1.5 dB across that same range, preserving audio quality throughout the 70V distribution line. Four power tap settings — 0.5, 1, 2, and 5 watts — provide installer flexibility for matching system power budgets across different zone sizes. With a 97 dB peak sensitivity and 105-degree dispersion angle, the HD70W achieves wide coverage from a single installation point, reducing the number of speakers required per zone. The speaker cone is constructed from treated paper for consistent frequency response and durability in commercial environments. The 62-8 baffle is manufactured from 24-gauge cold-rolled steel (CRS) and finished in textured white epoxy, providing a clean aesthetic that blends with standard commercial tile ceilings. All components arrive pre-mounted on the baffle, eliminating assembly steps on the job site. The unit is CUL listed and optionally available with hydrophobic treatment for humid or semi-exposed environments.

Key Features

• Factory-Assembled Package — Speaker, 70V transformer, and 62-8 baffle ship ready to install, saving labor time on site.
• Four Power Taps (0.5, 1, 2, 5W) — Gives installers precise control over zone power allocation in 70V distributed systems.
• 97 dB Peak Sensitivity — Delivers adequate SPL at lower amplifier power, reducing load on the system.
• 105° Dispersion Angle — Wide coverage pattern minimizes the number of speakers needed per area.
• Low Transformer Insertion Loss (<1.5 dB) — Maintains audio fidelity through the 70V distribution transformer.
• Treated Paper Cone — Provides consistent frequency response for voice and music reproduction.
• Textured White Epoxy Finish — 24-gauge CRS baffle blends with standard commercial ceiling tiles.
• CUL Listed — Meets safety certification requirements for commercial installations.

Technical Specifications
