Atlas Sound FA97-6 – Recessed Enclosure with Dog Legs for 6" Strategy XDeep

Product Overview

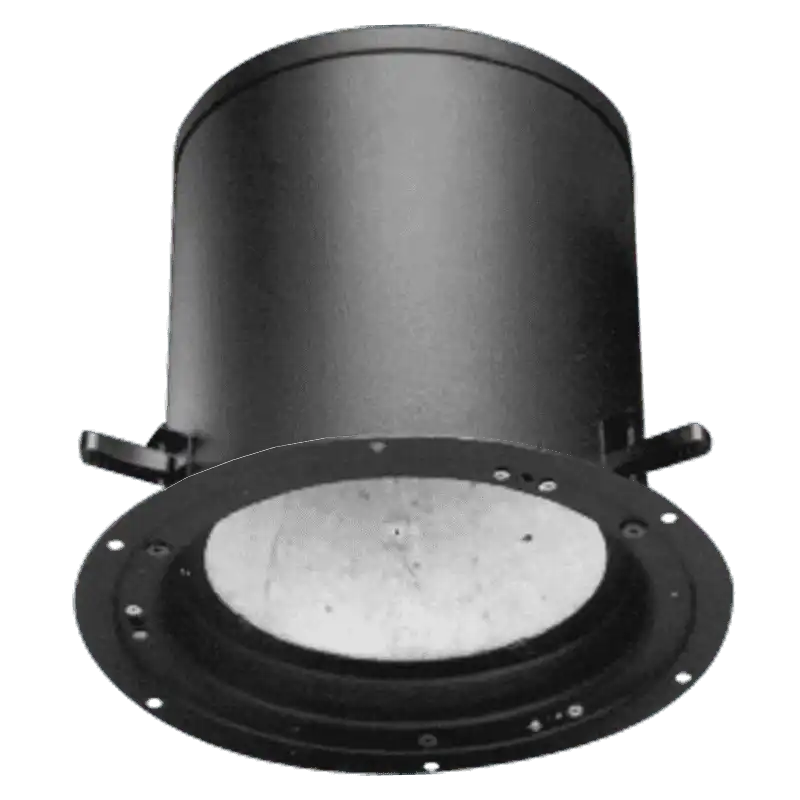

The Atlas Sound FA97-6 is a recessed back-box enclosure designed specifically for 6-inch Strategy Series XDeep in-ceiling loudspeakers. It installs in plaster, drywall, or suspended tile ceilings up to 2-3/8 inches thick using three rotating clamps that lock into position with a standard screwdriver. Listed to UL1480 and UL2043, the FA97-6 is approved for use in both general signaling and plenum ceiling applications, making it a code-compliant choice for commercial AV installations.

Product Description

The FA97-6 front-loads AtlasIED Strategy Series 6-inch speakers, including models FA136 and FA116. By mounting the speaker directly to the enclosure, the design eliminates load-bearing demands on the grille — a practical advantage that speeds installation and protects the grille from structural stress. The recessed lip provides a sealed acoustic interface between speaker and enclosure, contributing to the low-frequency extension that defines the XDeep line. Flip-tab dog ears adjust to accommodate ceiling thicknesses ranging up to 2-3/8 inches, making this enclosure adaptable to varied construction conditions. Tubular spring clips on the flanged face accept the ribbed weld studs found on Strategy I grilles, enabling push-on grille installation that leaves a clean, hardware-free finished appearance. The acoustically treated interior helps maximize low-frequency performance by providing the additional volume necessary for extended bass response. With a depth of 7-5/8 inches and an opening diameter of 7 inches, this enclosure delivers the acoustic loading required to fully realize the potential of high-performance coaxial Strategy Series drivers in demanding commercial environments.

Key Features

• Acoustically Treated Interior — Fiberglass lining controls resonance and extends low-frequency response.
• Flip-Tab Dog Ears — Accommodate ceiling installations up to 2-3/8 inches thick without additional hardware.
• Recessed Lip Sealed Mounting — Speaker mounts directly to enclosure for a sealed acoustic system, removing grille load requirements.
• Tubular Spring Clips — Accept ribbed weld studs on Strategy I grilles for fast, hardware-free grille attachment.
• UL1480 and UL2043 Listed — Approved for general signaling and plenum ceiling environments.
• XDeep Depth (7-5/8") — Extended enclosure volume supports maximum bass performance from 6-inch coaxial drivers.
