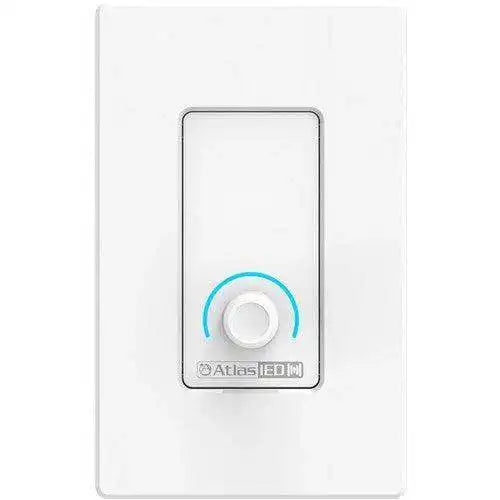

Atlas Sound C-V-US – Atmosphere Volume Controller Wall Plate (White)

Product Overview

The Atlas Sound C-V-US is a white Atmosphere series wall plate volume controller providing zone-level adjustment, mute control, and live signal metering for single-zone distributed audio systems. Designed for the AtlasIED Atmosphere platform, this plug-and-play accessory installs in a standard gang box and connects to an Atmosphere processor via the accessory bus, enabling end users to control audio without touching the head-end equipment. The C-V-US suits conference rooms, classrooms, retail zones, hospitality spaces, and any commercial installation where individual room volume control is needed in a clean, professional white finish.

Product Description

The Atmosphere accessory ecosystem is built around a daisy-chainable bus architecture supporting up to eight devices per port, transmitting audio and data reliably over cable runs up to 1,000 feet per accessory port. The C-V-US integrates into this bus as a true plug-and-play device—no complex configuration or custom programming is required at the controller level. A single-click assigns the device to its designated zone or source. The rotary encoder provides familiar, intuitive volume control; pressing the encoder activates mute. The customizable RGB LED ring surrounding the encoder delivers real-time visual confirmation of mute status, volume level, and fader position, with color mapping adjustable through the Atmosphere processor software. A live signal level meter is integrated into the wall plate, enabling technicians and users to verify signal presence without accessing the head-end rack. The white decora-style finish blends with standard commercial wall plates and light-colored interior schemes. The unit mounts into a standard single-gang electrical box. The C-V-US is the white variant; the C-V-US-B provides the same functionality in black.

Key Features

• Single-Zone Volume and Mute Control — Rotary encoder with push-to-mute for straightforward end-user operation.
• Customizable RGB LED Ring — Real-time visual feedback for mute, volume, and fader; color configurable in Atmosphere software.
• Live Signal Level Meter — On-wall signal confirmation without accessing the equipment rack.
• Single-Click Configuration — Zone or source assignment with no complex programming required.
• Atmosphere Accessory Bus — Up to 8 devices per port, reliable audio and data over 1,000 ft.
• Plug-and-Play Installation — No drivers or custom code; connects directly to the Atmosphere processor accessory port.
• Standard Gang Box Mount — Compatible with existing single-gang electrical boxes in commercial buildings.
• White Finish — Matches standard commercial decora wall plates and light interior color schemes.
