Atlas Sound AA35G – 35W 3-Input Mixer Amplifier Global Power Supply
Product Overview
The AtlasIED AA35G is a 35-watt, 3-input mixer amplifier designed for distributed commercial paging, background music (BGM), and music-on-hold (MOH) applications. It supports 70V, 100V, and 8Ω outputs and operates on a universal power supply, making it suitable for domestic and international installations. Long-tail applications include commercial mixer amplifier for paging and BGM, 70V mixer amplifier for small business, and music-on-hold amplifier with microphone input.
Product Description

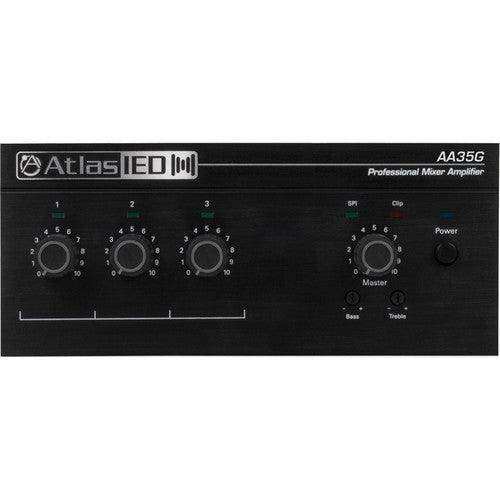

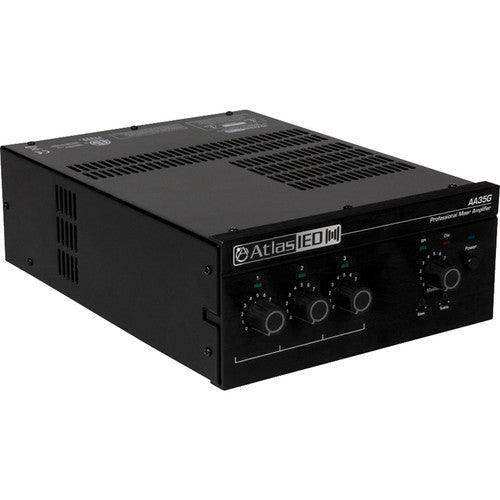

The AA35G integrates three input channels — one balanced mic/line input and two stereo line inputs (including RCA) — into a single tabletop unit that drives distributed speaker systems at 70.7V, 100V, or 8Ω. Each input channel includes a dedicated front-panel volume control, and bass and treble tone controls allow the installer to adjust overall system voicing without external EQ. Priority muting via VOX or external switch contact ensures paging announcements from the microphone input automatically suppress background music, which is standard practice in retail, hospitality, and office environments. A DIP-switch selectable matrix routes any or all input sources to a secondary Zone 2 output (1W/600Ω), making it straightforward to configure music-on-hold or a separate paging zone from a single device. The universal AC power supply accepts 100–240 VAC at 50/60 Hz without any manual adjustment, eliminating the need for voltage selectors when deploying in international locations. Signal presence LED indicators on the front panel confirm active audio on each input channel, simplifying troubleshooting during commissioning. Convection cooling with no fan means the unit operates silently, an important consideration in quiet office and conference environments. An optional rack mount kit (model AAGRMK2) is available for installations where the unit needs to be integrated into a standard 19" rack. The AA35G meets 60065 and RoHS 2006 compliance requirements.
Key Features
- 35W Output Power — Drives 70.7V, 100V, or 8Ω distributed speaker systems from a single unit.
- 3-Input Channels — Balanced mic/line input, dual RCA stereo music inputs, and a telco (MOH) input with individual front-panel volume controls.
- Priority Muting (VOX or Switch) — Microphone input automatically mutes background music for paging announcements.

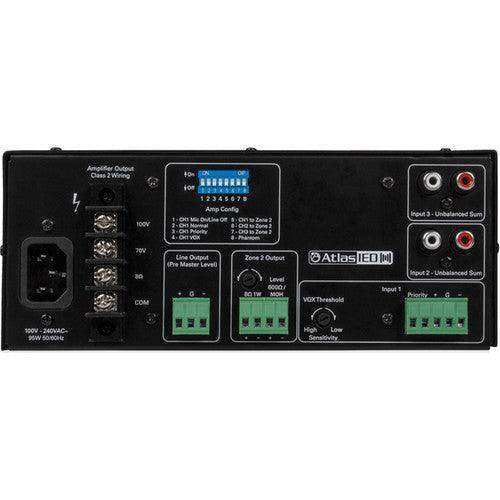

- Zone 2 / MOH Output — DIP-switch configurable secondary output (1W/600Ω) for music-on-hold or a separate audio zone.
- Universal Power Supply — Accepts 100–240 VAC, 50/60 Hz for use across North American and international deployments.
- Bass & Treble Controls — Front-panel tone controls allow in-situ system voicing without external EQ equipment.
- Signal Presence LEDs — Visual indicators on each input channel confirm active audio for fast commissioning and troubleshooting.
- Convection Cooling — Fanless design ensures silent operation in noise-sensitive commercial environments.
- Rack-Mountable (Optional) — Compatible with the AAGRMK2 rack mount kit for 19" rack installation.
Typical Applications
- Conference room
- Boardroom
- Commercial meeting space
- Multi-purpose room
- Training room
- All-hands room
- Government space
Technical Specifications
| Specification | Value |
|---|---|
| Model | AA35G |
| Output Power | 35W (1 kHz, 0.5% THD) |
| Output Impedance | 8Ω / 70V / 100V |
| Number of Inputs | 3 (Mic, Line, RCA) |
| Frequency Response | 50 Hz – 20 kHz (±1 dB) |
| Mic Input Sensitivity | 3 mV |
| Line Input Sensitivity | 800 mV |
| RCA Input Sensitivity | 400 mV |
| Mic Input Impedance | 2.2 kΩ |
| Line Input Impedance | 10 kΩ |
| SNR (Mic) | >58 dB |
| SNR (Line) | >60 dB |
| THD+N | <0.5% at rated power, 1 kHz |
| Crosstalk | -82 dB (1 kHz) |
| Phantom Power | 15 VDC |
| AC Input | 100–240 VAC, 50/60 Hz |
| Power Consumption | 150W |
| Cooling | Convection (fanless) |
| Operating Temperature | 68–104°F / 20–40°C |
| Dimensions (W x H x D) | 8.25" x 3.85" x 12.25" (210 x 98 x 311 mm) |
| Weight | 8 lbs 2 oz (3.7 kg) |
| Safety Compliance | 60065, RoHS 2006 |
| Warranty | 36 months |
Frequently Asked Questions
Q: Can the AA35G drive a 70V speaker system?
A: Yes. The AA35G provides 70.7V, 100V, and 8Ω outputs, making it directly compatible with standard distributed 70-volt speaker systems.
Q: How does priority muting work on the AA35G?
A: The microphone input supports priority muting via VOX (voice-activated) or an external switch contact. When activated, background music from line inputs is suppressed so the paging announcement is heard clearly.
Q: What is the Zone 2 output used for?
A: The Zone 2 output (1W/600Ω) is configurable via DIP switch to carry any combination of the input sources. It is commonly used for music-on-hold on a telephone system or to feed a separate background audio zone.
Q: Does the AA35G require a separate power supply for international use?
A: No. The universal power supply accepts 100–240 VAC at 50/60 Hz without manual adjustment, supporting both North American and international installations.
Q: Can the AA35G be rack-mounted?
A: Yes. The optional AAGRMK2 rack mount kit supports installation of one or two AA35G units in a standard 19" rack enclosure.
Q: Does the amplifier have any fan noise?
A: No. The AA35G uses convection cooling only, with no fan, making it suitable for noise-sensitive spaces such as offices and conference rooms.
Q: What connectors are used for inputs and outputs?
A: Inputs use Phoenix (5.5mm) and RCA connectors. The mic input accepts a standard balanced mic connector. Speaker outputs are via Phoenix-style terminal blocks.
