ASHLY TRA-4075 Convection-Cool Power Amplifier w/ Xfmr Iso 4x75W @ 4/8 Ohm, 25V, 70V

Ashly SKU: TRA-4075
No reviews
Price:
$1,349.00 $1,699.00

Description

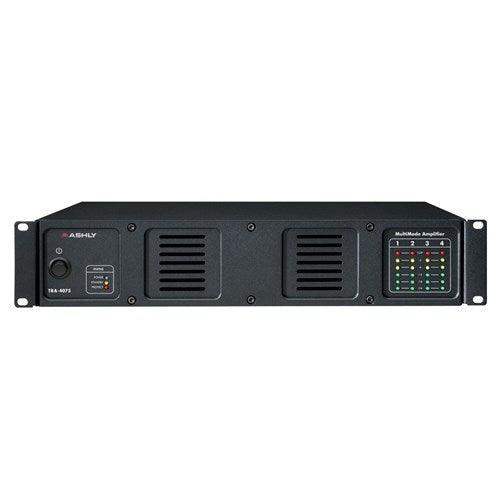

The Ashly TRA-4075 is a 4-channel convection-cooled rackmount P.A. or installation power amplifier housed in a rugged 2-RU metal chassis. The unit offers an output of 40 Watts per channel at 8 Ohms, and is designed to drive 4- and 8-Ohm loads and transformer-coupled 70V and 100V lines simultaneously. The coupling transformers are internally mounted.

The TRA-4075 incorporates a switch-mode power supply and Class-D amplifier circuitry, providing a power-efficient solution. The low-noise unit features a switchable high-pass filter and selectable gain sensitivity, turn-on delay DIP switches with up to 8 seconds of delay available, and rear-mounted set-and-forget gain controls.

The TRA-4075 is equipped with an internally switchable 120/240V power supply and extensive protection circuitry along with standard Euroblock inputs and screw terminal outputs.
  • Convection cooling
  • 2 RU configuration
  • Extremely low ambient noise
  • Internally-mounted constant voltage transformers
  • Extensive protection circuitry including output overcurrent protection, DC output protection, main supply rail overvoltage protection, in-rush limiting and mains fuse
  • 6-Step signal level and clip LEDs

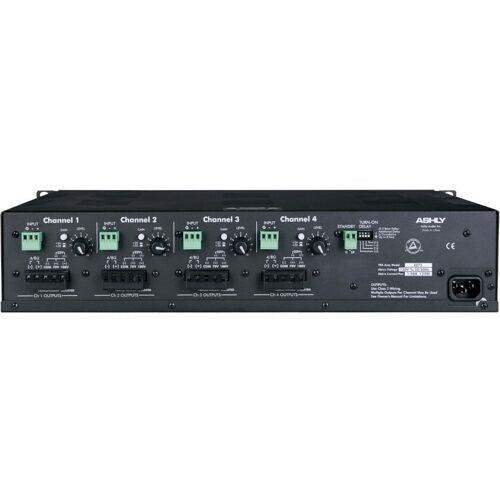

  • Rear panel level attenuators for each channel
  • Rear panel Gain Switch: +36 dB or +26dB input sensitivity
  • Euroblock inputs/outputs
  • Selectable input sensitivity (voltage gain)
  • Remote stand-by control
  • Adjustable turn-on delay up to eight seconds
  • Safety/Compliance: TUV, CE, FCC, RoHS
  • 5-Year Warranty
General Information
Manufacturer Ashly Audio, Inc
Manufacturer Part Number TRA-4075
Manufacturer Website Address http://www.ashly.com
Brand Name Ashly
Product Series TRA
Product Model TRA-4075
Product Name TRA-4075 Amplifier
Product Type Amplifier
Technical Information
Minimum Frequency Response 20 Hz
Maximum Frequency Response 20 kHz
Impedance 8 Ohm
Classification D
Audio
Audio Channels 4
RMS Output Power 160 W
Power Description
Input Voltage 120 V AC
Operating Power Consumption 125 W
Miscellaneous
Environmentally Friendly Yes
Environmental Certification RoHS
Country of Origin China
Warranty
Limited Warranty 5 Year
