ASHLY KLR-3200 Power Amp 2 x (1, 600W @ 2) (1, 100W @ 4) (650W @ 8) Ohms (800W @ 70V)

Product Overview

The Ashly KLR-3200 is a 2-channel Class-H commercial amplifier delivering 1,600W per channel at 2 ohms, 1,100W at 4 ohms, and 650W at 8 ohms, with a 3,200W bridged mono rating at 4 ohms. Notably, the KLR-3200 is the only model in the KLR series with 70V constant-voltage capability, delivering 800W per channel at 70V for commercial distributed paging and BGM applications that also require high-power low-impedance performance. This dual capability makes the KLR-3200 a flexible choice for commercial AV installations where both 70V distribution zones and direct-drive loudspeaker applications exist in the same system.

Product Description

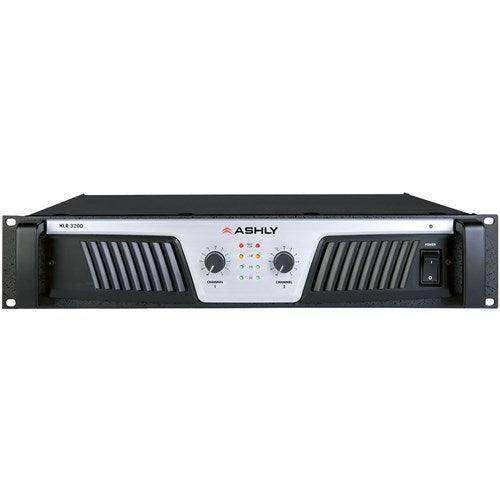

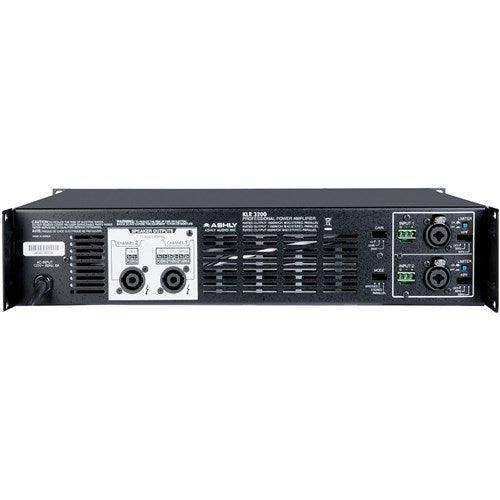

The Ashly KLR-3200 uses a 2-step Class-H output topology and a switch-mode power supply to maintain efficiency at high continuous power levels. The SNR exceeds 110 dB, providing a low background noise floor in installed sound environments. As the only KLR model with 70V constant-voltage operation, the KLR-3200 addresses installations where a single amplifier must handle both a distributed 70V paging or BGM circuit and direct-drive loudspeaker loads—reducing rack space and cost in mixed-topology systems. Balanced inputs accept combo XLR/TRS connectors and 3-pin Euroblock terminations. Neutrik speakON output connectors provide locking load connections for both touring and permanent installation. Front-panel controls include per-channel attenuators, a 3-position gain switch, a 3-position mode switch (stereo, bridged mono, or parallel mono), and a 3-position 12 dB/octave high-pass filter switchable between 30 Hz, 50 Hz, and off. An on/off limiter switch provides output protection. Cooling is front-to-rear forced air with removable dust filters. Front handles are removable for flush permanent rack installation. Optional KLR-LK2 locking knobs provide front-panel security in accessible installations. The KLR-3200 is TAA compliant and certified to cCSAus, CE, FCC, and RoHS standards.

Key Features

• 70V Constant-Voltage Output — The only KLR model with 70V capability; 800W per channel at 70V for distributed commercial paging and BGM systems.
• 2-Step Class-H Output Topology — Efficient sustained power delivery at high output levels.
• 1,600W Per Channel at 2 Ohms — High sustained output for line arrays, subwoofer arrays, and demanding speaker systems.
• 3,200W Bridged Mono at 4 Ohms — Single-amplifier bridged mono for high-output mono applications.
• SNR >110 dB — Low noise floor for installed sound in acoustically controlled environments.
• 3-Position Mode Switch — Stereo, bridged mono, or parallel mono without rewiring.
• 3-Position 12 dB/Oct High-Pass Filter — Switchable 30 Hz, 50 Hz, or off.
• Combo XLR/TRS + Euroblock Inputs — Accommodates professional and installation wiring.
• Neutrik speakON Output Connectors — Locking speaker output connectors.
• Forced-Air Cooling with Removable Filters — Front-to-rear airflow with cleanable dust filters.
• TAA Compliant — Meets Trade Agreements Act requirements for institutional procurement.

Typical Applications

• Auditorium
• House of worship
• Multi-purpose room
• All-hands room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

Is the KLR-3200 the only KLR model with 70V capability?

Yes. The KLR-3200 is the only model in the KLR series that supports 70V constant-voltage distribution, with 800W per channel at 70V. The KLR-2000, KLR-4000, and KLR-5000 do not support 70V operation.

What is the 70V output power rating of the KLR-3200?

The KLR-3200 delivers 800W per channel at 70V constant voltage, making it suitable for commercial paging and BGM distribution over 70V speaker systems.

How does the KLR-3200 compare to the TRA series for 70V distribution?

Both the KLR-3200 and TRA series provide 70V output, but they serve different power levels. The TRA-2150 and TRA-4150 provide 150W per channel, while the KLR-3200 provides 800W per channel at 70V—suited for large-scale high-power 70V distributed systems. The TRA series is convection-cooled (fanless); the KLR-3200 uses forced-air cooling.

Can the KLR-3200 run bridged mono?

Yes. The KLR-3200 delivers 3,200W bridged mono into a 4-ohm load, suitable for high-output mono applications such as large subwoofer cabinets or primary speakers in high-power systems.

Is the KLR-3200 TAA compliant for government procurement?

Yes. The KLR-3200 is TAA compliant and certified to cCSAus, CE, FCC, and RoHS standards, meeting procurement requirements for government facilities and institutional AV projects.
