APC Smart-UPS On-Line SRT6KRMXLT-5KTF 6000VA Rackmount 208V to 120V Step-Down Transformer
APC Smart-UPS On-Line SRT6KRMXLT-5KTF 6000VA Rackmount 208V to 120V Step-Down Transformer is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
APC Smart-UPS On-Line SRT6KRMXLT-5KTF 6000VA Rackmount 208V to 120V...
Product Overview
The APC Smart-UPS On-Line SRT6KRMXLT-5KTF is a 6000VA / 5400W double-conversion on-line UPS in a rackmount chassis with 208/240V input and an integrated 5kVA step-down transformer providing 120V output, delivering high-capacity on-line protection with built-in voltage conversion for large commercial AV and IT rack deployments on 208/240V distribution requiring 120V equipment power. This unit provides more 120V capacity headroom than the SRT5KRMXLT-5KTF, appropriate for racks with higher total 120V equipment loads on 208/240V circuits.
Product Description
At 6000VA / 5400W input, the SRT6KRMXLT-5KTF handles the largest commercial AV rack configurations in 208V facilities where 120V equipment requires integrated voltage conversion — large video processing racks, high-density AV over IP systems, broadcast-grade equipment on 208V circuits, and server-heavy configurations where the combined 120V load approaches the 5kVA transformer capacity. Double-conversion on-line topology provides zero transfer time and complete isolation from utility power quality events for all connected 120V equipment. External APC SRT battery packs extend runtime. SmartSlot accepts optional NMC for SNMP and enterprise monitoring.
Key Features
- 6000VA / 5400W Input with Integrated 5kVA Step-Down Transformer — Highest single-transformer rackmount capacity.
- Double-Conversion On-Line Topology — Zero transfer time and complete isolation.
- 208/240V Input / 120V Output — For large 208V racks with high 120V equipment loads.
- Rackmount Form Factor — Standard 19-inch rack installation.

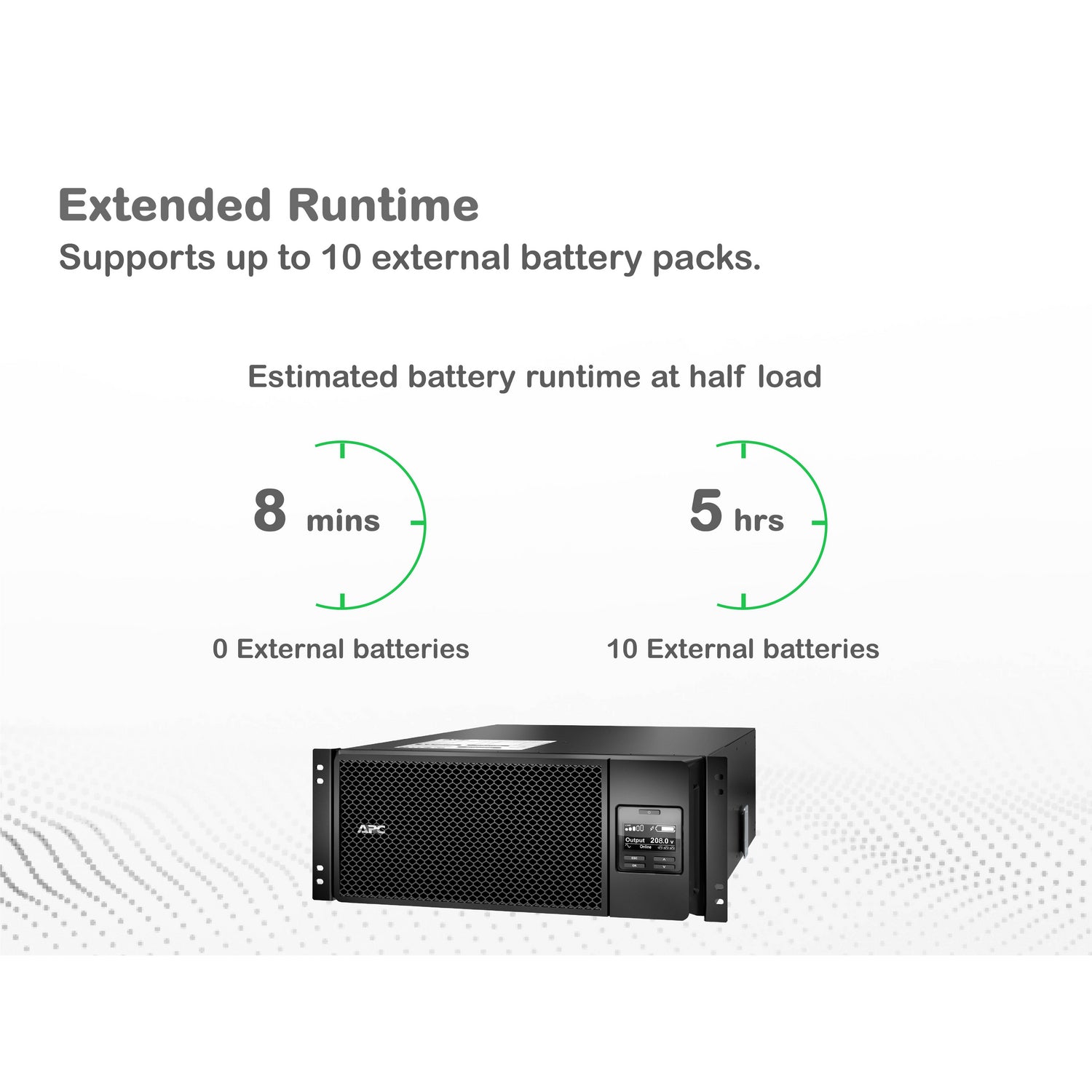

- Scalable Runtime — External APC SRT battery packs.

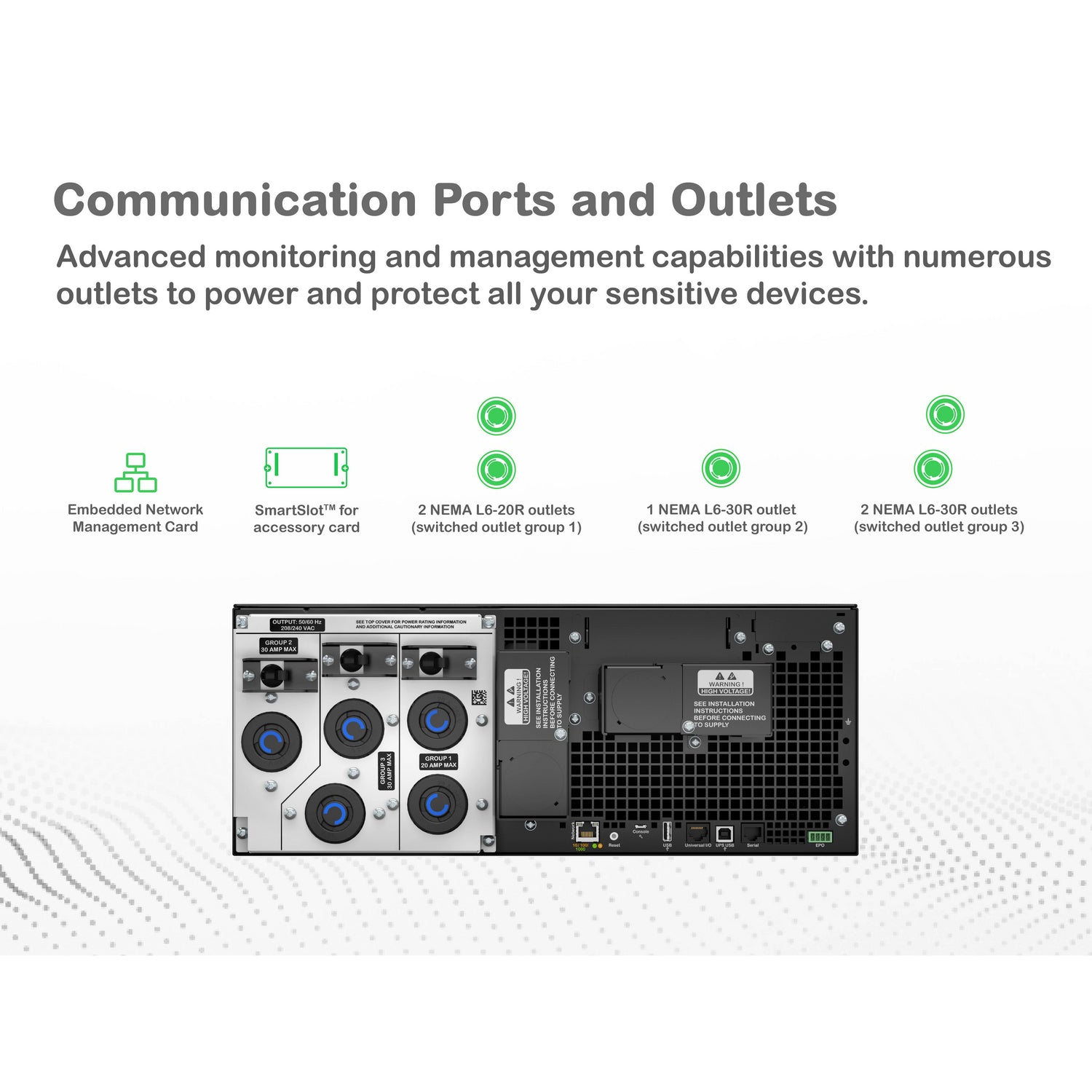

- SmartSlot — Optional NMC for enterprise monitoring.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SRT6KRMXLT-5KTF |
| Capacity (Input) | 6000VA / 5400W |
| Step-Down Transformer | 5kVA, 208/240V to 120V |
| Topology | Double-Conversion On-Line |
| Input Voltage | 208/240V |
| Output Voltage | 120V |

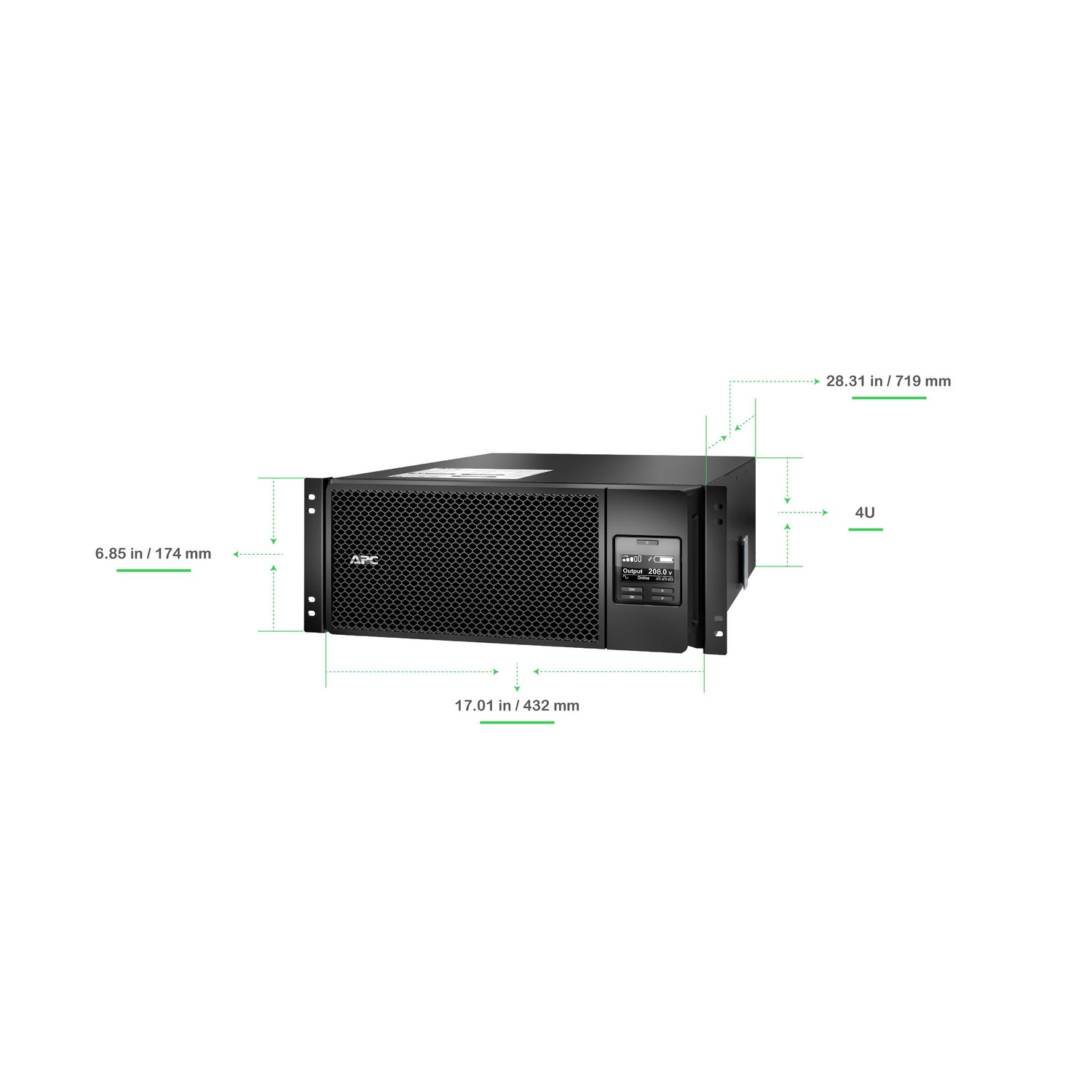

| Form Factor | Rackmount |
| SmartSlot | Yes (optional NMC) |
| Warranty | 2 Years |
