Allied Telesis AT-SPSX/E – TAA 1000BASE-SX SFP Extended Temperature Transceiver
Allied Telesis AT-SPSX/E – TAA 1000BASE-SX SFP Extended Temperature Transceiver is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Allied Telesis AT-SPSX/E – TAA 1000BASE-SX SFP Extended Temperature...
Overview

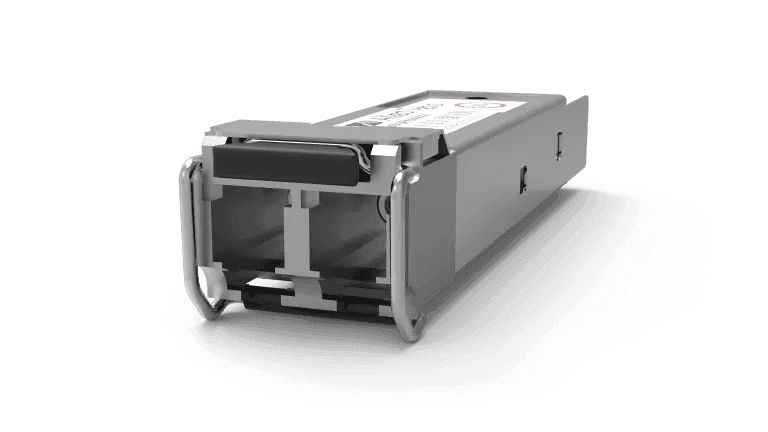

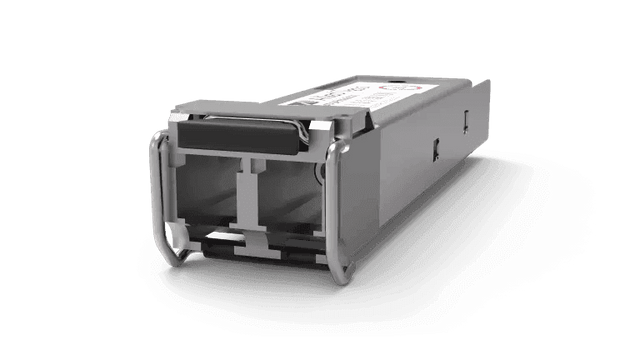

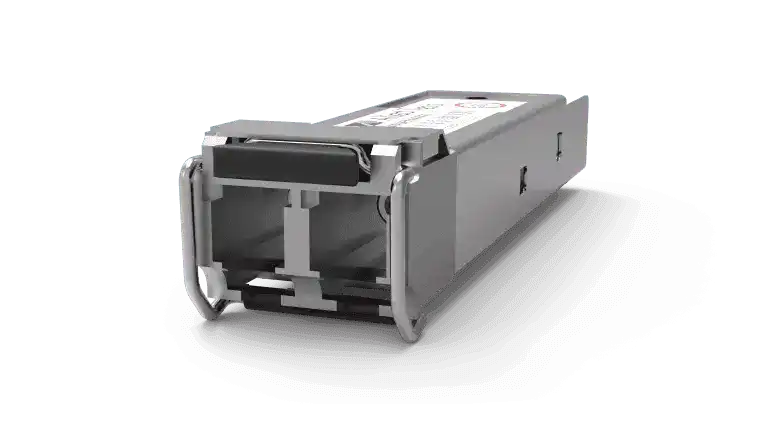

The Allied Telesis AT-SPSX/E is a TAA-compliant 1000BASE-SX SFP transceiver built for Gigabit Ethernet links over multimode fiber in temperature-extreme environments. Its extended operating temperature range of -40°C to +85°C makes it appropriate for industrial automation, outdoor enclosures, and transportation infrastructure where standard commercial optics cannot be used. Using an LC duplex connector and 850 nm wavelength, it supports link distances of 220 meters on 62.5/125 µm multimode fiber and 550 meters on 50/125 µm multimode fiber. Hot-swap capability allows transceiver replacement in the field without shutting down the host equipment.
Description
The AT-SPSX/E delivers 1 Gbps throughput over multimode fiber and fits any SFP slot conforming to the SFP Multi-Source Agreement (MSA), ensuring broad compatibility across switching and routing platforms from Allied Telesis and other vendors. TAA compliance satisfies procurement requirements for US federal agencies and other government or institutional buyers subject to the Trade Agreements Act. The -40°C to +85°C extended temperature rating covers the full range of conditions found in industrial, outdoor, and vehicular network installations where commercial SFPs rated to 0°C–70°C would be insufficient. The 850 nm VCSEL laser source is the standard for short-reach multimode SFP optics and pairs with the most common installed base of OM1, OM2, OM3, and OM4 multimode fiber. LC duplex connectors are compatible with standard fiber patch panels and pre-terminated assemblies, reducing installation complexity. Hot-swappable insertion and removal allows live maintenance without impacting other network segments. Allied Telesis engineers and supports this transceiver natively for use with AT-series switches and routers, ensuring interoperability and access to manufacturer technical support. The AT-SPSX/E is available from Creation Networks, an authorized Allied Telesis reseller.
Key Features
- Extended temperature range (-40°C to +85°C) — suitable for GbE fiber links in industrial, outdoor, and transportation environments
- TAA compliant — meets Trade Agreements Act requirements for federal government and institutional procurement programs
- 1000BASE-SX over multimode fiber — 220 m reach on 62.5/125 µm MMF; 550 m on 50/125 µm MMF
- 850 nm VCSEL, LC duplex connector — standard wavelength and connector type compatible with the widest range of installed multimode fiber and patch panels
- Hot-swappable — live insertion and removal without host device power cycle, reducing maintenance impact
- SFP MSA compatible — operates in any standards-compliant SFP slot across Allied Telesis and third-party platforms
- Allied Telesis native support — engineered by the OEM for full compatibility with AT-series switches and routers
Technical Specifications
| Specification | Detail |
|---|---|
| Standard | 1000BASE-SX |
| Form Factor | SFP (Small Form-factor Pluggable) |
| Connector | LC duplex |
| Wavelength | 850 nm |
| Fiber Type | Multimode (50/125 µm or 62.5/125 µm) |
| Max Distance | 220 m (62.5/125 µm MMF); 550 m (50/125 µm MMF) |
| Operating Temperature | -40°C to +85°C (extended) |
| TAA Compliant | Yes |
| Hot-Swappable | Yes |
| Data Rate | 1 Gbps |
