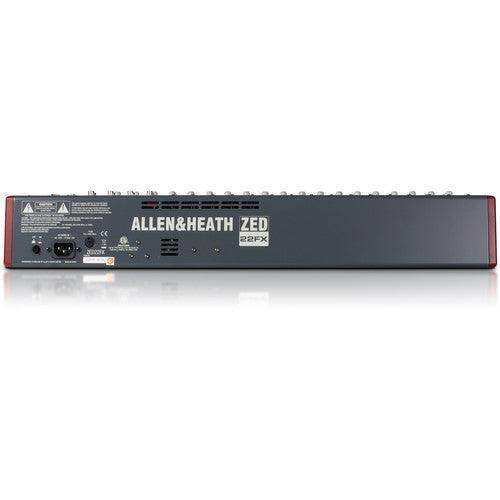

Allen & Heath ZED-22FX 22-Channel Analog Mixer with USB and Built-In Effects

Allen & Heath SKU: AH-ZED22FX
No reviews

Description

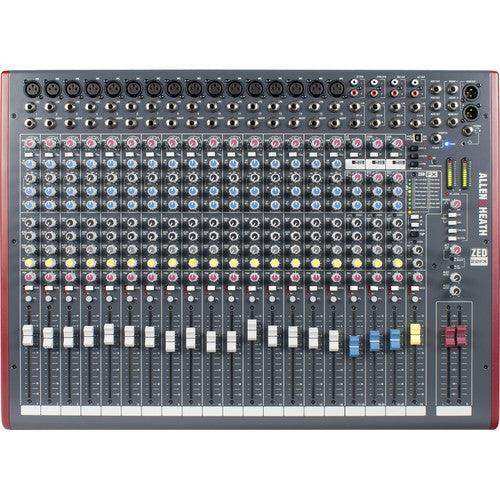

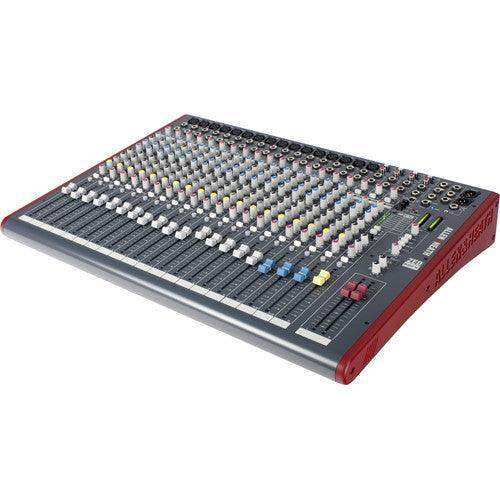

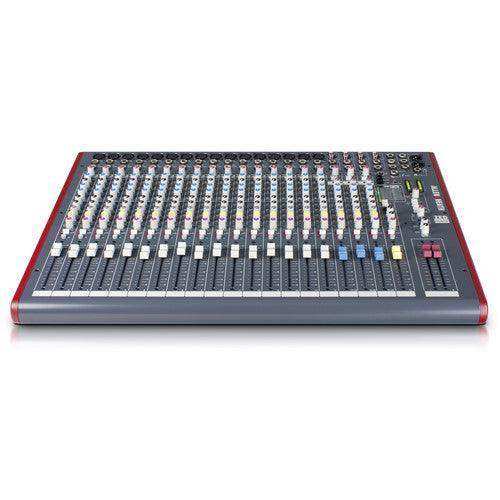

The Allen & Heath ZED-22FX is a 22-channel analog mixer offering versatile I/O and built-in effects for use in home and project studio recording, houses of worship, and live sound reinforcement. The 16 mono channels feature Neutrik XLR mic and 1/4" line inputs, DuoPre preamps with phantom power and bountiful gain, 1/4" insert points, and 3-band EQ, while the three stereo channels have 1/4" inputs and 2-band EQ. All channels are equipped with long-throw 100mm faders, solo and mute buttons, and independent aux send knobs.

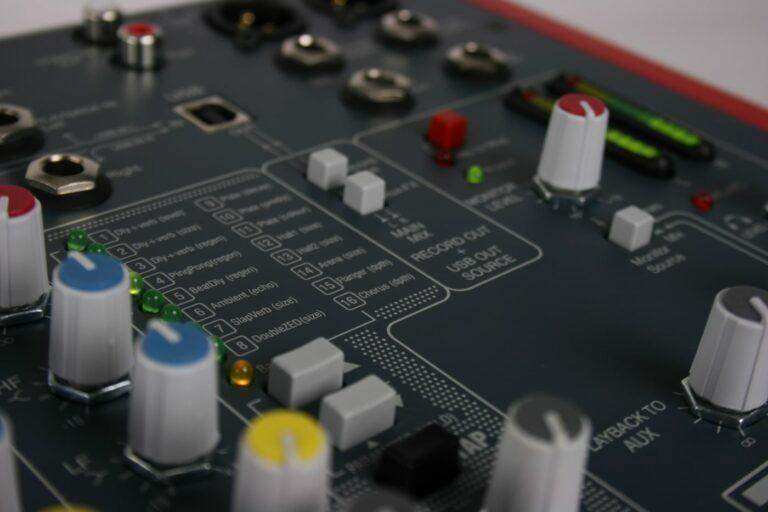

The three external aux sends are ideal for routing to floor monitors or outboard time-based effects, leaving the internal aux send dedicated as a feed to the built-in effects processor, which boasts 16 presets, a tap tempo function, and adjustable parameters. A USB 1.1 port delivers 2-channel send and return capabilities via a Mac or Windows computer. There are stereo and mono main outputs in addition to alt and headphone outputs, and dual 12-segment LED meters that clearly indicate your master output level. Patch additional stereo sources into the RCA stereo return and 2-track inputs, then route them to the stereo bus, or mix them into the stereo channels. The stereo RCA output is handy for recording your mix to an external device such as a cassette deck or computer soundcard.

16 Mono Inputs There are 16 mono input channels with Neutrik connectors—XLR for balanced mic signals, and 1/4" for balanced/unbalanced line-level sources 3 Stereo Inputs The three stereo input channels feature 1/4" connectors to accommodate stereo devices such as keyboards, synth modules, and external effects processors Flexible EQ Section All mono channels feature 3-band EQ with sweepable midrange, while the stereo channels offer 2-band EQ Inserts Inserts on all mono channels and the stereo output provide easy integration of analog outboard gear such as hardware compressors and equalizers Onboard Effects An internal aux send bus feeds the built-in effects processor, which provides an array of high-quality delay, reverb, and modulation effects, and returns to the stereo bus Independent Aux Sends Three mono aux sends with independent level controls allow versatile signal routing to floor monitors and external effects processors USB Connection A USB 1.1 port allows direct connection to Mac and Windows computers for stereo audio I/O Flexible Outputs The ZED-22FX offers balanced XLR stereo main outputs, a 1/4" mono main output, 1/4" and 3.5mm stereo headphone outputs, and a source-selectable stereo alt output
Number of Analog Input Channels 22
Number of Mic Preamps 16
Analog Output Channels 1x Stereo Master Output
1x Mono Master Output
1x Stereo ALT Master Output
3x Mono Aux Send Output
1x Stereo Tape/Record Output
1x Stereo Headphone Output
Built-In Effects Yes
USB I/O 1x USB-B 1.1()
Rack Mountable No
Mixer
Number of Analog Input Channels 22
Number of Mic Preamps 16
Analog Output Channels 1x Stereo Master Output
1x Mono Master Output
1x Stereo ALT Master Output
3x Mono Aux Send Output
1x Stereo Tape/Record Output
1x Stereo Headphone Output
Faders & Level Adjustment 3.9" / 100 mm Channel Fader
Meters Main Meter:
2x 12-Segment LED
Channel Meter:
Single LED
Signal Processing
Gain/Trim Range Mic Input:
-6 dB to +63 dB
Line Input:
-10 dB to +26 dB
Stereo Input:
-∞ to +10 dB
Fader:
-∞ to +10 dB
Return:
-∞ to +10 dB
Aux:
-∞ to +10 dB
Matrix:
-∞ to +6 dB
EQ Parameters Mono Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 120 Hz to 4 kHz
Low: ±15 dB at 80 Hz
Stereo Channels:
High: ±15 dB at 12 kHz
Low: ±15 dB at 80 Hz
Filters High-Pass: 100 Hz, 12 dB/Octave
Solo/Mute Mute, PFL per Input Channel
Mute, PFL per FX Bus
Built-In Effects Yes
Digital Audio
Sample Rates 32 / 44.1 / 48 kHz
Bit Depth 16-Bit
Performance
Headroom Analog: +21 dB
USB I/O: +14 dB
Frequency Response Mic Input to Main Output:
20 Hz to 20 kHz +0.5/-1 dB (30 dB Gain)
Line Input to Main Output:
10 Hz to 30 kHz +0.5/-1 dB (Unity Gain)
Stereo Input to Main Output:
10 Hz to 30 kHz +0.5/-1 dB
Max Input Level Mic Input:
+17 dBu
Line Input:
+30 dBu (Mono)
Insert Return:
+21 dBu
Output Level +21 dBu at Max Gain
0 dBu (Nominal)
EIN -127 dBu at Max Gain (150-Ohm Input)
Noise Floor Main Output:
-84 dBu (Master Level at Unity, 22 Hz to 22 kHz)
THD+N Mic Input to Main Output:
0.004% at Unity Gain (+10 dBu, 1 kHz)
Mic Input to Main Output:
0.014% at +30 dB Gain (1 kHz)
Line Input to Main Output:
0.005% at Unity Gain (0 dBu, 1 kHz)
Stereo Line Input to Main Output:
0.003% at Unity Gain (+10 dBu, 1 kHz)
Connectivity
Analog Inputs 1x 1/4" TS Footswitch Input
1x Stereo RCA Coaxial 2-Track Input
16x 1/4" TRS Unbalanced Channel Insert
2x 1/4" TRS Unbalanced Stereo Main Insert
16x XLR 3-Pin Balanced Mic Input
16x 1/4" TRS Balanced/Unbalanced Line Input
2x 1/4" TRS Balanced Aux Return (1 Stereo Pair)
1x Stereo RCA Coaxial Unbalanced Aux/Line Input
6x 1/4" TRS Balanced/Unbalanced Line Input (3 Stereo Pairs)
Analog Outputs 1x Stereo RCA Coaxial 2-Track Output
1x Stereo RCA Coaxial Unbalanced Alt Output
1x 1/4" TRS Headphone Output
1x 1/8" / 3.5 mm TRS Headphone Output
2x XLR 3-Pin Balanced Main (1 Stereo Pair)
1x 1/4" TRS Balanced Main Output
3x 1/4" TRS Balanced Mono Aux Send
Phantom Power +48 V, Selectable On/Off (Applied to All Inputs)
USB I/O 1x USB-B 1.1()
USB I/O Capacity 2x Input / 2x Output
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 40 W (Maximum)
Physical
Rack Mountable No
Dimensions 25.4 x 3.9 x 18.3" / 64.5 x 9.8 x 46.5 cm
Weight 23.1 lb / 10.5 kg
