Adder X50-MS2-US – Dual-Head VGA KVMA CATx Extender, 50m

Product Overview

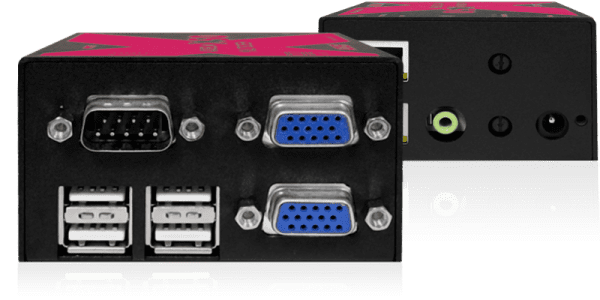

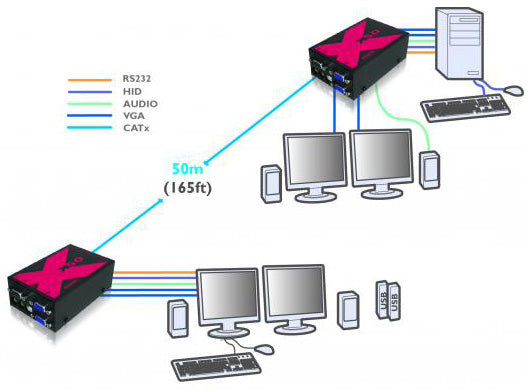

The Adder X50-MS2-US is a dual-head VGA KVMA CATx extender that places a complete two-screen workstation up to 50m (150ft) from the computer that drives it. As part of the AdderLink X50 family, this VGA KVM extender over CATx delivers uncompressed, lossless video at up to 1920x1200@60Hz alongside transparent USB 2.0 and CD-quality digital stereo audio on standard CAT5, CAT5e, or CAT6 cabling. For AV integrators who need a dual-monitor KVM extender for control positions, presentation lecterns, or equipment rooms, the X50 MS2 keeps noisy hardware out of the workspace without sacrificing peripheral compatibility.

Product Description

In commercial AV installations, the computers that drive displays and signage rarely belong at the operator's desk. The AdderLink X50 MS2 solves this by extending dual VGA video, keyboard, mouse, USB peripherals, and audio over a single run of CATx cable per head, so source machines can live in a secure rack or equipment closet.

Unlike generic USB extenders that emulate a fixed keyboard and mouse profile, the X50 uses Adder's fully transparent USB communication method with an integrated 4-port hub, supporting all USB 1.1 and 2.0 low/full-speed devices regardless of the connected computer or operating system. True DDC emulation carries the full two-page Display Data Channel to the source, so graphics cards always negotiate the correct resolutions for the remote screens.

Video compensation controls provide a broad range of fine adjustments, keeping the picture sharp at the full 50m reach. Digital transmission of 44.1kHz stereo audio eliminates the hiss and clicks common to analog audio extension, and no additional CATx run is required for sound. A dual-access local video and audio output at the transmitter lets a technician work directly at the rack while the remote console stays live. The compact all-metal chassis supports a high-density rack option that houses up to 16 X50 units in 2U, and platform independence covers Windows, Linux, macOS, Unix, and more. Pair the X50 MS2 with other extension and switching hardware from the Adder Technology collection at Creation Networks.

Key Features

• Dual-Head VGA Extension to 50m — Drives two VGA displays at distances up to 50m (150ft) over standard CATx cable, keeping computers in secure equipment rooms.
• High-Resolution Video — Delivers sharp, bright video at up to 1920x1200@60Hz across the full extension distance.
• Fully Transparent USB — A unique USB communication method with an integrated 4-port hub supports all USB 1.1 and 2.0 low/full-speed devices, not just keyboards and mice.
• Digital Stereo Audio — Click-free 44.1kHz CD-quality audio travels on the same CATx link, with no extra cable run required.
• True DDC Emulation — Full two-page DDC support ensures every resolution your displays offer is available to the source graphics card.
• Video Compensation — Ultra-smooth, fine picture adjustments compensate for cable length and keep imagery crisp.
• Dual Access at the Transmitter — Local video and audio outputs allow rack-side control of the extended computer.
• Platform Independent — Compatible with all common operating systems including Windows, Linux, Unix, Solaris, and macOS.
• High-Density Rack Option — An optional chassis houses up to 16 X50 units in just 2U of rack space.

Typical Applications

• Boardroom — locate presentation PCs in an adjacent rack while keeping a clean dual-screen console at the table.
• Conference room — extend a dual-monitor operator position from a centralized equipment closet.
• Training room — drive instructor stations from a protected back-of-room rack.
• House of worship — place production computers away from the platform while operators retain full control.
• Broadcast studio — remove fan noise from acoustically sensitive spaces without giving up USB peripheral access.
• Government space — keep physical access to computers restricted while consoles remain in the work area.

Technical Specifications

Frequently Asked Questions

What cable does the X50-MS2-US require?
Standard CAT5, CAT5e, or CAT6 UTP cable. Each video head uses its own CATx run, and the maximum end-to-end USB extension distance is 50m including patch connections.

Does it work with USB devices other than keyboards and mice?
Yes. Adder's transparent USB approach supports all USB 1.1 and 2.0 low/full-speed devices through the receiver's integrated 4-port hub, including touchscreens, dongles, and HID peripherals.

Can I still use the computer locally at the rack?
Yes. The transmitter provides dual-access local video and audio outputs, and USB devices can be plugged directly into the computer for rack-side maintenance.

Is the X50 MS2 operating-system dependent?
No. It is fully platform independent and compatible with all known operating systems including Windows, Linux, Unix, Solaris, and macOS.

Does audio require a separate cable?
No. Digital 44.1kHz stereo audio is carried on the same CATx link as video and USB.

Where can I get pre-sales help or volume pricing?
Creation Networks is a commercial AV supplier for Adder Technology hardware. Contact our team for system design assistance, or browse the full Adder Technology collection.
