Adder SFP-MM-LC-10G – 10GbE Multi-Mode SFP+ Fiber Module

Product Overview

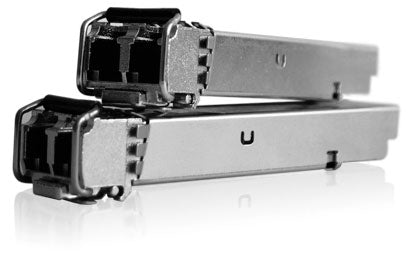

The Adder SFP-MM-LC-10G is a 10GbE multi-mode fiber SFP+ module with LC connectors, used to provide the high-speed fiber links required by AdderLink INFINITY 4000 series IP KVM units. For integrators designing 4K KVM-over-IP systems, this 10Gbps SFP+ transceiver carries optical data over multi-mode fiber for link lengths up to 300 meters. It is the Adder-specified multi-mode option for ALIF 4000 fiber connectivity, compliant with IEEE 802.3ae.

Product Description

The AdderLink INFINITY 4000 series moves high-resolution video, USB, and audio over 10 gigabit fiber, and the SFP cage on each unit needs a transceiver matched to the fiber plant in the building. The SFP-MM-LC-10G is the multi-mode answer: a 10Gbps SFP+ module using an 850nm VCSEL laser, designed to transmit and receive optical data over multi-mode optical fiber at link lengths up to 300m.

Multi-mode fiber is the most common cabling found within a single building or campus core, which makes this module the typical choice for control rooms, broadcast facilities, and post-production plants where ALIF 4000 transmitters and receivers sit within a few hundred meters of each other or of the network switch. The duplex LC connector interface matches standard structured-cabling patch panels, and IEEE 802.3ae compliance means the module operates with standard 10GbE switching infrastructure used to build INFINITY matrix networks. Specify one module per SFP port in the link path, and confirm your fiber type before ordering: multi-mode runs use this module, while longer single-mode runs require the single-mode variant. Both are available alongside ALIF 4000 endpoints in the Adder Technology collection at Creation Networks.

Key Features

• 10Gbps SFP+ Transceiver — Provides the full 10 gigabit optical link the AdderLink INFINITY 4000 series uses for high-resolution KVM-over-IP transport.
• Multi-Mode Fiber, 300m Reach — Transmits and receives over multi-mode optical fiber at link lengths up to 300 meters, suiting in-building and campus runs.
• 850nm VCSEL Laser — Uses an 850nm VCSEL optical source, the standard wavelength for short-reach multi-mode 10GbE links.
• Duplex LC Connectors — LC interface plugs directly into standard structured-cabling patch panels and fiber patch leads.
• IEEE 802.3ae Compliant — Standards compliance allows operation with the 10GbE switch infrastructure used in INFINITY matrix networks.
• Genuine Adder Module — Factory-specified transceiver for ALIF 4000 SFP ports keeps the optical link within a supported configuration.
