Adder PSU-RPS-5V-3M – 12V to 5V RED-PSU Converter Dongle, 3m
Adder PSU-RPS-5V-3M – 12V to 5V RED-PSU Converter Dongle, 3m is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Adder PSU-RPS-5V-3M – 12V to 5V RED-PSU Converter Dongle, 3m
Product Overview

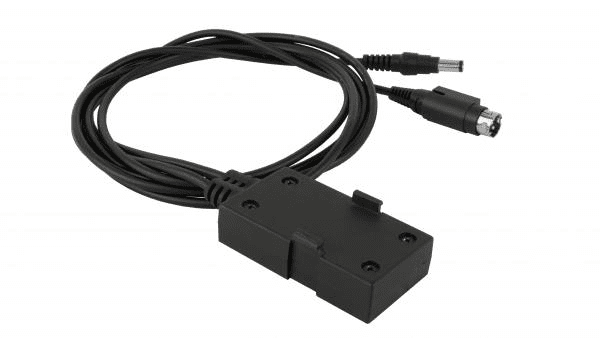

The Adder PSU-RPS-5V-3M is a 12V to 5V DC power converter dongle that lets 5V Adder devices draw power from the Adder RED-PSU rack power supply. With a 3 metre (approximately 10 ft) cable, this RED-PSU converter dongle gives integrators the reach needed to position powered devices away from the rack power shelf. It is the correct Adder KVM power accessory whenever a 5V unit must be connected to the 12V outputs of a RED-PSU system, converting the voltage while maintaining a secure, locking connection.
Product Description
Adder RED-PSU rack power supplies deliver 12V DC from their output ports, but several Adder devices operate on 5V DC. Connecting one of those devices requires a converter dongle that both links the RED-PSU port to the device and transforms the voltage level. The PSU-RPS-5V-3M performs exactly that role: it plugs into a RED-PSU output via a locking Kycon 3-pin connector and delivers regulated 5V DC to the device through a 2.5mm power jack.
The 3 metre cable length is the extended option in the converter dongle range, suited to installations where the powered device sits in a different part of the rack — or an adjacent bay — from the RED-PSU shelf. The locking Kycon connector resists accidental disconnection during cable dressing and rack maintenance, an important consideration for centralized power architectures intended to remove single points of failure. This dongle is designed for use with Adder RED-PSU rack power systems only; it is not a general-purpose 12V to 5V adapter. Deploy it in control rooms, broadcast facilities, and data centers wherever 5V Adder hardware is powered from a RED-PSU. Browse companion power accessories in our Adder Technology collection.
Key Features
- 12V to 5V DC Conversion — Transforms the RED-PSU 12V output to regulated 5V DC so low-voltage Adder devices can share centralized rack power.
- 3 Metre Cable Length — Provides roughly 10 ft of reach between the RED-PSU shelf and the powered device for flexible rack placement.
- Locking Kycon 3-Pin Connector — Secures the RED-PSU side of the connection against accidental disconnection during maintenance.
- 2.5mm Power Jack Output — Mates with the power inlet on compatible 5V Adder devices for a direct, adapter-free connection.
- Designed for RED-PSU Systems — Purpose-built link between RED-PSU output ports and 5V Adder hardware in centralized power deployments.
Technical Specifications
| SKU | PSU-RPS-5V-3M |
|---|---|
| Product Type | 12V to 5V DC power converter dongle |
| Input Connector | Locking Kycon 3-pin plug (RED-PSU output port) |
| Output Connector | 2.5mm DC power jack (5V device side) |
| Output Voltage | 5V DC |
| Cable Length | 3m (approx. 10 ft) |
| Compatibility | Adder RED-PSU rack power supplies (for powering 5V Adder devices) |
