Adder CATX-CONSOLE – Serial CAM for ADDERView CATxIP 5000

Product Overview

The Adder CATX-CONSOLE is a serial computer access module (CAM) that provides RS232 console connectivity to target machines through an Adder CATx KVM system. Used in conjunction with the ADDERView CATxIP 5000 KVM-over-IP switch, this serial console access module functions as a serial console (sometimes known as a terminal server), giving administrators out-of-band access to a target's command line interface as well as console access to network switches. Note that the CATX-CONSOLE only works from the ADDERView CATxIP 5000.

Product Description

Most CAMs in the Adder range carry keyboard, video, and mouse signals; the CATX-CONSOLE instead carries serial. That makes it the module to reach for when the device on the other end is managed through a console port rather than a graphical session — network switches, routers, and servers exposing a command line interface over RS232.

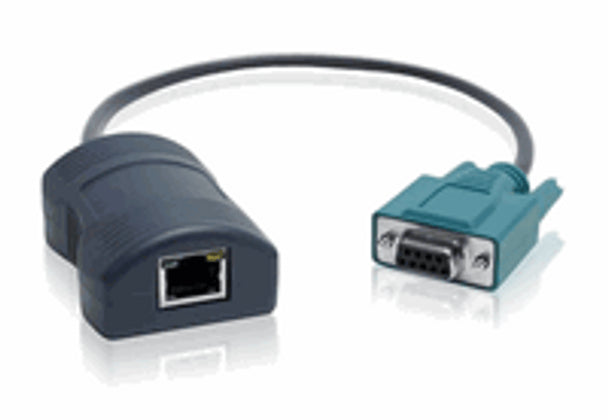

Deployed with the ADDERView CATxIP 5000, the module turns ports on the KVM switch into serial console connections, so the same switch that delivers BIOS-level KVM control of servers can also deliver out-of-band CLI access to network infrastructure. Serial interfaces can additionally be used for server control or power control where serial configuration is available. The module presents a D-Sub 9-way female connector to the target device and an RJ45 socket toward the CATx cabling, and carries two status indicators: green for power present and yellow for signal activity, which simplifies fault-finding in dense racks. For data centers and equipment rooms consolidating KVM and console management onto one platform, the CATX-CONSOLE removes the need for a separate terminal server appliance. Browse compatible switches, CAMs, and cabling in the Adder Technology collection at Creation Networks.

Key Features

• RS232 Serial Console Connectivity — Provides serial connectivity to target machines for command line and console management.
• Terminal Server Functionality — Used with the ADDERView CATxIP 5000, the CAM operates as a serial console, delivering out-of-band access to a target's CLI.
• Console Access to Network Switches — Brings switch and router console ports into the same managed KVM platform as your servers.
• Server and Power Control Capable — Serial interfaces can be used for server control or power control where serial configuration is available.
• D-Sub 9-Way Female Connector — Standard serial connector for direct attachment to console-managed equipment.
• Status Indicators — A green indicator confirms power present and a yellow indicator shows signal activity for quick visual diagnostics.
• Dedicated CATxIP 5000 Companion — Purpose-built to extend the ADDERView CATxIP 5000 into serial console management.
