Adder AVX4024-US – AdderView CATx 4000 4-User 24-Port KVM Switch

Product Overview

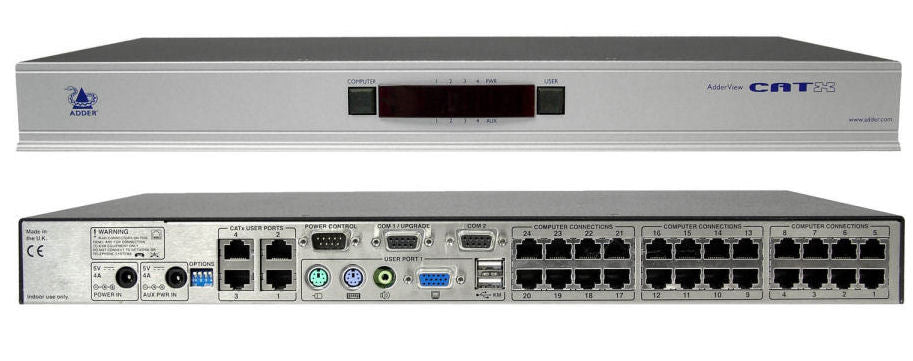

The Adder AVX4024-US is a 4-user, 24-port CATx KVM switch from the AdderView CATx 4000 series, built for server room KVM control where multiple administrators need BIOS-level access to large banks of multiplatform servers. This rack mount KVM over CATx switch supports four concurrent local, remote, or global users managing up to 24 computers from a single 1U appliance. For IT teams comparing a multi-user KVM switch for server racks, the AVX4024-US combines high-quality video, optional CD-quality audio, and integrated remote power control in one self-contained system.

Product Description

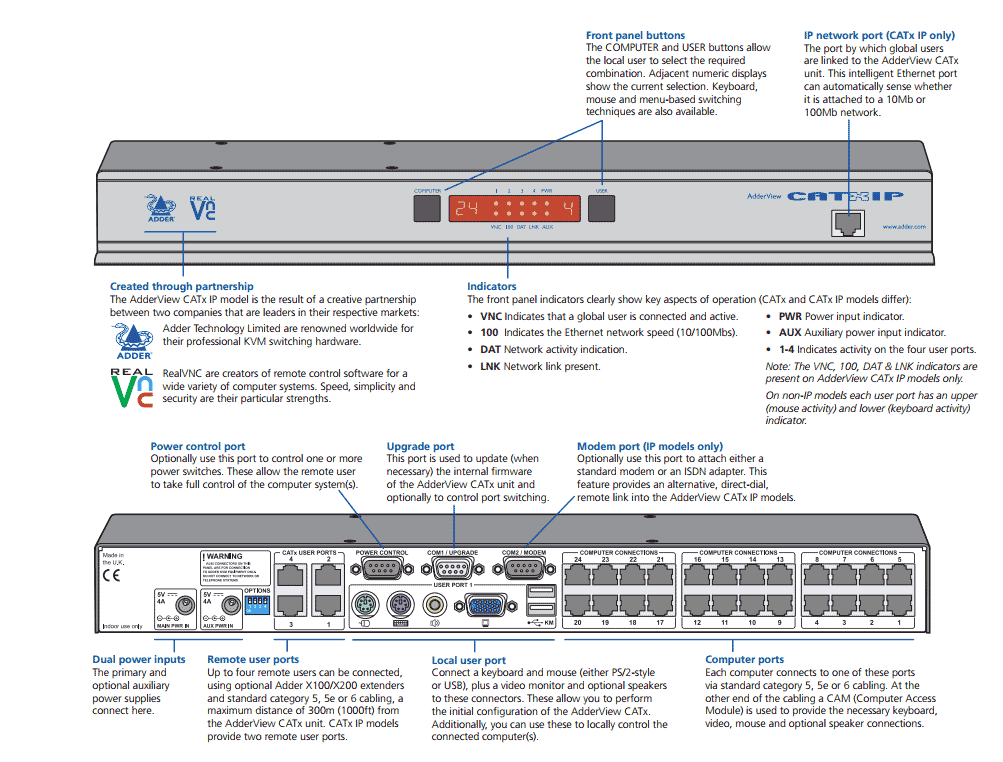

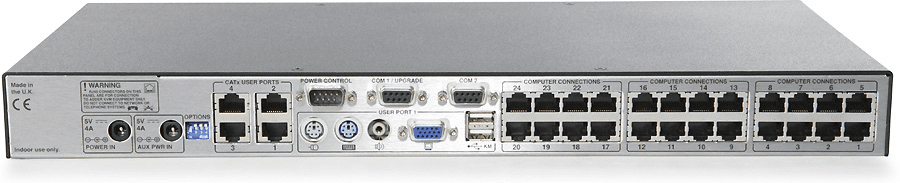

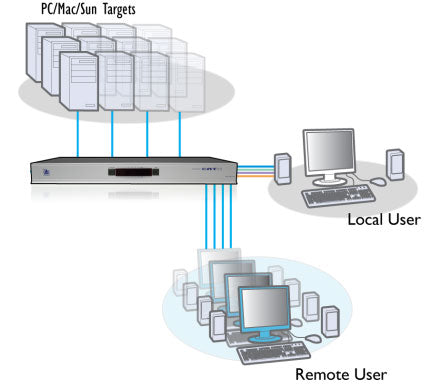

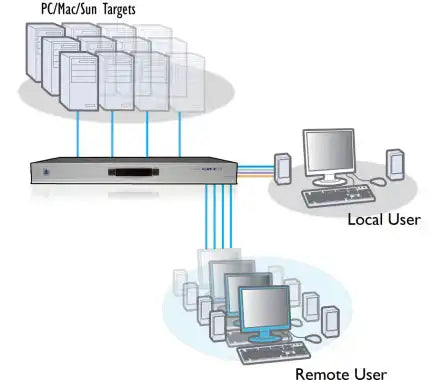

The AdderView CATx 4000 series connects computers and remote user stations over standard CATx cabling using RJ45 connections, which keeps cabling cost low and simplifies installation across equipment rooms and adjacent operator positions. Each of the 24 computer ports links to a server via a CATx access module, while one local console (VGA video with PS/2 or USB keyboard and mouse) and four remote CATx user connections give operators flexible access points. Remote users can be located up to 300m from the connected computers when paired with Adder extender hardware, allowing workstations to sit well away from noisy, heat-generating server racks.

Video performance supports resolutions up to 1900x1440 with DDC emulation, and continuous keyboard and mouse emulation ensures every connected server boots and runs without interruption, even when no user is selected to it. Platform support covers PS/2, USB, and Sun systems, making the switch suitable for mixed-vendor server estates. A dedicated RS232 port interfaces with power switches to provide full remote reboot capability, so administrators can power-cycle a locked server without walking to the rack.

The unit installs in minutes as a plug-and-play 1U appliance with the rack kit included, and it draws universal 100-240V AC power through a standard IEC inlet. For organizations standardizing on Adder KVM infrastructure, the AVX4024-US pairs naturally with other products in our Adder Technology collection.

Key Features

• 4 Concurrent Users, 24 Computers — Four local, remote, or global users gain simultaneous BIOS-level control of up to 24 multiplatform servers from one switch.
• CATx Connectivity — All computer and remote user links run over standard CATx cable with RJ45 connections, reducing cabling bulk and installation time.
• High-Resolution Video with DDC Emulation — Supports resolutions up to 1900x1440 with DDC emulation for faultless display performance on every port.
• Multiplatform Support — PS/2, USB, and Sun platform compatibility with country code reporting covers mixed server environments.
• Integrated Remote Power Control — A dedicated RS232 port interfaces with power switches to deliver complete remote reboot functionality.
• Remote Users to 300m — Operator stations can be located up to 300m from the computers using Adder extenders.
• 1U Rack Mount Design — Self-contained 19-inch appliance with the rack kit included installs in minutes with no software required.
• Optional Audio — CD-quality audio support through 3.5mm stereo connections for installations that require sound.

Typical Applications

• Broadcast studio equipment rooms requiring multi-operator server access
• Government spaces consolidating control of secure server racks
• Training rooms where instructors manage banks of lab computers
• Commercial meeting space and facility server rooms supporting AV and IT infrastructure

Technical Specifications

Frequently Asked Questions

Does the AVX4024-US require software or drivers?
No. It is a plug-and-play appliance that installs in minutes; configuration and switching are handled through the on-screen display and hotkeys.

Can it control servers from different vendors?
Yes. The switch supports PS/2, USB, and Sun platforms with keyboard, mouse, and DDC emulation, so mixed server estates operate without compatibility issues.

How far can user stations be from the switch?
Remote users can be positioned up to 300m from the connected computers when using Adder extender hardware over CATx cabling.

How does remote power control work?
The switch includes a dedicated RS232 port that interfaces with compatible power switches, letting administrators perform a complete remote reboot of a connected server.

Is rack mounting hardware included?

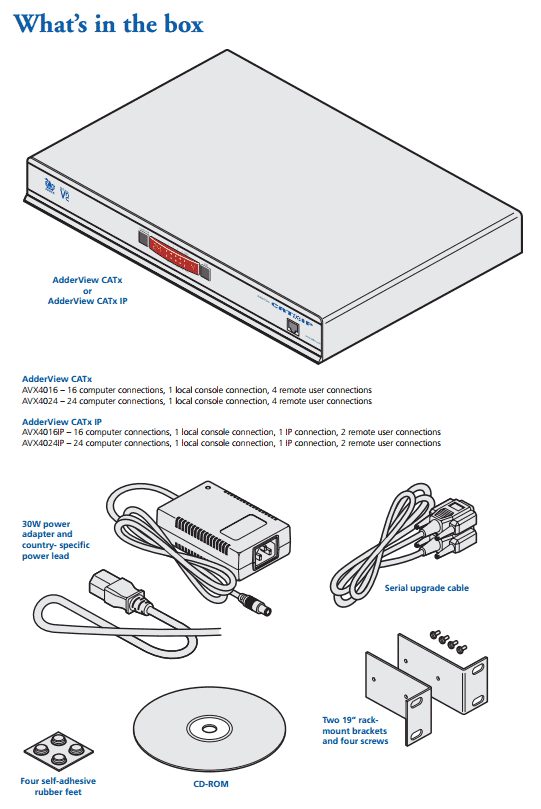

Yes. The 1U chassis ships with a single rack kit for standard 19-inch racks.

Who do I contact for pre-sales design help?
Creation Networks provides commercial AV and KVM system design support; contact our team to size the right Adder solution for your server room.
