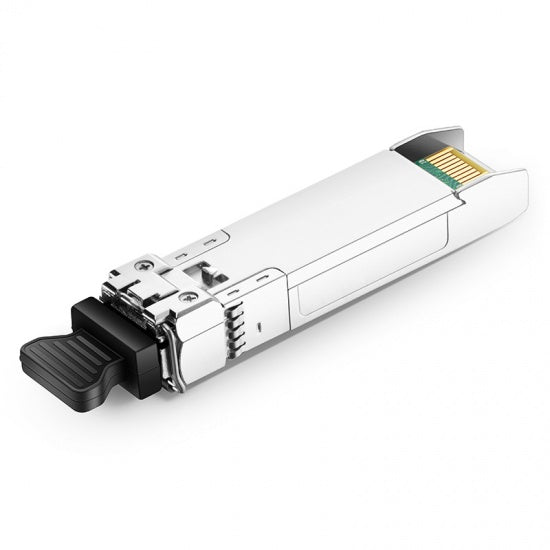

AVPro Edge AC-25G-SFP28-MM – 25G Multi-Mode Fiber Module

Product Overview

The AVPro Edge AC-25G-SFP28-MM is a 25G SFP28 multi-mode fiber transceiver module built for AVPro Edge's MXnet 10G network switches and SDVoE transceivers equipped with 25G SFP28 uplink ports. It extends high-bandwidth AV-over-IP connectivity between switches, encoders, decoders, and other networked AV equipment over multi-mode fiber, reaching up to 100 meters on OM4 cable or 70 meters on OM3. Integrators building fiber backbones for MXnet 10G deployments in campus, multi-building, or long-run rack-to-rack installations use this module to move beyond copper's 100-meter distance limit affordably. It inserts into any standard SFP28 port and requires an LC duplex fiber connection at 850nm. A single-mode version (AC-25G-SFP28-SM) is also available for longer fiber runs.

Product Description

AV-over-IP deployments that span multiple floors, buildings, or long rack-to-rack runs benefit from fiber connectivity, and the AC-25G-SFP28-MM gives integrators an SFP28 multi-mode option for AVPro Edge's MXnet 10G ecosystem. The module operates at a maximum data rate of 25.78Gbps over an 850nm VCSEL transmitter, reaching 100 meters on OM4 multi-mode fiber or 70 meters on OM3, which covers the majority of intra-building and inter-rack fiber runs found in commercial AV projects. It terminates with a duplex LC connector, the standard fiber termination used across most structured cabling systems, so integrators working with existing fiber infrastructure won't need to source uncommon connector types. Built-in clock and data recovery (CDR) on both transmit and receive paths, along with support for RS-FEC and FC forward error correction, helps maintain signal integrity across longer fiber runs. Power consumption is rated at 1 watt or less, keeping thermal load low when populating multiple SFP28 ports on a fully-loaded MXnet 10G switch. The module operates across a 0 to 70°C commercial temperature range, suitable for equipment room and rack environments without additional climate control considerations specific to the transceiver itself. For AV system designers speccing an MXnet 10G fiber backbone, matching this multi-mode module to existing OM3 or OM4 fiber plant avoids the cost of upgrading to single-mode fiber and optics when reach requirements stay under 100 meters.

Key Features

• 25.78Gbps Data Rate — matches AVPro Edge's MXnet 10G SFP28 port requirements for full-bandwidth AV-over-IP transport.
• Up to 100m on OM4 Fiber — extends AV-over-IP connectivity well beyond copper's 100-meter practical limit.
• Duplex LC Connector — terminates with the fiber connector standard used across most structured cabling systems.
• Built-In CDR and FEC Support — maintains signal integrity with RS-FEC and FC forward error correction on longer runs.
• Low Power Consumption — draws 1W or less, reducing thermal load on fully-populated switches.
• Standard SFP28 Form Factor — inserts into any compatible 25G SFP28 port on AVPro Edge MXnet 10G equipment.
