Airports operate as high-stakes, 24/7 environments where clear communication directly impacts passenger safety, operational efficiency, and the overall travel experience. From routine gate announcements and boarding calls to critical emergency alerts and integrated gate control, a reliable, scalable AV&C (audio, video, and control) system is essential. The Q-SYS platform by QSC excels here as a software-based, IT-friendly ecosystem that unifies audio distribution, paging, emergency notifications, and device control over a single network.

As an authorized Q-SYS partner, Creation Networks helps airports and transportation facilities deploy these solutions for mission-critical performance. This case study explores real-world applications, key features, and benefits—drawing from successful deployments like Santiago International Airport.

Modern airports handle millions of passengers annually amid noise, reverberation, multiple zones, and the need for instant overrides during emergencies. Traditional fragmented systems (separate PA, control, and signage) create complexity, single points of failure, and integration challenges.

Q-SYS addresses these with a centralized, redundant architecture that leverages existing IP networks for audio, video, and control. It supports:

• Multi-zone paging and announcements with priority levels.
• Emergency alert integration for fire alarms, security threats, or evacuations.
• Gate and facility control via IP-based third-party devices.
• High-intelligibility audio in challenging acoustic environments.

Santiago International Airport in Chile, serving over 20 million passengers yearly, underwent major renovations. The AV team selected the Q-SYS Ecosystem for wide-area audio and paging distribution.

Key Implementation Details:

• Redundant Processing: A pair of Q-SYS Core 510i processors provides failover. If the primary core faults, the secondary seamlessly takes over audio streaming, control, and communications—ensuring zero interruptions to critical operations.
• Advanced Paging: Software-based multi-zone paging supports native Q-SYS network page stations. The system handles 256 channels of live/delayed paging, routing, and store-and-forward capabilities without extra hardware.
• Audio Reinforcement: Over 850 AcousticDesign Series column loudspeakers paired with redundant CXD-Q Series network amplifiers deliver clear sound in high-ceiling, reverberant concourses. The narrow vertical coverage minimizes reflections for superior speech intelligibility.
• Outcomes: Jorge Cañete of VCGP-Astaldi noted that Q-SYS and QSC column loudspeakers provided speech clarity far exceeding alternatives, with added monitoring and management via Q-SYS processing.

This setup enables seamless routine announcements, background music, and emergency overrides while integrating with broader airport systems.

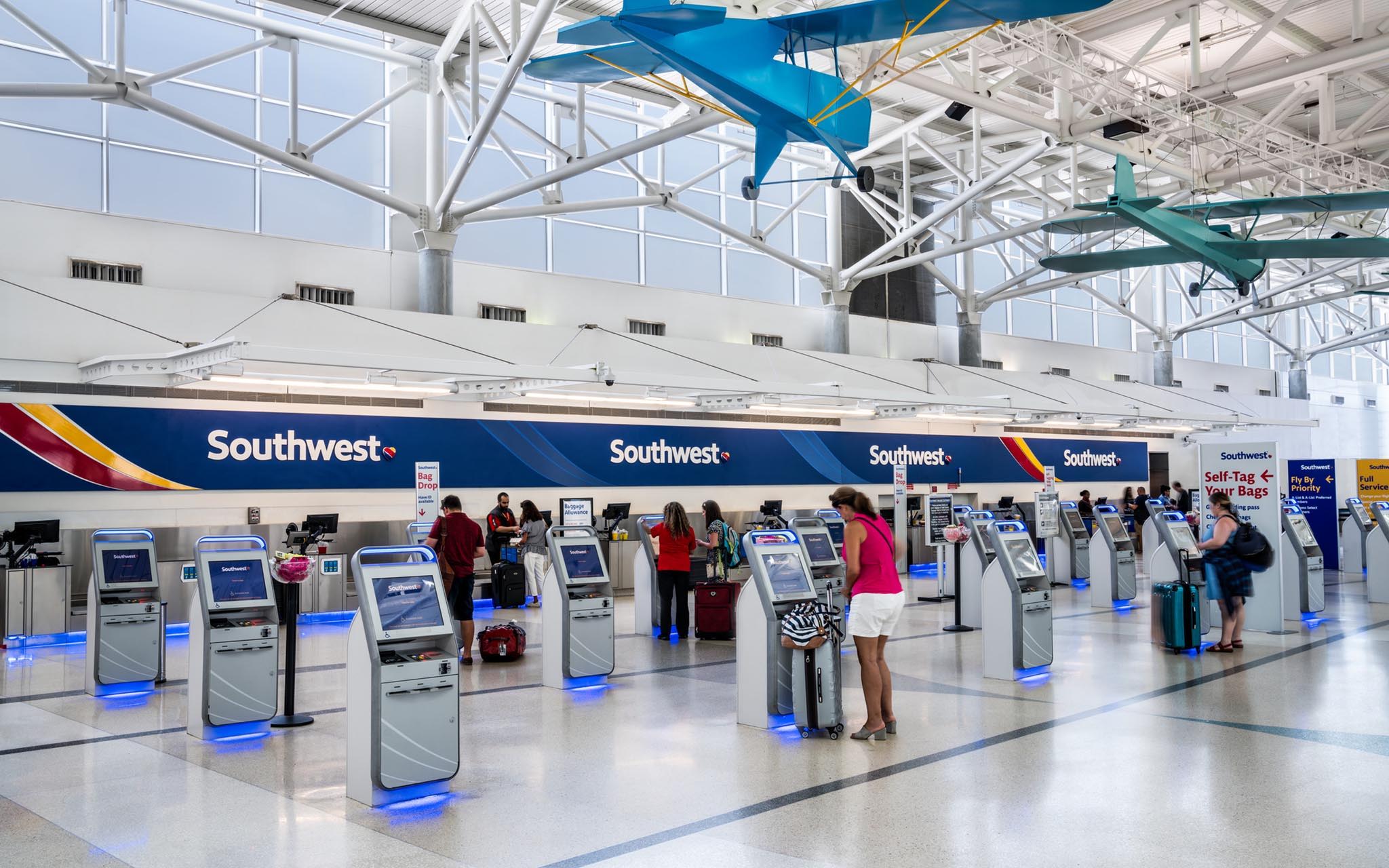

At FLL, Q-SYS supports Terminal 4 operations with 23 page stations (expandable with ongoing growth). A Q-SYS Core 3000 and CX204 amplifiers handle paging and audio needs, demonstrating scalability for growing facilities.

Core Q-SYS Features for Airport Applications

1. Emergency Alerts and Priority Paging Q-SYS offers robust priority and interruption logic, queuing, preambles (e.g., chimes), and emergency override. It integrates with fire alarms, security systems, and mass notification platforms for rapid, targeted alerts. Store-and-forward and WAN/VoIP capabilities support long-haul or remote announcements.

2. Zone-Specific Announcements and Gate Control Define unlimited zones (check-in, gates, baggage, lounges) for tailored messaging. The integrated control engine manages IP devices for automated gate announcements synced with flight info systems, digital signage, and access control.

3. High-Performance Audio Ecosystem

• Full portfolio of loudspeakers (ceiling, column, pendant, surface) optimized for public spaces.
• Network amplifiers with built-in DSP for voicing, monitoring, and redundancy.
• High channel density and native network streaming for crystal-clear, low-latency audio.

4. Scalability, Redundancy, and Management

• Software-based design scales from small terminals to massive hubs.
• Full redundancy (processing, networking, amplification).
• Q-SYS Reflect for remote monitoring, alerts, and management—critical for minimizing downtime.
• Custom UCIs (User Control Interfaces) for intuitive staff operation on touchscreens, tablets, or kiosks.

5. IT-Friendly Integration Layer 3 networking, security features, and compatibility with third-party systems (e.g., SimpleWay messaging) reduce infrastructure costs and simplify IT management.

At Creation Networks, we specialize in designing, deploying, and supporting Q-SYS solutions for transportation hubs. Whether upgrading an existing terminal or building new infrastructure, our team delivers tailored ecosystems that meet stringent reliability and performance requirements.

Ready to elevate your airport’s communication and control systems? Visit our Case Studies page or contact our AV experts today for a consultation. Explore Q-SYS products, request pricing, or schedule a demo—we’ll help you implement a system that drives safety, efficiency, and passenger satisfaction.

Creation Networks – Your trusted Q-SYS integrator for mission-critical AV&C solutions.
