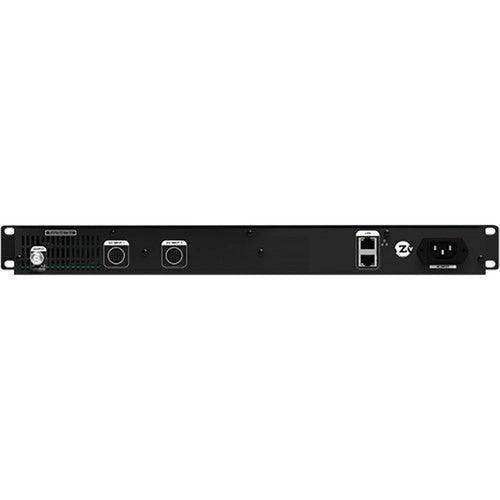

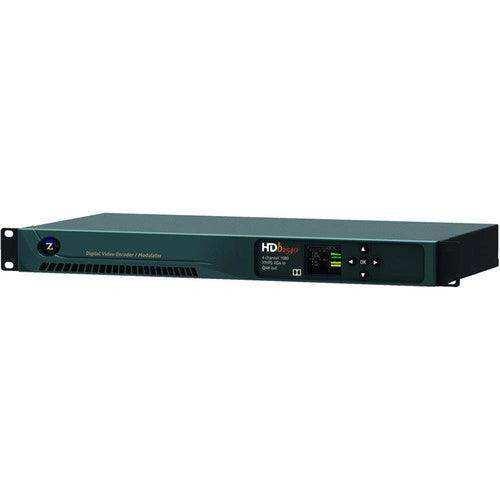

ZeeVee HDB2520-DT 2 Channel HD MPEG2 Digital Ecoder with DirecTV Version

ZeeVee SKU: HDb2520-DT
No reviews

Sale price$1,958.45


The ZeeVee HDbridge 2000 Series encoder / modulators offer advanced functionality specifically designed for high channel environments. Four NEW HD family members are available (HDb2640, HDb2620, HDb2540, HDb2520, and HDb2380) offering 1080p/i or 720p performance in 4 or 2 channel configurations. Each model utilizes hydra cables that extend from a full sized DIN connector to 7 inputs (component HD video, analog and digital audio) for maximum flexibility.

HDb2640 - 4 channel 1080p/i Component video
HDb2620 - 2 channel 1080p/i Component video
HDb2540 - 4 channel 720p Component video
HDb2520 - 2 channel 720p Component video
Five-Year Warranty - ZeeVee is extending the warranty on all ZvPro and HDbridge products to five years. This warranty further demonstrates our confidence in the reliability and longevity of the ZeeVee equipment. Product needs to be manufactured in 2014 in order to qualify for the 5-year warranty. If it was manufactured prior to 2014 it will be covered by our two year warranty.

  • Use existing coaxial cabling - saves time, money and disruption
  • Compatible with any HDTV - use the built-in tuner
  • MPEG2 video and AC3 or Mpeg-1 Layer 2 audio encoding - standards based assurance
  • QAM or DVB-T/C - varies by region
  • Optimized rack space - 2, 4, or 8 channels in a single 1RU
  • Front to back cooling - no special racking requirements
  • Consolidated cabling - durable, snug connectors
  • Maestro headend management software - Connect locally or remotely from any browser-based device
  • Front-Panel color LCD - for channel status
  • Local and/or remote management - configure all channels at once - from anywhere!
  • Power: 100-240 VAC 50/60 Hz, 60W max. 30W Typical IEC 60320-C14
  • Cooling: Dual internal cooling fans, Front inlet, Rear exhaust
  • Temperature/Humidity: Operating +32 F0 to +113 F0 (0 C0 to +45 C0) / 10% to 80%, non-condensing
  • MTBF: 62,000 hours
  • Compliance: FCC Class A, IEC60065, EN61000 (see manual 70-00031-00), CE, RoHS, RCM C-Tick
  • Enclosure Type: Metal
  • Mounting Rack ears shipped attached, 1RU high
  • System Weight: 6.25 lbs. (2.84 kg)
  • Warranty: 5 years
  • Component Video X2 Or X1: DIN connector HDbridge end, RCA connectors for HD source up to 720p
  • Computer VGA (Analog) X2 Or X1: HD-15 connector, 75 Ohm RGB 0 to 0.7V, Separate H and V sync
  • VGA Resolutions Supported: HD-15 connector, 75 Ohm RGB 0 to 0.7V, Separate H and V sync; VGA resolutions are broadcast centered in the best vertical fit into 1920x1080p30 or 1280x720p60
  • Closed Caption: EIA/CEA-608 captions accepted over composite video input
  • ZvShow: MPEG2 Program stream file, up to 200 MB
  • Stereo Analog And Digital Audio X4 Or X2: Line level input per channel DIN connector HDbridge end, RCA connector or digital SPDIF audio input. 3.5 mm pigtail connector with VGA
  • Encoder Video Profile: MPEG2 HD: ISO13818-2 Main Profile @ High Level
  • Traffic Shaping: Variable Bit Rate
  • Video Encoding Data Rates: Variable, 10 Mbs - 24 Mbs per channel
  • Average Encoding Data Rate: 18 Mbs per channel
  • Encoding Latency: Programmable 200 msec to 400 msec
  • Color Profile: 4:02:00
  • GOP Size: 16
  • Video, Audio PID:Programmable starting value
  • Program Information Programmable program name, EIT
  • Encoder Audio Profile: ATSC A/52, Dolbyr Digital (AC-3)
  • Modulation Types: QAM 256 and 64 (ITU-T J83 Annex B) Interleaving modes: (64,2) only
  • Cable Standard: HRC, IRC or STD
  • Frequency Range: Up to 4 paired, frequency-agile QAM RF CATV Channels 2-135; 2 kHz resolution; +/- 30 ppm accuracy; +/- 35 ppm stability
  • Output Power: +45 dBmV typical
  • Output Level Adjust: 25 - 45 dBmV in 1dBmV steps
  • MER: > 38 dB typical
  • I/Q Amplitude Imbalance: < 1% typical
  • Spectral Tilt
  • Stream Details: IP Stream OP HBD2520
  • Network Interface: 10/100 Mb Ethernet via RJ45 connection; IP address via DHCP or set by user; HTML/Javascript served web interface for easy configuration; Telnet connection for CLI scripting; Easy firmware updates; All settings saved in NV storage
  • Front Panel Color Display: Quickly obtain status at a glance, basic configurations, software revisions and updates
