Yealink ZVC S90-C5-004 – Zoom Rooms System for ProAV Spaces

Product Overview

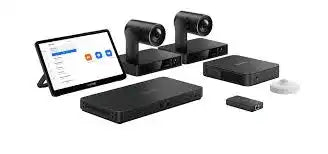

The Yealink S90-C5-004 is a native Zoom Rooms system for large rooms, ProAV spaces, and training rooms that need multi-camera coverage. It combines two UVC86 4K dual-eye PTZ cameras with the AVHub audio/video processor for extra-large conference room video conferencing with auto-framing and speaker tracking. Running on the MCore Pro Gen-3 mini-PC as a native Zoom Rooms endpoint, it gives integrators a certified base for training room Zoom Rooms integration. This dual-camera Zoom Rooms installation suits rooms where one fixed camera cannot keep every participant in frame.

Product Description

This configuration targets extra-large conference rooms, classrooms, and training rooms where varied seating and sight lines call for coverage from multiple angles. The system is built on the Yealink MCoreKit-C5, which bundles the MCore Pro Gen-3 mini-PC, the MTouch Plus Gen-3 touch panel, and a RoomSensor. The MCore Pro runs an 11th Gen Intel Core i5 with 8GB (2x4GB) RAM and a 128GB SSD, deployed as a native Zoom Rooms endpoint.

Two UVC86 dual-eye intelligent cameras deliver 4K capture with 20.4x HD zoom (12x optical, 1.7x digital), auto-framing, and speaker tracking for wide-room framing. The Yealink AVHub audio/video processor manages the multi-camera streams and offloads processing from the mini-PC. The bundled MVC BYOD Extender lets in-room guests connect a laptop and run their own platform alongside the native room system. The MTouch Plus Gen-3 is an 11.6-inch narrow-bezel IPS panel at 1920x1080 for table-side control. Teams evaluating platforms can find the matching Microsoft Teams Rooms build and the full lineup in the Yealink collection. The package ships with the VCR20 remote, power adapters, wall-mount brackets, and cabling for a complete room build, and integrators can extend ceiling or DSP audio through the AVHub.

Key Features

• Dual UVC86 4K PTZ Cameras — Two dual-eye cameras deliver 20.4x HD zoom (12x optical, 1.7x digital) with auto-framing and speaker tracking to keep participants in frame.
• AVHub Audio/Video Processor — The AVHub manages multi-camera streams and offloads audio/video processing from the mini-PC for large-room scalability.
• MCore Pro Gen-3 Mini-PC — An 11th Gen Intel Core i5 with 8GB RAM and a 128GB SSD runs the room as a certified native Zoom Rooms endpoint.
• MTouch Plus Gen-3 Panel — The 11.6-inch narrow-bezel IPS touch panel at 1920x1080 provides table-side meeting control.
• Integrated RoomSensor — The bundled RoomSensor captures occupancy data for space utilization reporting.
• BYOD Extender Included — The MVC BYOD Extender lets guests share content or run an external platform from a connected laptop.
• Complete Install Kit — VCR20 remote, power adapters, wall-mount brackets, and cabling ship in the box for a full room deployment.

Typical Applications

• Training room — Dual-camera coverage with auto-framing captures instructor and seated participants across a deep room.
• Conference room — Native Zoom Rooms control and PTZ cameras suit standard and large meeting spaces.
• Boardroom — 4K dual-eye cameras and AVHub processing deliver clean framing for executive sessions.
• All-hands room — Multi-camera scalability covers large groups in town-hall layouts.
• Multi-purpose room — Flexible camera placement adapts to changing furniture configurations.

Technical Specifications

Frequently Asked Questions

Q: Which platform does the S90-C5-004 run?
A: It is a native Zoom Rooms system, deployed on the MCore Pro Gen-3 mini-PC.

Q: How many cameras are included?
A: The system ships with two UVC86 cameras managed by the AVHub multi-camera processor for wide-room coverage.

Q: Do the cameras support auto-framing?
A: Yes. The UVC86 cameras provide auto-framing and speaker tracking, with 20.4x HD zoom (12x optical, 1.7x digital).

Q: Can in-room guests present from a laptop?
A: Yes. The included MVC BYOD Extender lets users share content or run an external platform from a connected laptop.

Q: Is there a Microsoft Teams Rooms equivalent?
A: Yes. This is the Zoom Rooms counterpart to the MVC S90; the Teams Rooms version is available in the Yealink collection.

Q: What controller operates the room?
A: The MTouch Plus Gen-3, an 11.6-inch narrow-bezel IPS panel at 1920x1080, provides table-side control.
