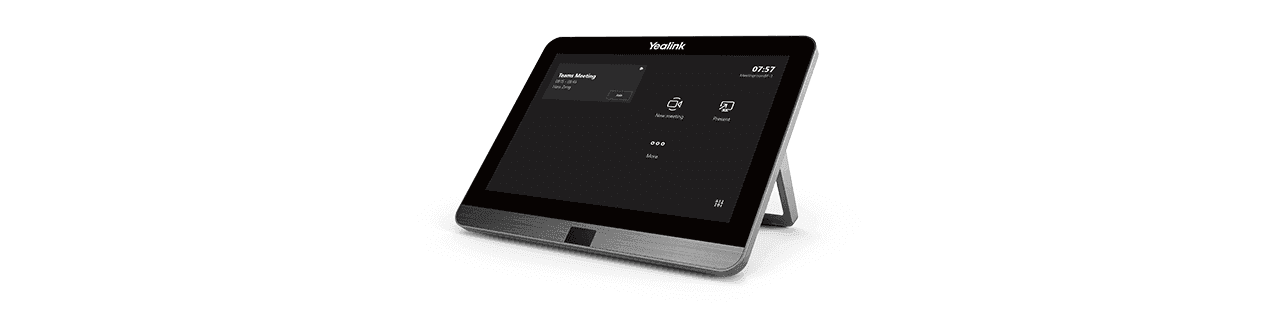

Yealink MTouch E2 - Conference Room Touch Panel Controller

Product Overview

The Yealink MTouch E2 is the third-generation conference touch panel, designed as an all-in-one controller for Yealink room systems. It consolidates call control, camera control, and content sharing into a single 8-inch touchscreen interface. A built-in Human Motion Sensor wakes the conference system automatically as participants approach, so meetings can begin without delay. The MTouch E2 is an enhancement of the MTouch II, adding wired and wireless content sharing in a compact, deployment-ready form factor.

Product Description

The MTouch E2 serves as the central command surface for Yealink meeting room deployments. Its 8-inch IPS display runs at 1280 x 800 resolution with 10-point capacitive touch, giving AV teams a responsive interface for managing calls, cameras, and shared content. The angle-adjustable bracket tilts from 28 degrees to 50 degrees, allowing the panel to sit comfortably on a conference table or credenza for different room layouts.

For content sharing, the MTouch E2 supports 1080P/30FPS full HD over both HDMI and USB-C video inputs, accommodating laptops and BYOD presenters. A built-in Wi-Fi access point pairs with Yealink wireless presentation devices, enabling cable-free sharing when needed. A 3.5mm headset jack supports private audio. As a controller within the broader Yealink ecosystem, the MTouch E2 integrates with Yealink room systems to centralize meeting operations. Browse the full range in our Yealink collection, and pair this panel with a compatible bar such as the Yealink A10 MeetingBar for a complete small-room build.

Key Features

• 8-inch IPS Touchscreen — A 1280 x 800 IPS display with 10-point capacitive touch delivers a clear, responsive control surface for in-room operators.
• Human Motion Sensor — Detects participant presence and wakes the conference system automatically so meetings start without manual activation.
• Dual Video Input — HDMI and USB-C inputs support 1080P/30FPS FHD content sharing from a wide range of source devices.
• Wired and Wireless Sharing — Supports both cabled and wireless content sharing for flexible presenter scenarios.
• Built-in Wi-Fi AP — An integrated access point connects Yealink wireless presentation devices without additional network infrastructure.
• Angle-Adjustable Bracket — The mount adjusts from 28 degrees to 50 degrees for comfortable viewing across table and credenza placements.
• 3.5mm Headset Jack — Provides a wired audio connection for private listening at the panel.

Typical Applications

• Conference Rooms — Centralizes call, camera, and content control on the table for everyday team meetings.
• Huddle Spaces — Compact footprint and motion-triggered wake suit small rooms used for quick collaboration.
• Executive Briefing Rooms — Provides a polished, single-touch control surface for high-visibility meetings.
• BYOD Meeting Environments — Dual HDMI/USB-C inputs and wireless sharing support guest and employee devices alike.

Technical Specifications

Frequently Asked Questions

Q: What is the Yealink MTouch E2 used for?
A: It is a conference room touch panel that controls calls, cameras, and content sharing for Yealink room systems from a single 8-inch touchscreen.

Q: Does the MTouch E2 support wireless content sharing?
A: Yes. It supports both wired and wireless content sharing and includes a built-in Wi-Fi access point for Yealink wireless presentation devices.

Q: What video inputs does the panel have?
A: It provides HDMI and USB-C video inputs and supports 1080P/30FPS full HD content sharing.

Q: How does the MTouch E2 wake up?
A: A built-in Human Motion Sensor detects presence and wakes the conference system automatically so meetings can start immediately.

Q: Can the viewing angle be adjusted?
A: Yes. The bracket is adjustable from 28 degrees to 50 degrees to suit different table and room placements.

Q: How does the MTouch E2 differ from the MTouch II?
A: The MTouch E2 is the third-generation enhancement of the MTouch II, with an all-in-one design covering call control, camera control, and content sharing.
