ViewSonic LS740W 5,000 ANSI Lumens WXGA Laser Installation Projector
The ViewSonic LS740W delivers high-brightness WXGA projections up to 300 inches with 5,000 ANSI lumens, ensuring crisp, vibrant images even in ambient-lit environments like boardrooms and auditoriums. Its laser phosphor technology provides a maintenance-free 30,000-hour lifespan in Dynamic Eco mode, reducing operational costs by up to 51% through energy efficiency. SuperColor enhancement and a high native contrast ratio via 0.65" DMD chip produce deeper blacks, brighter whites, and true-to-life colors for engaging presentations and simulations.
Featuring a sealed optical engine for dust resistance and 24/7 reliability, the compact, lightweight design (35% smaller and lighter than predecessors) supports easy transport and installation. With 1.3x optical zoom, H/V keystone ±30°, 4-corner adjustment, 360° projection, and portrait mode, it offers flexible setup without distortion. Instant on/off and Golf Mode cater to professional and recreational needs.
Ideal for conference rooms, lecture halls, public spaces, and home golf simulators. Compatible with ViewSonic PJ-WMK-007 ceiling mount, wireless HDMI dongles via USB-A power, major golf simulation software, and sources up to 1920x1200 resolution.
Features Chart
| Feature | Benefit |
|---|---|
| 5,000 ANSI Lumens | Sharp visuals in bright ambient lighting for large venues |
| Laser Phosphor Light Source | 30,000-hour lifespan with zero lamp replacements |
| 1.3x Optical Zoom | Adjustable image sizing without repositioning |
| H/V Keystone ±30° & 4-Corner | Effortless alignment from any angle or orientation |
| Golf Mode & 360° Projection | Immersive simulations and creative installations |
Specifications Table
| Specification | Detail |
|---|---|
| Native Resolution | 1280 x 800 (WXGA) |
| Brightness | 5,000 ANSI Lumens |
| Contrast Ratio | High Native (via 0.65" DMD) |
| Light Source Life | 30,000 hours (Dynamic Eco) |
| Throw Ratio | 1.18–1.54:1 |
| Optical Zoom | 1.3x |
| Image Size | 80–300 inches |
| Speakers | 15W x 1 |

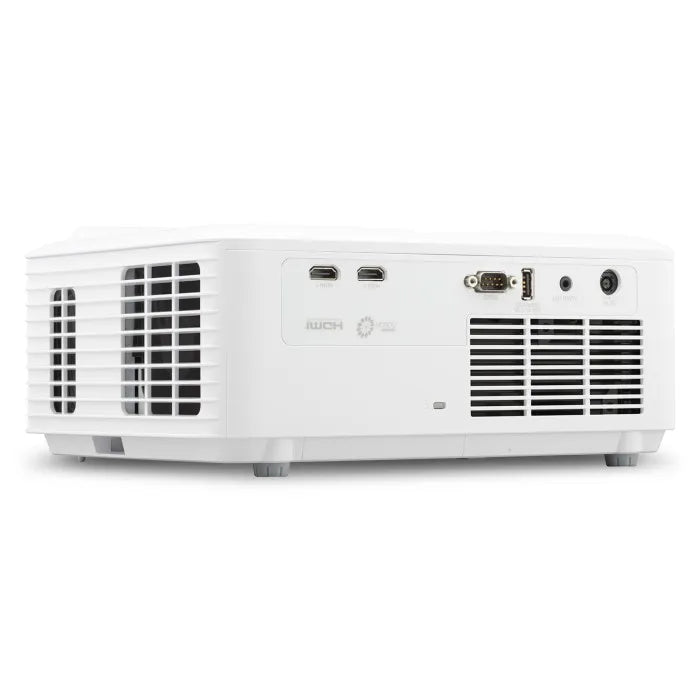

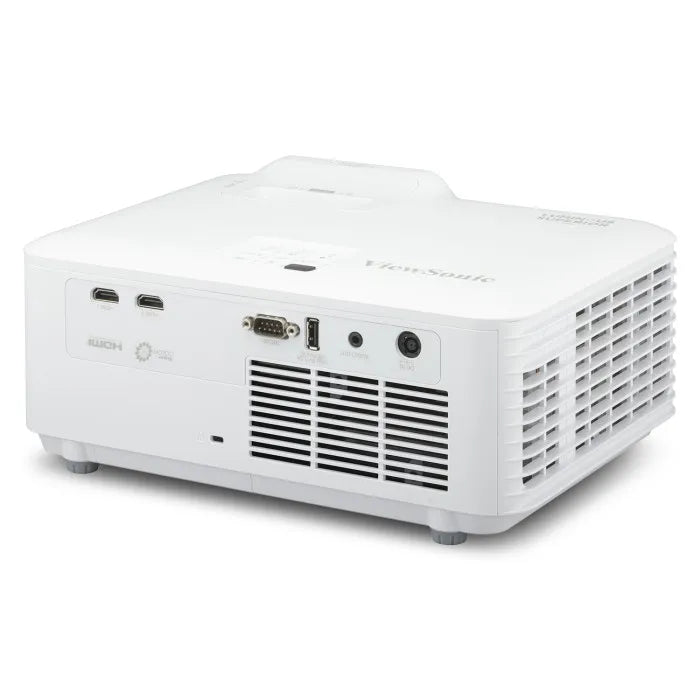

| Inputs | 2x HDMI 1.4 (HDCP 1.4), RS232, Audio In |
| Outputs | 3.5mm Audio, USB-A (5V/1.5A) |
| Dimensions (WxDxH) | 11.3 x 8.5 x 5.0 inches |
| Weight | 6.6 lbs |
