ViewSonic CDE8630 86″ 4K UHD Commercial Presentation Display - Discontinued

Product Overview

The ViewSonic CDE8630 is an 86-inch 4K commercial digital signage display designed for 24/7 continuous operation in corporate lobbies, large conference rooms, command centers, and public venue environments. Unlike interactive flat panels, the CDE8630 is a non-touch commercial display optimized for content presentation, digital signage, and video wall configurations rather than user annotation.

The CDE8630 runs Android 11 on an Amlogic T982 quad-core 1.5GHz processor with 4GB DDR4 RAM and 32GB storage, delivering on-board media playback and app execution without an external media player. It is certified for Crestron Connected V2, AMX, and Extron AV control system integration, making it compatible with existing enterprise AV control infrastructure. The display supports multi-screen video wall tiling of up to 9 screens via HDMI in/out without an external HDMI matrix, and features Picture-in-Picture (PiP) and Picture-by-Picture (PbP) for simultaneous dual-source display.

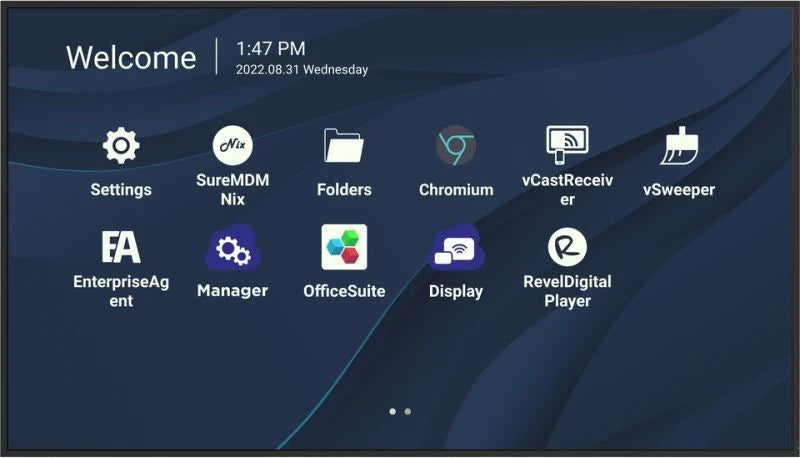

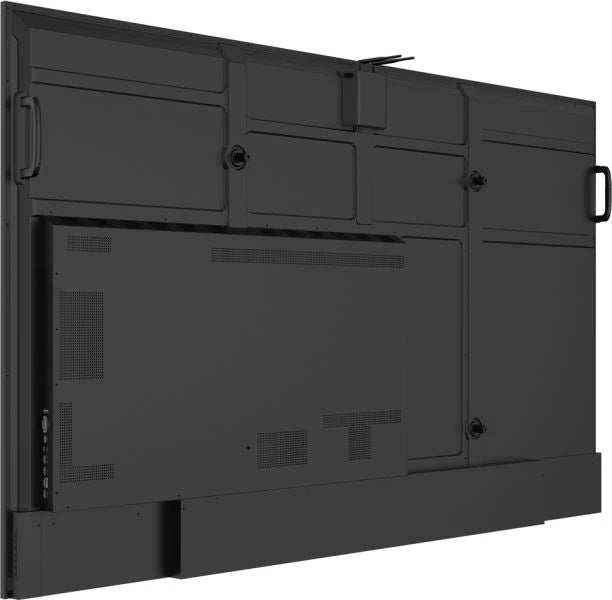

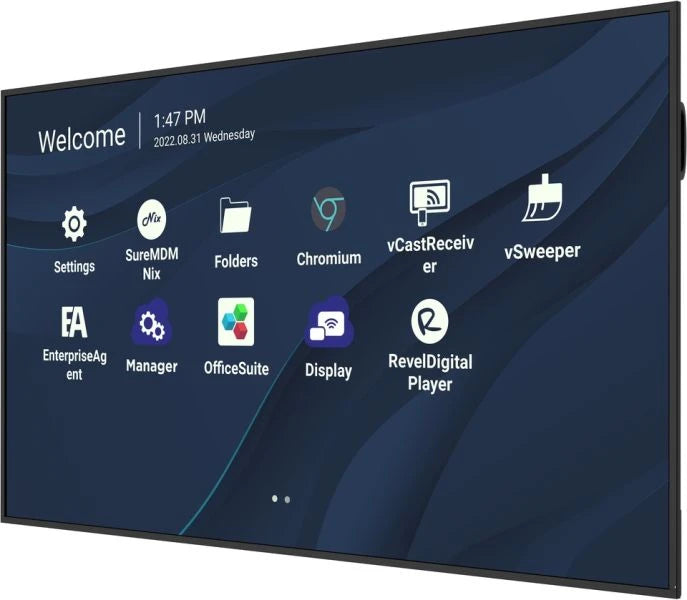

Product Images

Key Features

• 86" 4K ADS Panel, 450 nits — DLED backlight, 1200:1 contrast, anti-glare 3H haze 25% surface; rated for 24/7 continuous operation
• Crestron Connected V2 + AMX + Extron Certified — full AV control system integration for on/off, input switching, volume, and status monitoring from existing control systems
• Video Wall Tiling up to 9 Screens — 1x2, 2x2, 3x3, and other configurations via HDMI In/Out daisy-chain without an external HDMI matrix switch
• Android 11, Amlogic T982, 4GB RAM, 32GB — on-board media playback and digital signage app execution without external media player hardware
• 3x HDMI 2.1 In + HDMI ARC Out + HDMI 2.0 Out — comprehensive video routing for complex AV installations
• SPDIF Optical Audio Output — for connection to audio DSPs and external speaker systems
• Picture-in-Picture / Picture-by-Picture — display two independent sources simultaneously
• USB-C Input — single-cable laptop connection for presenter-driven content
• 10W x2 Internal Speakers — for applications not requiring external audio amplification

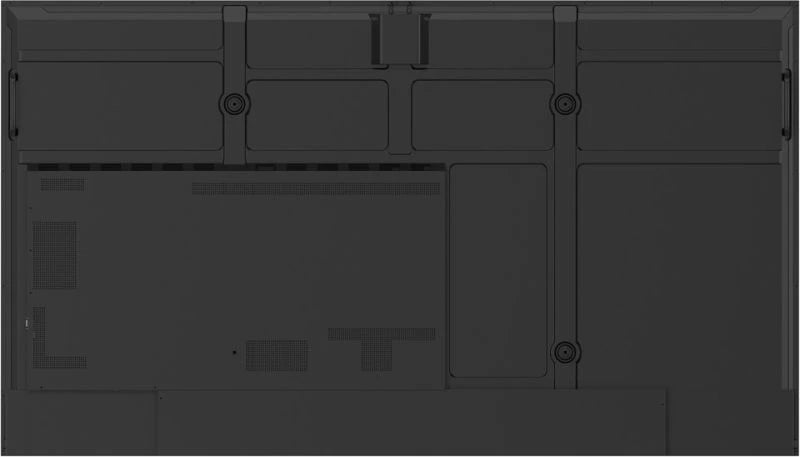

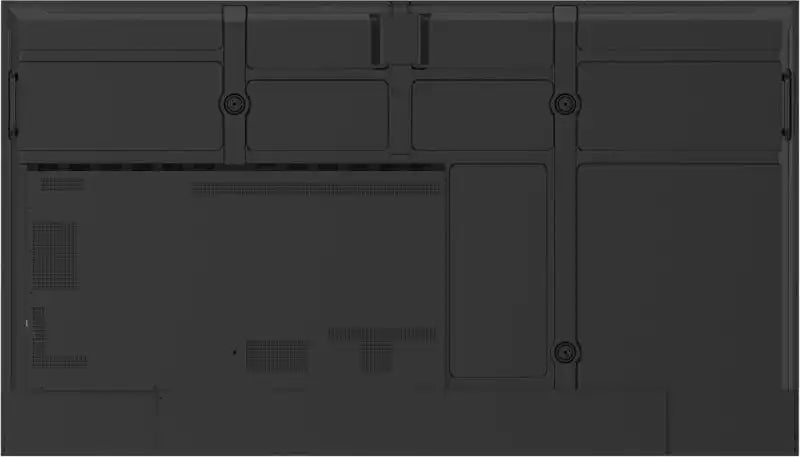

• VESA 800x600mm, 43.2 kg
• 3-Year Onsite Warranty

Typical Applications

• Corporate lobby and reception area digital signage
• Large executive conference rooms and boardrooms (non-touch)
• Control rooms, NOCs, and command center video walls
• University auditorium and large lecture hall displays
• Airport, transit, and public venue information displays requiring 24/7 operation

Technical Specifications

Frequently Asked Questions

What AV control protocols does the CDE8630 support?

The CDE8630 is certified for Crestron Connected V2 (backward-compatible with Crestron V1), AMX, and Extron. These certifications mean control system programmers can use tested, manufacturer-verified drivers for power control, input switching, volume adjustment, and status feedback. Crestron Connected V2 is compatible with XiO Cloud for cloud-based device management.

How does the video wall tiling work without an external matrix switch?

The CDE8630 uses HDMI Out for daisy-chain tiling. The source signal enters the first display via HDMI In and is passed to the next display via HDMI Out, continuing through the chain. The display's OSD tiling settings define the grid position and frame compensation. This eliminates the need for an external HDMI matrix switch for configurations up to 9 screens (3x3). For larger configurations or complex routing, an external matrix may still be required.

Does the CDE8630 require an external media player?

No. The CDE8630 includes an embedded Android 11 platform with 4GB RAM and 32GB storage that can run digital signage applications natively. ViewSonic provides a 30-day trial of cloud-based CMS software. For enterprise deployments, ViewSonic Signage Manager (SW-216) is available for local content push with a perpetual license. An external media player (NMP series) can also be connected via HDMI if preferred.

Is the CDE8630 available in a touch version?

No. The CDE8630 is a non-touch commercial display. For an 86-inch interactive touch display, ViewSonic offers the IFP8652 ViewBoard series. Contact Creation Networks for a comparison and recommendation.
