ViewSonic CDE7530 75″ 4K UHD Commercial Presentation Display
Product Overview

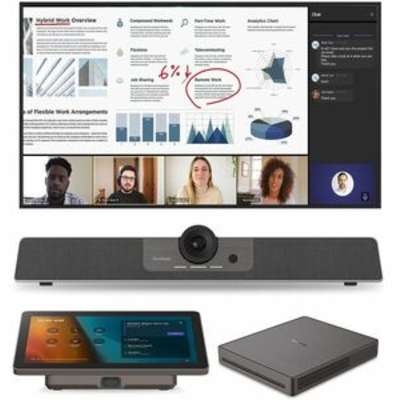

The ViewSonic TeamJoin TRS10-UB CDE7530-MTRC is a Microsoft Teams Rooms certified all-in-one bundle that includes everything needed for a complete video conferencing room: the 75-inch CDE7530 4K UHD display, MPC310-W31-TU compute engine, MRC1010-TN touch console, and the UMB202 4K video bar. This four-component MTRC bundle eliminates the need to source a separate camera or audio device, making it the definitive plug-and-play Teams Rooms solution for medium conference rooms and boardrooms.
Bundle Components
- CDE7530 — 75-inch, 4K UHD (3840×2160), ADS panel, 450 nits, 24/7 rated commercial display
- MPC310-W31-TU — Intel 12th Gen Core i3-1220P compute engine, Windows 11 IoT Enterprise, TPM 2.0, Wi-Fi 6, Bluetooth 5.2
- MRC1010-TN — 10.1-inch Full HD touch scheduling console, HDMI BYOD ingest, human presence auto-wake
- UMB202 — 4K video bar, 120° FOV Sony sensor, AI auto-framing, 5× digital zoom, 6-mic beamforming array, 8W+3W speakers
Product Description
The CDE7530-MTRC delivers a fully integrated Teams Rooms experience by adding the UMB202 4K video bar to the proven TRS10 MTR hardware stack. The UMB202 captures 4K video with a Sony image sensor, AI-driven auto-framing that keeps all participants in frame, Direction-of-Arrival (DOA) voice tracking across its 6-mic array, and 8W+3W built-in speakers—eliminating the need for a separate speakerphone or camera. The CDE7530 display provides 450 nits of brightness on a commercial-grade ADS LCD panel rated for 24/7 operation. The MPC310-W31-TU compute engine runs Microsoft Teams Rooms on Windows 11 IoT Enterprise with Intel 12th Gen Core performance and TPM 2.0 security. The MRC1010-TN touch console handles scheduling, one-touch join, and presence-based auto-wake. This bundle is purpose-built for IT managers who need a verified, single-vendor Teams Rooms deployment for medium conference rooms seating up to 14 people.
Key Features
- Microsoft Teams Rooms Certified (MTRC) — Complete four-component certified stack including video bar—no additional hardware required.
- UMB202 4K Video Bar — Sony sensor, 120° FOV, AI auto-framing, 5× digital zoom, ePTZ, DOA voice tracking.
- 6-Mic Beamforming Array — Captures clear audio across the room; 8W+3W speakers provide natural room audio.
- 75-inch 4K ADS Display — 450 nits, 1200:1 contrast, anti-glare, landscape and portrait support.
- Intel 12th Gen Core + TPM 2.0 — Enterprise security and performance for IT-managed MTR deployments.
- BYOD HDMI Ingest — Touch console accepts guest laptop content without software or adapters.
- Human Presence Auto-Wake — System activates on room entry; reduces idle energy consumption.
Typical Applications
- Medium conference rooms (8–14 seats) requiring full video conferencing
- Boardrooms and executive meeting spaces
- Hybrid collaboration rooms in corporate offices
- Government and education conference facilities
- Enterprise rollouts requiring single-vendor certified Teams Rooms kits
System Specifications
| Display Size | 75 inches |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness | 450 nits (typical) |
| Panel Type | ADS with DLED backlight |
| Backlight Life | 50,000 hours |
| Operation Rating | 24/7 |
| Compute Engine | MPC310-W31-TU — Intel Core i3-1220P, 12th Gen, 8GB DDR4 |
| Operating System | Windows 11 IoT Enterprise (MTR pre-installed) |
| Security | TPM 2.0, Intel Threat Detection, Smart App Control |
| Connectivity | HDMI Out, USB-C (PD+data), USB 3.0, RJ45, Wi-Fi 6, BT 5.2 |
| Touch Console | MRC1010-TN — 10.1" FHD, 10-pt touch, HDMI BYOD ingest |
| Video Bar Camera | UMB202 — 4K UHD, Sony sensor, 120° FOV, 5× zoom, ePTZ, auto-framing |
| Microphone | 6-element array with DOA tracking (UMB202) |
| Speakers | 8W + 3W front-facing (UMB202) |
| Certification | Microsoft Teams Rooms Certified |
| Warranty | 3-year limited |
Frequently Asked Questions
Q: Does this bundle include everything needed for video conferencing?
A: Yes. The MTRC bundle includes the display, compute engine, touch console, and UMB202 4K video bar with camera, microphone array, and speakers. A Microsoft Teams Rooms license and network connection are the only remaining requirements.
Q: What room size does the CDE7530-MTRC suit?
A: The 75-inch display is ideal for medium rooms seating 8–14 people. The UMB202 video bar’s 120° field of view covers most conference table configurations.
Q: How does the UMB202 handle audio in large rooms?
A: The UMB202 uses a 6-microphone beamforming array with Direction-of-Arrival tracking to focus on the active speaker and suppress background noise. The 8W+3W speakers provide room-filling audio for typical conference room sizes.
Q: What warranty is included?
A: All four components carry a 3-year limited ViewSonic warranty. Creation Networks provides first-line support.
Q: Is a Teams Rooms license required?
A: Yes. A Microsoft Teams Rooms Standard or Premium license must be assigned to the room account before the MTR software will operate.
