ViewSonic TeamJoin TRS10‑MTR Bundle with CDE7530 75″ 4K Display – Includes MPC310‑W31‑TU Compute Engine & MRC1010‑TN Touch Console
ViewSonic TeamJoin TRS10‑MTR Bundle with CDE7530 75″ 4K Display – Includes MPC310‑W31‑TU Compute Engine & MRC1010‑TN Touch Console is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
ViewSonic TeamJoin TRS10‑MTR Bundle with CDE7530 75″ 4K Display – I...
Product Overview
The ViewSonic TeamJoin TRS10 CDE7530-MTR is a Microsoft Teams Rooms certified conference room bundle pairing the 75-inch CDE7530 4K UHD commercial display with the MPC310-W31-TU compute engine and MRC1010-TN touch console. This three-component certified stack delivers a complete MTR deployment for medium conference rooms and boardrooms, with no additional hardware required. The bundle ships with Windows 11 IoT Enterprise and Teams Rooms pre-installed, allowing IT to complete room provisioning in a single session.

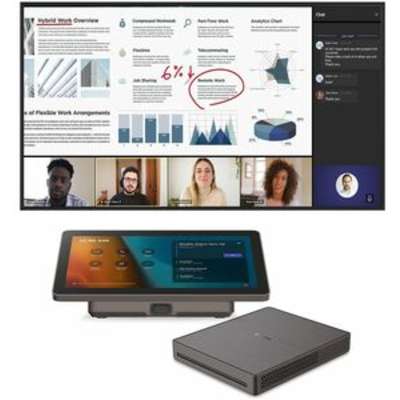

Bundle Components
- CDE7530 — 75-inch, 4K UHD (3840×2160), ADS panel, 450 nits, 24/7 rated commercial display
- MPC310-W31-TU — Intel 12th Gen Core i3-1220P compute engine, Windows 11 IoT Enterprise, TPM 2.0, Wi-Fi 6, Bluetooth 5.2
- MRC1010-TN — 10.1-inch Full HD touch scheduling console, PoE powered, HDMI BYOD ingest, human presence auto-wake
Product Description
The CDE7530 features a commercial-grade ADS LCD panel with 450 nits of brightness, 1200:1 contrast ratio, and 50,000-hour backlight life—rated for 24/7 operation. The embedded Android 11 SoC platform supports wireless content sharing from the display's native OS, separate from the MTR compute engine. The MPC310-W31-TU runs the full Microsoft Teams Rooms software stack with Intel 12th Gen Core processing, TPM 2.0 security, Wi-Fi 6 connectivity, and Bluetooth 5.2—providing enterprise-grade performance and manageability. The MRC1010-TN touch console displays the room calendar, enables one-touch meeting join, accepts BYOD presentations via HDMI, and wakes the system when presence is detected. This bundle is ideal for medium conference rooms seating 8–14 people, corporate boardrooms, and hybrid collaboration environments where Microsoft Teams Rooms certification is a procurement requirement.
Key Features
- Microsoft Teams Rooms Certified — Full MTR certification for native Teams experience with enterprise licensing compatibility.
- 75-inch 4K UHD ADS Display — 3840×2160, 450 nits, anti-glare, 178° viewing angles, landscape and portrait modes.
- Intel 12th Gen Core i3-1220P — 10-core architecture, 8GB DDR4, Intel UHD Graphics, Wi-Fi 6, Bluetooth 5.2.
- TPM 2.0 + Intel Threat Detection — Hardware-enforced security for enterprise IT compliance and device management.
- BYOD HDMI Ingest — Touch console accepts laptop video input without software or adapters for guest presentations.
- Human Presence Detection — System auto-wakes when participants enter the room, auto-sleeps when empty.
- 24/7 Commercial Operation — Built for continuous use; 50,000-hour backlight life for long-term ROI.
Typical Applications
- Medium corporate conference rooms (8–14 seats)
- Executive boardrooms
- Hybrid and remote-first collaboration spaces
- Government agency meeting rooms
- Corporate AV standardization rollouts
System Specifications
| Display Size | 75 inches |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness | 450 nits (typical) |
| Contrast Ratio | 1200:1 typical / 5000:1 dynamic |
| Panel Type | ADS with Direct-LED backlight |
| Response Time | 8 ms |
| Viewing Angles | 178° H / 178° V |
| Backlight Life | 50,000 hours |
| Operation Rating | 24/7 |
| Orientation | Landscape and Portrait |
| Compute Engine | MPC310-W31-TU — Intel Core i3-1220P, 12th Gen |
| Memory | 8GB DDR4 (Dual Channel) |
| Operating System | Windows 11 IoT Enterprise (MTR pre-installed) |
| Security | TPM 2.0, Intel Threat Detection, Smart App Control |
| Connectivity | HDMI Out, USB-C (PD + data), USB 3.0, RJ45, Wi-Fi 6, Bluetooth 5.2 |
| Touch Console | MRC1010-TN — 10.1" Full HD, 10-point touch, HDMI BYOD ingest |
| Certification | Microsoft Teams Rooms Certified |
| Warranty | 3-year limited |
Frequently Asked Questions
Q: Does this bundle require a Microsoft Teams Rooms license?
A: Yes. A Teams Rooms Standard or Premium license must be assigned to the room account. The hardware ships with the MTR application pre-installed on Windows 11 IoT Enterprise.
Q: What room size is the CDE7530-MTR designed for?
A: The 75-inch display is suited for medium conference rooms seating 8–14 people at viewing distances of 8–20 feet.
Q: How quickly can IT deploy this bundle?
A: With MTR pre-installed and TPM 2.0 provisioning support, most deployments complete in under 30 minutes per room, including mounting, cabling, account sign-in, and policy configuration via Intune.
Q: What warranty does this bundle carry?
A: All three components carry a 3-year limited warranty from ViewSonic. Creation Networks provides first-line support and warranty coordination.
Q: Does this bundle include a camera and microphone?
A: No. The TRS10 MTR bundle does not include a video bar or audio device. Add a certified USB camera and speakerphone, or consider the CDE7530-MTRC bundle which includes the UMB202 4K video bar with a 6-mic array and built-in speakers.
