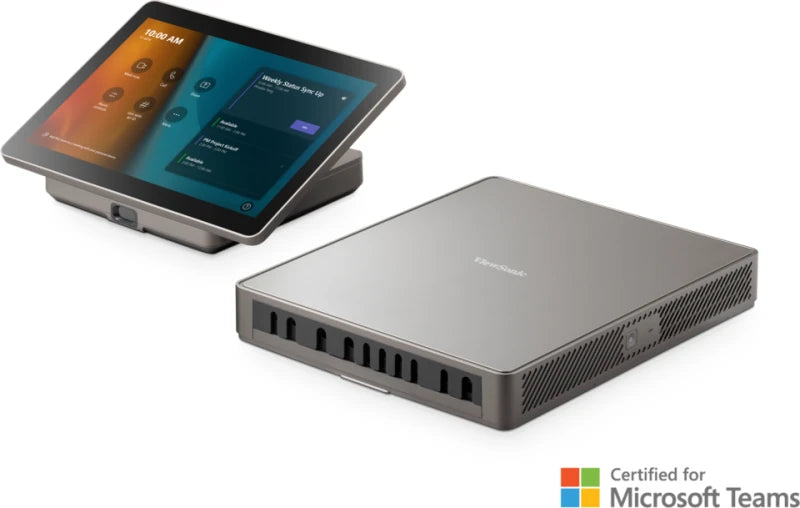

ViewSonic TeamJoin TRS10 Bundle for Microsoft Teams Rooms – Includes MPC310‑W31‑TU Compute Engine & MRC1010‑TN 10.1″ Touch Console - Discontinued

Product Overview

The ViewSonic TeamJoin TRS10 is a Microsoft Teams Rooms certified bundle combining the MPC310-W31-TU Intel 12th Gen compute engine and MRC1010-TN 10.1-inch touch console into a compact, cost-effective MTR deployment kit. Designed for organizations that already have a compatible display or want to pair this kit with an existing screen, the TRS10 delivers the complete certified compute and console stack for a Teams Rooms room. Windows 11 IoT Enterprise with Microsoft Teams Rooms is pre-installed for zero-complexity provisioning.

Bundle Components

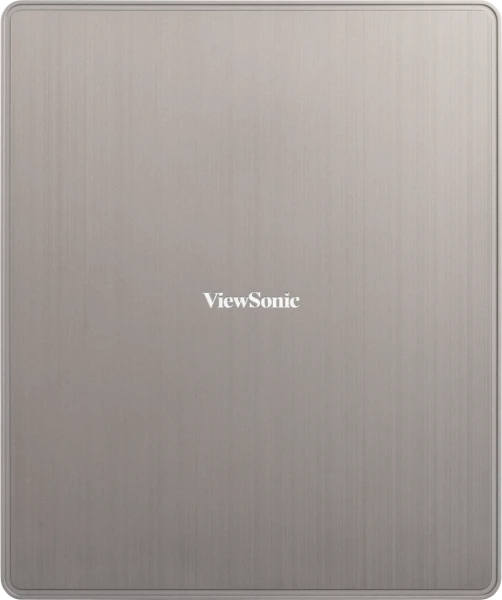

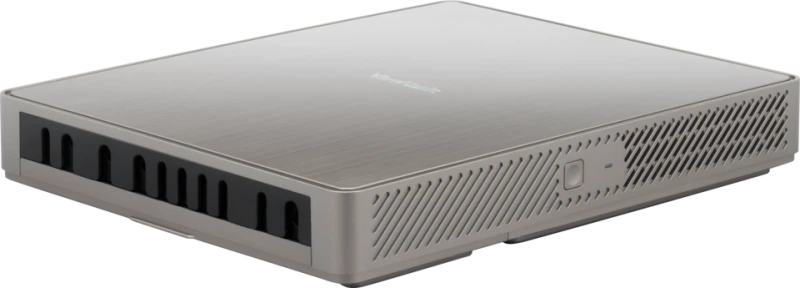

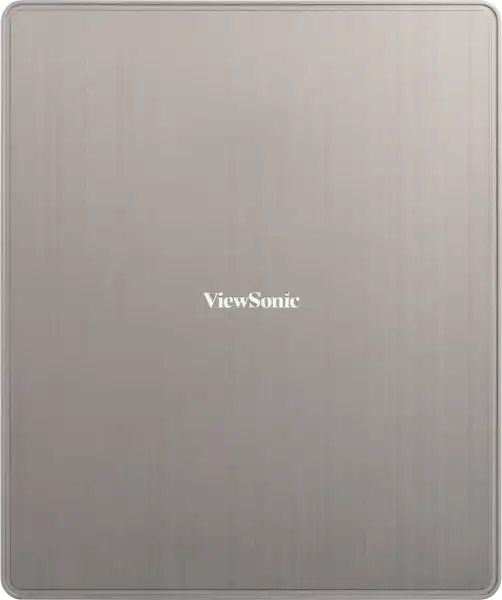

• MPC310-W31-TU — Intel 12th Gen Core i3-1220P compute engine, Windows 11 IoT Enterprise (MTR pre-installed), TPM 2.0, Wi-Fi 6, Bluetooth 5.2

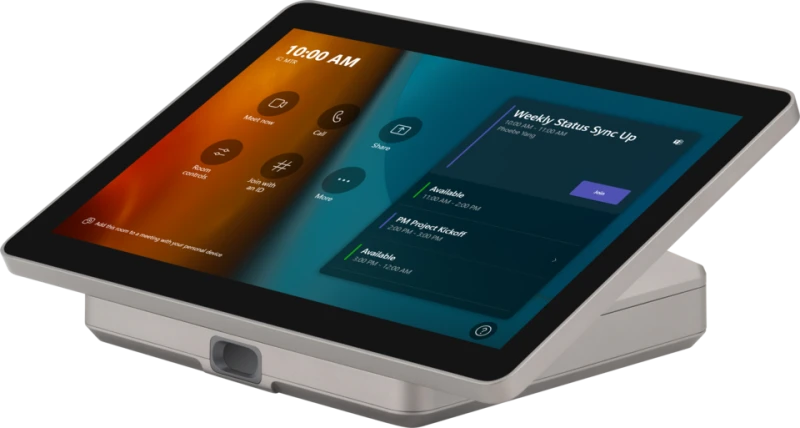

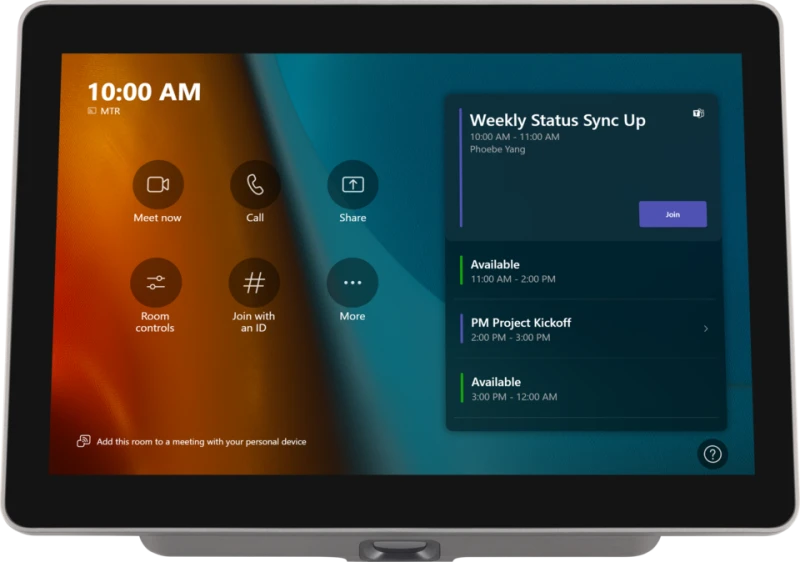

• MRC1010-TN — 10.1-inch Full HD touch scheduling console, PoE powered, HDMI BYOD ingest, human presence auto-wake

Product Description

The ViewSonic TeamJoin TRS10 is the core MTR hardware kit—compute engine and touch console—that powers certified Teams Rooms deployments across any room size when paired with a compatible display. The MPC310-W31-TU compute engine runs on an Intel 12th Gen Core i3-1220P processor (10 cores, up to 4.4GHz turbo), with 8GB DDR4, Intel UHD Graphics, and a full enterprise security stack including TPM 2.0, Intel Threat Detection Technology, and Smart App Control. It connects via Wi-Fi 6 and Bluetooth 5.2 with USB 3.0, USB-C (Power Delivery + data), HDMI out, and RJ45. The MRC1010-TN touch console provides a 10.1-inch Full HD anti-glare display for room scheduling and meeting control, with HDMI ingest for BYOD laptop presentations and a human presence sensor that automatically wakes the system when participants enter the room. The compact form factor supports table-top, wall-mount, and under-table bracket installation options. This bundle is ideal for small to medium conference rooms, huddle spaces, and hybrid collaboration environments where a cost-effective, scalable Teams Rooms deployment is the goal.

Key Features

• Microsoft Teams Rooms Pre-installed — Windows 11 IoT Enterprise with MTR ready to go; account sign-in and policy push are the only steps remaining.
• Intel 12th Gen Core i3-1220P — 10 cores, 4.4GHz turbo, 8GB DDR4, Intel UHD Graphics for smooth Teams Rooms performance.
• TPM 2.0 Enterprise Security — Intel Threat Detection, Smart App Control, Control-Flow Enforcement; Intune and SCCM compatible.
• 10.1-inch Touch Console — Full HD scheduling display with BYOD HDMI ingest, 10-point capacitive touch.
• Human Presence Auto-Wake — System activates on room entry; enters standby when empty for energy savings.
• Wi-Fi 6 + Bluetooth 5.2 — High-speed wireless connectivity for both the compute engine and peripheral pairing.
• Flexible Mounting — Table-top, wall-mount, or under-table bracket options for clean room installations.

Typical Applications

• Small to medium conference rooms (use with compatible display)
• Huddle rooms and focus spaces
• Hybrid collaboration rooms in corporate offices
• Organizations upgrading existing displays to Teams Rooms certified
• IT departments standardizing MTR deployments across multiple rooms
