Vaddio RoboSHOT IW Smart Glass OneLINK HDMI - In-Wall PTZ Camera System (Black)

Product Overview

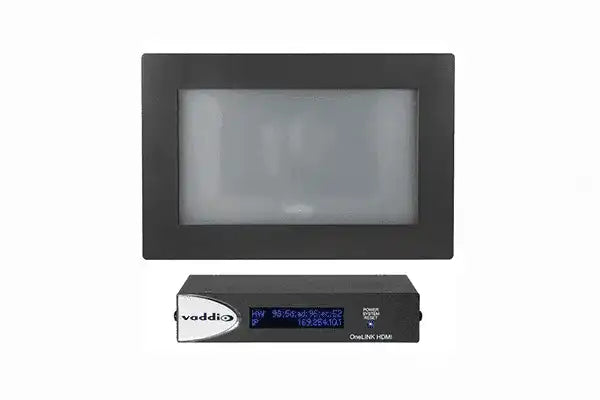

The Vaddio RoboSHOT In-Wall Smart Glass OneLINK HDMI System (Black, 999-9965-100) is a semi-flush in-wall PTZ camera designed for boardrooms, executive conference rooms, law offices, and corporate meeting spaces where interior design and cable management are priorities. The camera is enclosed in a black semi-flush wall mount with a smart glass panel that shifts from frosted-opaque when the camera is off to fully clear when powered on. Paired with the OneLINK HDMI interface, this system delivers HDMI video, power, and bidirectional control from camera to rack over a single Ethernet cable up to 328 feet, with no additional cabling required.

Product Description

This in-wall PTZ camera system is built around the Vaddio RoboSHOT HDBaseT camera body in a semi-flush black wall enclosure with a smart glass panel. The OneLINK HDMI interface transmits HDMI video at up to 1080p/60 and provides camera power and RS-232 or IP control — all over a single Cat-5e or Cat-6 Ethernet cable. For rooms that primarily need HDMI output for a display or video switching system, this is a clean, single-cable in-wall PTZ solution that maintains the room's architectural finish.

The black finish integrates naturally into standard commercial interior spaces. The smart glass panel is an elegant status indicator: opaque when the camera is idle, transparent when active — giving room occupants a clear visual cue without an LED or indicator light. For installations requiring simultaneous USB, IP streaming, and HD-SDI outputs in addition to HDMI, the OneLINK Bridge version of this product provides those additional capabilities. The HDMI version is the right choice when HDMI output to a codec, display processor, or switcher is the primary integration requirement.

Key Features

• Smart Glass Panel - Frosted-opaque when off, transparent when on, providing a non-intrusive visual status indicator for conference room use.
• Black Finish - Standard black semi-flush wall mount for clean integration into commercial interiors.
• Single-Cable HDBaseT - Power, HDMI video, and bidirectional control over one Cat-5e or Cat-6 cable up to 328 feet.
• OneLINK HDMI Interface - HDMI output up to 1080p/60 from the in-wall camera to a connected display, codec, or switcher.
• 1080p/60 Resolution - Full HD video for sharp, high-quality conference room imaging.
• RS-232 and IP Control - Compatible with Crestron, AMX, Extron, Q-SYS, and other commercial room control systems.
• Web UI and Telnet Control - Remote administration and camera configuration via browser or Telnet interface.

Typical Applications

• Boardroom
• Conference room
• Commercial meeting space
• Government space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

What cable is required for installation?
A single Cat-5e or Cat-6 Ethernet cable carries power, HDMI video, and bidirectional control to the camera. Runs up to 328 feet are supported.

Can this camera integrate with Crestron or AMX?
Yes. The system supports RS-232 and IP (Ethernet/Telnet) bidirectional control for integration with Crestron, AMX, Extron, Q-SYS, and most commercial control platforms.

What is the difference between the OneLINK HDMI and OneLINK Bridge versions?
The OneLINK HDMI version (this product) provides HDMI output only, suited for installations feeding an HDMI input on a codec or switcher. The OneLINK Bridge version adds simultaneous USB 3.0, IP streaming, HD-SDI, and a configurable audio matrix with AEC — better suited for multi-output or USB conferencing deployments.

Does the smart glass panel affect image quality?
No. The glass panel is engineered to be fully transparent when the camera is powered on, with no measurable impact on image quality in normal installation conditions.

What warranty is included?
Vaddio products typically carry a 3-year limited warranty. Contact Creation Networks for details and support.
