Tripp Lite B070-016-19 – 16-Port 1U Rackmount Cat5 KVM Console with 19" LCD

Product Overview

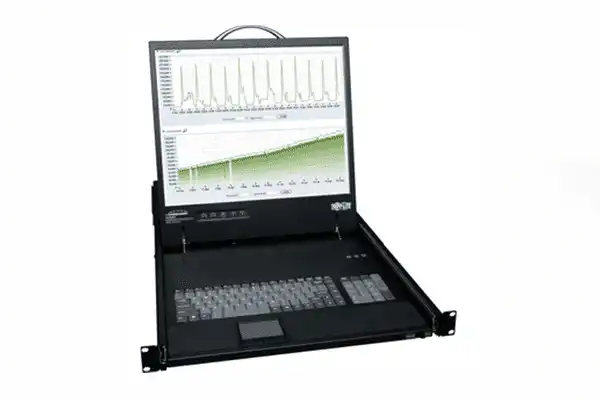

The Tripp Lite B070-016-19 NetCommander 16-Port Rackmount Cat5 KVM Console integrates a 19-inch LCD display, keyboard, and touchpad into a 1U rack-mount drawer that controls up to 16 servers or computers over standard Cat5e/6/6a cabling. Designed for data centers, server rooms, and enterprise IT environments, this Cat5 KVM console supports connections to servers located up to 100 feet away from the switch, reducing cable clutter and enabling flexible rack deployments. Port switching is managed through the on-screen display (OSD) or keyboard hot keys, and multi-level password protection restricts access to authorized users. The unit is TAA compliant for GSA Schedule procurement.

Product Description

The B070-016-19 uses Cat5e/6/6a cabling and separately purchased Server Interface Units (SIUs) to connect to each managed computer, allowing the use of low-cost, widely available structured cabling rather than proprietary KVM cables. This approach significantly reduces cable bulk in the rack compared to traditional analog KVM solutions, and it supports server connections at distances up to 100 feet from the console, providing greater flexibility in rack and data center layouts.

The integrated 19-inch LCD supports video resolutions up to 1366 x 768 (WXGA), providing a clear, wide display for server management tasks. The drawer design stores the keyboard in the rack when not in use, and the LCD pivots for access. Daisy-chain capability enables expansion beyond 16 ports by cascading additional compatible KVM units. For users requiring remote access, the Tripp Lite B051-000 IP Remote Access Unit (sold separately) can be added to enable Internet-based server management from any location.

The B070-016-19 is compatible with all major operating systems and meets UL 60950-1, CAN/CSA, FCC Part 15 Class A, CE, and RoHS certifications. Heavy-duty steel housing supports reliable operation in high-use commercial environments.

Key Features

• 16-Port Cat5 KVM Console in 1U — Controls up to 16 servers from a single rack-mount unit using Cat5e/6/6a cabling, consolidating all server management into one 1U drawer.
• 19-Inch WXGA LCD Display — Integrated 19-inch LCD supports resolutions up to 1366 x 768 for clear, detailed server management visibility.
• Cat5 Cabling for Long-Distance Connections — Uses standard Cat5e/6/6a cable and Server Interface Units to connect servers up to 100 feet away, reducing cable bulk and enabling flexible rack configurations.
• On-Screen Display (OSD) Port Switching — Switch between connected servers using the OSD menu or keyboard hot keys, with multi-level password protection to restrict unauthorized access.
• Daisy-Chain Expandability — Supports daisy-chaining with compatible KVM units to manage more than 16 servers from the same console without additional hardware overhead.
• IP Remote Access Ready — Compatible with the Tripp Lite B051-000 IP Remote Access Unit (sold separately) to enable remote server management over LAN, WAN, or Internet.
• TAA Compliant — Meets Trade Agreements Act requirements, making it eligible for GSA Schedule and federal government procurement programs.
• Heavy-Duty Steel Housing — Commercial-grade construction supports reliable operation in high-use server room and data center environments.

Typical Applications

• Data center server room management
• Enterprise network operations centers
• Government and federal IT server infrastructure
• Commercial IT server closets and wiring rooms

Technical Specifications

Frequently Asked Questions

What cabling and accessories do I need to connect servers to the B070-016-19?

You need user-supplied Cat5e, Cat6, or Cat6a patch cables and a Tripp Lite Server Interface Unit (SIU) for each connected server. The SIU connects between the server's keyboard, video, and mouse ports and the Cat5 cable run. Contact Creation Networks for help selecting the correct SIU model for your servers.

How far away from the console can the connected servers be?

Servers can be located up to 100 feet (approximately 30 meters) from the B070-016-19 console using Cat5e/6/6a cabling and Server Interface Units. This flexibility supports deployments where servers are spread across multiple rack positions or adjacent rooms.

Can I add remote access to the B070-016-19?

Yes. The Tripp Lite B051-000 IP Remote Access Unit is compatible with the B070-016-19 and enables Internet-based remote management of all connected servers from any location via a web browser.

Can I manage more than 16 servers from this console?

Yes. The B070-016-19 supports daisy-chaining with compatible KVM units to expand the number of manageable servers beyond 16 from the same console interface.

Is this product eligible for government procurement?

Yes. The B070-016-19 is TAA (Trade Agreements Act) compliant, qualifying it for GSA Schedule purchases and other federal government procurement programs.

What operating systems are compatible with this KVM console?

The B070-016-19 is compatible with all major operating systems, including Windows, Linux, and other OS platforms supported by the connected Server Interface Units.
