Tripp Lite B005-HUA4 – 4-Port HDMI KVM Switch 4K 60Hz HDR

Product Overview

The Tripp Lite B005-HUA4 is a commercial-grade 4-port HDMI KVM switch that allows a single operator to control four computers from one HDMI monitor, USB keyboard, and USB mouse. Supporting true 4K resolution at 60 Hz with HDR and HDCP 2.2 compliance, the B005-HUA4 is suited for professional workstations, multi-computer operator stations, and AV system integration environments where high-fidelity 4K HDMI switching is required. The integrated dual USB 3.0 hub enables peripheral sharing across all connected systems, reducing hardware duplication in shared workspace deployments. With switching via front-panel buttons, hotkeys, mouse commands, or included IR remote, this 4-port HDMI USB KVM switch provides flexible control in broadcast, IT lab, and commercial AV installations.

Product Description

The B005-HUA4 connects four HDMI-equipped computers, media devices, or AV systems to a single HDMI console consisting of one monitor, one USB keyboard, and one USB mouse. The switch supports HDMI 2.0 video resolutions up to 4096 x 2160 at 60 Hz with 4:4:4 chroma subsampling, delivering accurate color reproduction critical for professional video editing, digital signage content preview, and demanding display applications. HDR support expands the dynamic range of the video signal, producing richer contrast and more accurate color on compatible HDR displays.

HDCP 2.2 compliance enables protected content playback from streaming services and Blu-ray sources connected through the switch. The switch includes two USB 3.0 hub ports on the front panel that allow shared peripherals—printers, external hard drives, scanners, webcams, and flash drives—to be accessed by any connected computer. The USB hub is backward compatible with USB 1.1 devices.

Switching between connected computers is accomplished through multiple methods: front-panel push buttons, keyboard hotkey sequences, mouse movement triggers, or the included IR remote control. The Auto Scan feature steps through all connected computers at five-second intervals for monitoring applications. Front-panel LEDs identify the currently active computer at a glance.

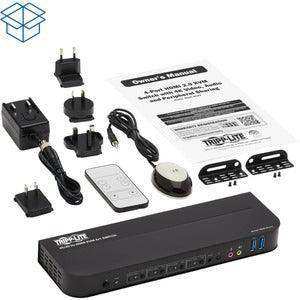

The heavy-duty metal housing includes mounting brackets for permanent wall or under-desk installation. The included DC power supply connects to any standard AC outlet, and the plug-and-play design requires no driver installation. The B005-HUA4 is compatible with Windows, macOS, and Linux operating systems and is backed by a Tripp Lite 3-year limited warranty.

Key Features

• True 4K at 60 Hz (4:4:4) — Supports HDMI 2.0 resolutions up to 4096 x 2160 at 60 Hz with full 4:4:4 chroma subsampling for accurate color in professional display and video editing environments.
• HDR Support — Carries High Dynamic Range signals for expanded contrast and color accuracy on HDR-capable displays.
• HDCP 2.2 Compliance — Allows protected 4K streaming content from Amazon, Netflix, and Blu-ray sources to pass through without complications.
• Dual USB 3.0 Hub Ports — Two front-panel USB 3.0 ports let all connected computers share peripherals including printers, external storage, webcams, and scanners; backward compatible with USB 1.1.
• Four Switching Methods — Operators can switch between computers using front-panel push buttons, keyboard hotkeys, mouse movement, or the included IR remote control for maximum flexibility.
• Auto Scan Mode — Automatically cycles through all connected computers at five-second intervals, useful for monitoring multiple systems simultaneously.

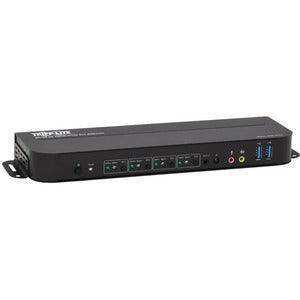

• Heavy-Duty Metal Housing with Mounting Brackets — Durable metal construction includes hardware for permanent wall or under-desk installation in professional environments.
• Plug-and-Play Operation — No driver installation required; compatible with Windows, macOS, and Linux out of the box.
• 7.1-Channel Audio Support — Passes 7.1-channel surround sound audio signals through the HDMI connection.
• 3-Year Limited Warranty — Tripp Lite backs the B005-HUA4 with a 3-year limited warranty.

Typical Applications

• Multi-computer operator workstations in broadcast control rooms, NOCs, and IT operations centers
• Commercial AV integration projects requiring 4K HDMI switching between multiple source computers
• Digital signage content management stations controlling multiple servers from a single console
• Post-production and video editing suites where operators switch between render nodes and editing workstations
• IT labs and server rooms where technicians access multiple machines from a single KVM console
• Education and training environments with multiple instructor workstations on a shared display

Technical Specifications

Frequently Asked Questions

Does the B005-HUA4 support dual-monitor setups?

No. The B005-HUA4 is a single-display KVM switch with one HDMI output. It connects one HDMI monitor to up to four computers. For dual-display configurations, Tripp Lite offers the B006-HD2UA4 or similar dual-display KVM models.

Can this switch pass 4K content from streaming services like Netflix or Amazon Prime?

Yes. HDCP 2.2 compliance allows protected 4K streaming content to pass through the switch without signal interruption, provided the connected display and source device also support HDCP 2.2.

How does the IR remote work with the KVM switch?

The included IR remote allows you to switch between connected computers from a distance without reaching the front panel or using keyboard hotkeys. This is particularly useful in rack-mounted or under-desk installations where physical access to the unit is limited.

Is this switch compatible with gaming consoles or media players?

Yes. The B005-HUA4 works with any HDMI-equipped device, including gaming consoles, Blu-ray players, media centers, cable boxes, satellite receivers, and DVRs, in addition to desktop and notebook computers.

Does the USB 3.0 hub support USB-C peripherals?

The hub ports are USB 3.0 Type-A. USB-C peripherals require a USB-C to USB-A adapter to connect to the hub ports. The hub is backward compatible with USB 2.0 and USB 1.1 devices.

What operating systems are supported?

The B005-HUA4 is plug-and-play compatible with Windows, macOS, and Linux. No driver installation is required.

Can the switch be rack-mounted?

The B005-HUA4 includes brackets for wall or under-desk permanent installation. It is not designed as a rack-unit device, but it can be secured in a rack enclosure shelf if one is available.
