TOA Electronics SR-C Series Rigging Frame - SR-RF8
Product Overview

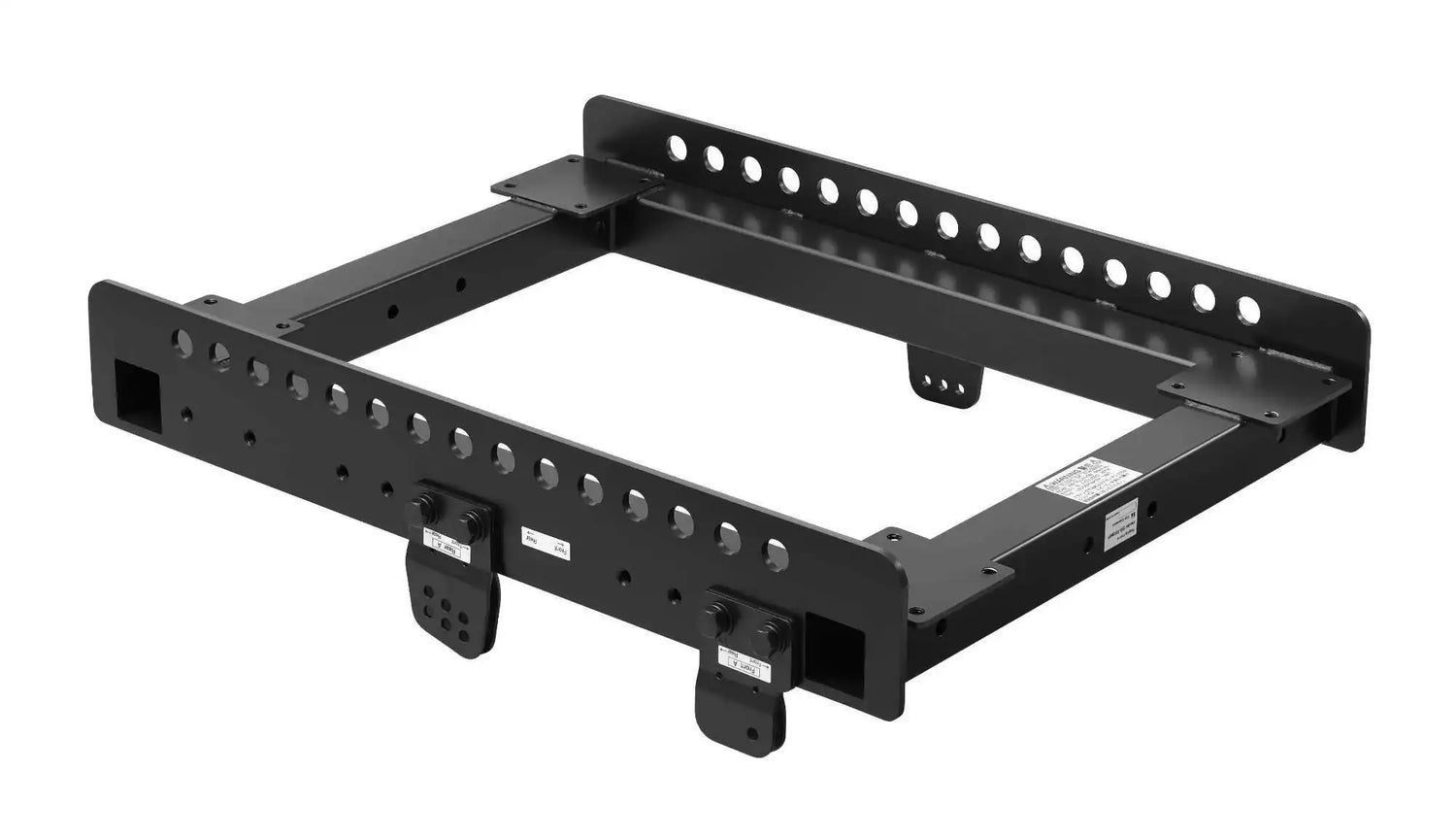

The TOA SR-RF8 is a steel rigging frame for flying or ground-stacking SR-C Series line array speakers in permanent and portable commercial AV installations. It supports the SR-C8L, SR-C8S, and SR-C15B, letting integrators build vertical arrays for an auditorium, house of worship, or multi-purpose room. A single frame handles up to 12 flown enclosures, providing a defined hang point for distributed line array coverage.
Product Description
The SR-RF8 is the primary suspension and stacking frame for the TOA SR-C Series compact line array system. In a flown configuration it carries a maximum of 12 speakers, and in a ground-stacked configuration it supports up to 8 enclosures, with the SR-C15B subwoofer counted as two units in both modes. The frame is fabricated from black-painted steel plate for the strength and finish required of overhead rigging hardware. It ships with the core mounting hardware needed for assembly, including twelve M10 plate mounting bolts, four fixing plates, and two sub-woofer receptacle pieces. When stacking six or more speakers, the optional SR-SB8 rigging support bracket is required to complete the assembly safely. The frame is dimensioned for the SR-C cabinets and aligns the array at the correct splay for consistent vertical coverage. For compatible enclosures and accessories, browse the TOA SR-C line array range at Creation Networks.
Key Features
- SR-C Series compatibility — Mounts the SR-C8L, SR-C8S, and SR-C15B line array speakers on a single frame.
- Flown capacity to 12 speakers — Supports a maximum of 12 enclosures in a flown array for large-room coverage.
- Ground-stack capacity to 8 speakers — Builds stacked arrays of up to 8 enclosures where flying is not practical.
- Black-painted steel construction — Provides the strength and matched finish required for overhead rigging hardware.
- Complete core hardware included — Ships with twelve M10 mounting bolts, four fixing plates, and two sub-woofer receptacle pieces.
- SR-SB8 support compatibility — Accepts the optional rigging support bracket required when stacking six or more speakers.
Typical Applications
- Auditorium
- House of worship
- Multi-purpose room
- Commercial meeting space
- Broadcast studio
Technical Specifications
| Compatible Speakers | SR-C8L, SR-C8S, SR-C15B |
| Number of Speakers (Flying) | Max. 12 (SR-C15B counted as 2) |
| Number of Speakers (Stacked) | Max. 8 (SR-C15B counted as 2) |
| Finish | Steel plate, black, paint |
| Dimensions | 510 (W) x 167 (H) x 690 (D) mm (20.08 x 6.58 x 21.17 in), excluding bolt |
| Weight | 18.5 kg (40.78 lb), including accessories |
| Included Accessories | Plate mounting bolt (M10) x12, Fixing plate x4, Sub-woofer receptacle piece x2 |
| Optional Accessories | SR-SB8 rigging support bracket (required when stacking 6 or more speakers) |
Frequently Asked Questions
Which speakers does the SR-RF8 support? It is designed for the TOA SR-C Series line array enclosures: the SR-C8L, SR-C8S, and SR-C15B.
How many speakers can it carry? Up to 12 enclosures when flown and up to 8 when ground-stacked, with the SR-C15B counted as two units.
Do I need additional brackets for tall stacks? Yes. The optional SR-SB8 rigging support bracket is required whenever you stack six or more speakers.
What hardware is included? The frame ships with twelve M10 plate mounting bolts, four fixing plates, and two sub-woofer receptacle pieces.
Can it be used for both flown and ground-stacked systems? Yes. The SR-RF8 supports both flown and stacked configurations for the SR-C Series.
Is installation support available? TOA products carry the manufacturer's warranty; contact Creation Networks for rigging guidance, compatibility, and support.
