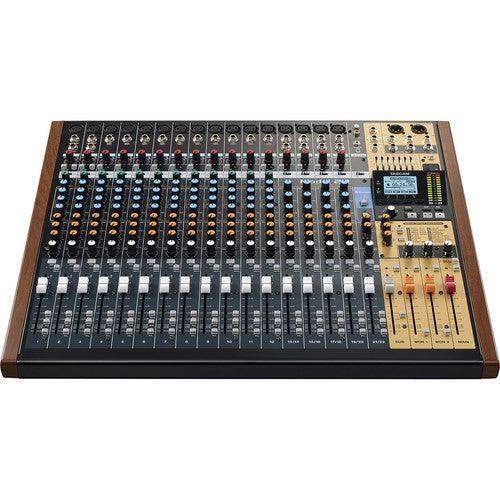

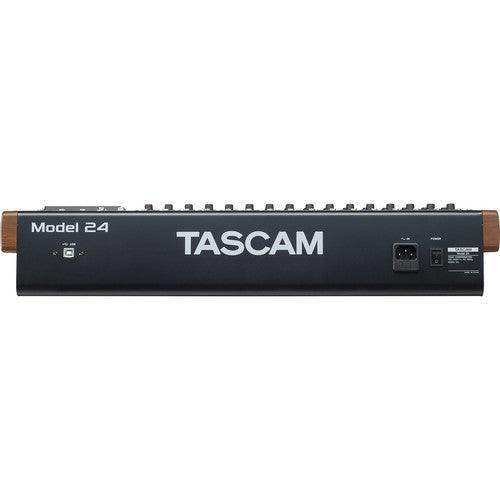

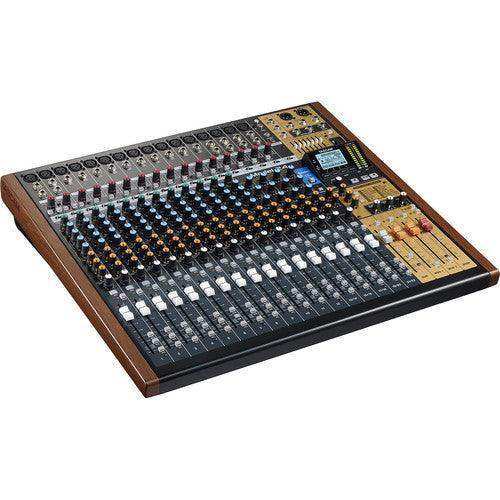

Tascam Model 24 Digital Mixer, Recorder, and USB Audio Interface

Save 25%
Tascam SKU: MODEL 24
No reviews
Price:
$1,199.00 $1,599.00

Description

The highly flexible TASCAM Model 24 is a powerful, versatile, hybrid mixer/recorder/audio interface for both live and recording applications, well suited for bands, studios, conferences, podcasts, houses of worship, and more. The full-featured professional mixer offers 22 input channels including 16 microphone preamps with phantom power, two 1/4" Hi-Z jacks, 12 balanced 1/4" mono line inputs, and four balanced 1/4" stereo line inputs. Additionally, the last stereo input also accepts signals from a variety of sources including Bluetooth, USB, RCA, or a 3.5mm stereo mini jack.

There is single-knob compression available on the first 12 channels, while three auxiliary sends provide signal routing to a dedicated monitor and to one of 16 onboard multi-FX effects. The main and sub stereo buses offer simple grouping, as well as a selectable 7-band graphic EQ for fine tuning your mix. The Model 24 offers 21 faders, with 100mm of throw for quick and immediate mixing moves. Each channel may be assigned to receive audio from the live inputs, the internal multitrack recorder, or the USB 2.0 audio interface, allowing for versatility in any environment.

The onboard 24-track recorder takes its cue from TASCAM's Portastudio line, offering multitrack recording with the ability to record 22 tracks plus the stereo master internally. Multichannel playback for advanced live performance backing or mixing. What's more, the simple interface allows you to punch in/out of recording and playback without extensive menu diving. Additionally, the Model 24 features a 22 x 24 USB audio interfaced allowing for the transmission of 22 input channels plus the stereo master at up to 24-bit/48 kHz resolution.

  • Mixer
    • 22 total input channels
    • 16 microphone preamps with 48V Phantom power
    • Two Hi-Z instrument inputs
    • 20 balanced line inputs (12 mono, 4 stereo)
    • Single stereo multi-input channel for Bluetooth, USB, RCA or 3.5mm stereo input
    • Main and sub stereo buses
    • 3 x aux sends (monitor 1, monitor 2, and effects)
    • Single-knob compressor for channels 1-12
    • 7-band graphic stereo EQ selectable for main and monitor outputs
    • Wireless Bluetooth connectivity and playback
    • Onboard multieffects processor with 16 effects selections
    • 100mm faders capable of fine adjustment
    • Independent input channel assign for live, internal MTR, or USB playback
  • Recorder
    • Multitrack recording function similar to the TASCAM Portastudio
    • 24 tracks (22 tracks + stereo master) can be recorded internally
    • Multichannel playback for advanced live performance backing or mixing
    • Punch in/out recording capability
  • Audio Interface
    • USB 2.0 audio interface
    • 24 in (22 input channels + stereo master)
    • 22 out
    • Up to 24-bit/48 kHz recording quality
  • 22 x Input Channels
  • 16 x Microphone Preamps
  • 20 x Line Inputs (12 Mono + 4 Stereo)
  • Single-Knob Compressor
  • 7-Band GEQ for Main or Monitor Outputs
  • 3 x Aux Sends + Built-In Multi-FX
  • 24-Track Recorder and Playback
  • USB 2.0 Audio Interface (24-In x 22-Out)
  • Wireless Bluetooth Connectivity

TASCAM MODEL 24 Specs
Form Factor Desktop
Number of Tracks 24 (22 Inputs + Stereo Mix)
Maximum Simultaneous Tracks 22 x Recording
Maximum Sampling Rate 48 kHz / 24-Bit
Signal Processing
Gain/Trim Range -10 dB to +40 dB (Channels 1 to 12)
-20 dB to +30 dB (Channels 13 to 20)
Mic Inputs:
Up to 50 dB
High-Pass Filter 100 Hz, 18 dB/Octave
EQ Parameters Mono Channels:
High: ±15 dB at 12 kHz (Shelving)
Mid: ±15 dB at 100 Hz to 8 kHz, 0.55 Q (Semi-Parametric)
Low: ±15 dB at 80 Hz (Shelving)
Stereo Channels:
High: ±15 dB at 12 kHz (Shelving)
Mid: ±15 dB at 600 Hz, 0.55 Q (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)
Graphic EQ:
±15 dB at 8 kHz
±15 dB at 4 kHz
±15 dB at 2 kHz
±15 dB at 1 kHz
±15 dB at 500 Hz
±15 dB at 250 Hz
±15 dB at 125 Hz
Built-In Effects 7 x Reverb
2 x Mono Delay
1 x Stereo Delay
Chorus
Flanger
2 x Delay+Reverb
2 x Chorus+Reverb
Connectivity
Analog Audio I/O 20 x 1/4" TRS Balanced Line Input
16 x XLR 3-Pin Balanced Mic Input
1 x 1/8" / 3.5 mm TRS Unbalanced Stereo Input
1 x Stereo RCA Coaxial Unbalanced Input
1 x 1/4" TRS Headphone Output
2 x 1/4" TRS Subgroup/Bus Output
2 x 1/4" TRS Monitor Output
1 x 1/4" TRS FX Output
2 x 1/4" TRS Control Room Output
2 x 1/4" TRS Unbalanced Insert In/Out
2 x XLR 3-Pin Balanced Output
Phantom Power 48 V
Host Connection Protocol USB 2.0
Other I/O 1 x 1/4" TS Remote Input
Wireless Connectivity Bluetooth
Performance
Maximum Input Level 1/8" / 3.5 mm Inputs:
+8 dBV (Unbalanced, Stereo)
Insert Return:
+18 dBu
Line Inputs:
+22 dBu
Mic Inputs:
+10 dBu
RCA Inputs:
+8 dBV (Unbalanced)
Maximum Output Level Monitor/FX/Subgroup/Control Room Outputs:
+16 dBu
XLR Main Outputs:
+22 dBu
Headphone Output Power 80 mW per Channel into 32 Ohms
Impedance 1/8" / 3.5 mm Inputs:
10 Kilohms
Insert Return:
10 Kilohms
Insert Send:
100 Ohms
Line Inputs:
22 Kilohms (Balanced)
Mic Inputs:
1.8 Kilohms
RCA Inputs:
10 Kilohms
Control Room/FX/Monitor/Subgroup Outputs:
100 Ohms
XLR Main Outputs:
100 Ohms
Digital Audio
Audio File Formats Recording:
BWF, WAV
Playback:
BWF, WAV
Sample Rates 44.1 / 48 kHz
Bit Depths 16 / 24-Bit
Audio Storage & Playback
Supported Media USB Hard Disk Drive
Memory Card Slot 1 x SDXC
Supported Media Capacity SD:
512 MB Minimum to 2 GB Maximum
SDHC:
4 GB Minimum to 32 GB Maximum
SDXC:
64 GB Minimum to 512 GB Maximum
File System Support SD: FAT16
SDHC: FAT32
SDXC: exFAT
Compatibility
OS Compatibility macOS 10.11
macOS 10.12
macOS 10.13
Windows 7
Windows 8.1
Windows 10
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Power
Power Requirements AC Input
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 52 W
Physical
Operating Temperature 41 to 95°F / 5 to 35°C
Dimensions 22.7 x 20.2 x 4.4" / 575.8 x 513.1 x 112.5 mm (with Side Panel)
20.3 x 19.8 x 4.4" / 514.6 x 502.9 x 112.5 mm (without Side Panel)
Weight 22.0 lb / 10.0 kg
Packaging Info
Package Weight 31.5 lb
Box Dimensions (LxWxH) 25.25 x 25 x 8.75"
