Tascam LA-40MKIII – 4-Channel Bi-Directional Line Level Converter

What is the Tascam LA-40MKIII?

The Tascam LA-40MKIII is a 4-channel bi-directional line level converter that lets you integrate consumer-grade unbalanced equipment into professional balanced AV signal chains, and vice versa. It's the standard tool for AV integrators who need reliable balanced-to-unbalanced line level conversion in a rack-mount format, without introducing noise or signal loss over long cable runs. Typical applications include studio recording systems, broadcast and streaming environments, and commercial AV installations where consumer source gear (Blu-ray players, DVRs, cable boxes) has to feed a balanced XLR-based distribution system. As a bi-directional unbalanced to balanced converter, it also works in reverse, converting balanced professional outputs down to unbalanced RCA for consumer-level displays or recorders.

How does the Tascam LA-40MKIII work?

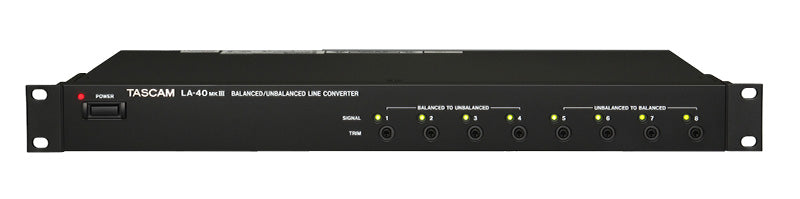

The LA-40MKIII houses four independent conversion channels in a single 1U rack-mount chassis. Each channel accepts an unbalanced RCA input and outputs a balanced XLR-3-32 equivalent signal, or accepts a balanced XLR-3-31 equivalent input and outputs an unbalanced RCA signal — the direction is set per install, and the unit handles both balanced-to-unbalanced and unbalanced-to-balanced conversion without re-cabling the chassis. This bi-directional design is what makes it useful as a rack-mount line level converter in mixed-format systems: one chassis can bridge consumer playback sources into a balanced snake run to a DSP or matrix switcher, or step balanced professional feeds down to unbalanced inputs on a display, recorder, or streaming encoder. Each channel includes a trim control with a +/-12 dB adjustment range, so output levels can be matched precisely to the receiving device rather than relying on a fixed nominal level. LED indicators on the front panel show signal presence per channel, which speeds up troubleshooting during commissioning. A GND LIFT switch on the balanced connectors breaks ground loops that commonly show up when tying dissimilar equipment together across a rack or a building run — a frequent cause of hum in AV signal integration projects. The LA-40MKIII also functions as a basic audio distribution amplifier. Input link switches let you configure the unit for 1-input/4-output distribution, or split it into two independent 1-input/2-output pairs, so a single source can feed multiple balanced or unbalanced destinations from one rack space. This makes it a practical fit anywhere a system integrator needs to split and re-level a signal across zones — paging, program audio, or auxiliary feeds — without adding a separate distribution amp. Because it's rack-mount and 1U, it drops into an existing equipment rack alongside amplifiers, DSPs, and switchers with no special mounting hardware.

What are the key features of the Tascam LA-40MKIII?

• Bi-directional 4-channel conversion — Converts unbalanced to balanced and balanced to unbalanced on the same chassis, so one unit covers both directions of a signal chain.
• Per-channel trim control — +/-12 dB of adjustment on each channel lets you match output level to the receiving device without external padding.
• GND LIFT switching — Breaks ground loops on balanced connectors, reducing hum introduced when linking equipment with different grounding references.
• Signal presence LEDs — Per-channel indicators confirm live signal at a glance during setup and troubleshooting.
• Distribution amplifier configuration — Input link switches allow 1-in/4-out or dual 1-in/2-out routing for splitting a source across multiple destinations.
• 1U rack-mount chassis — Standard 19-inch rack width fits directly into commercial AV equipment racks.
• Wide frequency response — 20 Hz to 100 kHz (+/-3 dB) keeps full-bandwidth audio intact through the conversion stage.
• Low distortion, high S/N ratio — 0.007% THD and 90 dB signal-to-noise at nominal levels preserve signal integrity across the conversion.

Where is the Tascam LA-40MKIII typically used?

• Boardroom
• Conference room
• Government space
• Commercial meeting space
• Multi-purpose room
• Broadcast studio
• Auditorium

Technical Specifications

Source: Tascam USA official product page, https://tascam.com/us/product/la-40mkiii/spec

Frequently Asked Questions

Is the Tascam LA-40MKIII compatible with existing balanced AV systems?
Yes. Each of the four channels converts bi-directionally between unbalanced RCA and balanced XLR-equivalent connections, so it integrates directly with balanced DSPs, matrix switchers, and amplifiers already in a commercial AV rack. Browse the full Tascam collection at Creation Networks for compatible processing and distribution equipment from the same manufacturer.

Can the LA-40MKIII be used to distribute one source to multiple outputs?
Yes. The input link switches let you configure the unit as a 1-input/4-output distribution amplifier, or split it into two independent 1-input/2-output pairs, useful for feeding program audio or paging signals to multiple zones from a single rack space.

Does the LA-40MKIII require any special rack hardware to install?
No. It's a standard 1U, 19-inch rack-mount chassis and installs with standard rack screws in any commercial AV equipment rack alongside amplifiers, DSPs, or switchers.

Will the LA-40MKIII eliminate ground loop hum in a mixed-format install?
The GND LIFT switch on the balanced connectors is designed specifically to reduce ground loop noise that occurs when linking equipment with different grounding references, which is a common issue when integrating consumer and professional gear in the same system.

What if I need more than 4 channels of conversion?
For higher channel-count deployments, the Tascam LA-80MKII offers 8 channels of line level conversion in a comparable rack-mount format, useful for larger multi-zone or multi-room AV installations.

What power requirements does the LA-40MKIII have?
It operates on AC 100-240V, 50/60Hz, drawing 6W, which allows it to run on standard rack power in any region without a separate step-down transformer.

What warranty and support does Creation Networks provide on the LA-40MKIII?
The LA-40MKIII carries Tascam's standard manufacturer warranty, and Creation Networks provides direct purchasing support plus system design and integration assistance for buyers incorporating it into a larger AV deployment.

Can the LA-40MKIII handle broadcast or streaming audio applications?
Yes. Its wide frequency response (20 Hz - 100 kHz), low THD (0.007%), and 90 dB S/N ratio make it suitable for broadcast, streaming, and studio recording signal chains in addition to standard commercial AV integration.
