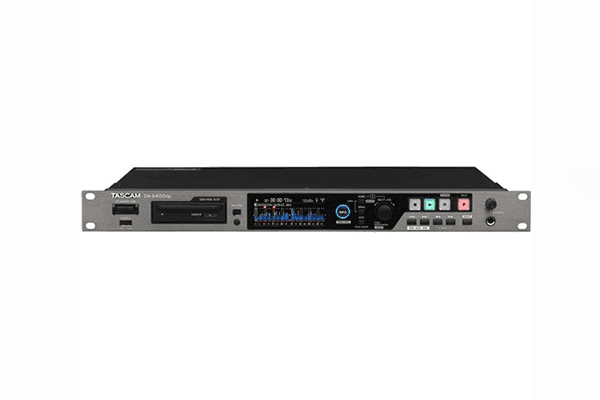

Tascam DA-6400DP – 64-Channel Multitrack Recorder, Dual Redundant Power

Product Overview

The TASCAM DA-6400DP is a professional 1U rack-mount 64-channel digital multitrack recorder built for live event capture, broadcast, and critical installation recording where power redundancy is non-negotiable. Identical in recording capability to the DA-6400, the DP variant adds dual independent power supply circuits so a second AC source can maintain operation if the primary fails. At $4,299, it is the benchmark recorder for touring, broadcast facilities, and fixed installations where an uninterrupted recording feed is required.

Product Description

The DA-6400DP records 64 tracks simultaneously at 48 kHz/24-bit or 32 tracks at 96 kHz/24-bit directly to an included hot-swappable TASCAM SSD housed in the AK-CC25 storage caddy. The caddy's integrated USB 3.0 port allows immediate file offload to a client DAW without removing the drive from its case. A temperature-compensated crystal oscillator (TCXO) rated at ±1 ppm ensures clocking accuracy across long-duration sessions. Two rear expansion card slots accept optional interface cards — including the IF-DA64 Dante card, IF-MA64/EX MADI card, IF-AE16 AES/EBU card, and IF-ST2110 for SMPTE ST 2110 IP audio — making the DA-6400DP compatible with virtually every professional audio network in use today. The rear panel includes SMPTE timecode I/O, word clock I/O, RS-422, parallel remote, and Ethernet for network control. An iPad app (TASCAM DA-6400 Control) provides 64-channel level metering and transport control over Wi-Fi. The dual power supplies draw from independent AC circuits, so a power interruption on one leg does not interrupt recording — critical for broadcast and live event deployments where retakes are not possible. One AK-CC25 caddy and one 240 GB TASCAM SSD are included; the 480 GB TSSD-480B is available separately for sessions exceeding seven hours. The DA-6400DP is available at Creation Networks alongside the full range of compatible TASCAM expansion cards and accessories.

Key Features

• Dual Redundant Power Supplies — Two independent AC power circuits maintain recording continuity if one source fails, meeting broadcast and live-event uptime requirements.
• 64-Track Simultaneous Recording — Records 64 channels at 48 kHz/24-bit or 32 channels at 96 kHz/24-bit to internal SSD.
• Hot-Swappable SSD Bay — The included AK-CC25 caddy with 240 GB TASCAM SSD can be swapped mid-session; the USB 3.0 port on the caddy enables rapid DAW transfer.
• TCXO Clock Accuracy — Temperature-compensated crystal oscillator at ±1 ppm reduces jitter and drift across long recording sessions.
• Dual Expansion Card Slots — Two rear slots accept optional MADI, Dante, AES/EBU, or SMPTE ST 2110 interface cards for integration into any professional audio network.
• Comprehensive Control I/O — SMPTE timecode, word clock, RS-422 serial, parallel remote, and Ethernet ports support integration into existing broadcast and AV infrastructure.
• iPad Remote Control — The TASCAM DA-6400 Control iOS app provides 64-channel metering and transport control over Wi-Fi.
• 1U Rack-Mount Form Factor — Fits standard 19-inch equipment racks for permanent installation or road cases for touring deployment.

Typical Applications

• Broadcast studio multitrack recording and backup
• Live event and concert capture
• House of worship main recording system
• Government and legislative chamber audio archive
• Auditorium and performing arts center recording
• Training room and conference center session capture

Technical Specifications

Frequently Asked Questions

What is the difference between the DA-6400 and DA-6400DP?

The DA-6400DP adds a second independent power supply circuit. If the primary AC feed fails, recording continues uninterrupted from the secondary supply. The recording specifications are identical.

Which expansion cards are compatible with the DA-6400DP?

The DA-6400DP accepts two optional interface cards simultaneously. Compatible cards include the IF-DA64 (64-channel Dante), IF-MA64/EX (64-channel MADI optical/coaxial), IF-MA64/BN (64-channel MADI coaxial), IF-AE16 (16-channel AES/EBU), and IF-ST2110 (SMPTE ST 2110). Cards are sold separately.

How long can the DA-6400DP record on the included SSD?

The included 240 GB TASCAM SSD provides approximately 7 hours and 12 minutes of recording at 48 kHz/24-bit across all 64 channels. The optional 480 GB TSSD-480B extends capacity to approximately 14 hours and 26 minutes.

Does the DA-6400DP integrate with Dante networks?

Yes, with the optional IF-DA64 expansion card installed, the DA-6400DP connects directly to Dante audio networks for up to 64 channels of networked I/O.

What warranty does the DA-6400DP carry?

TASCAM products sold through authorized dealers like Creation Networks carry a standard TASCAM limited warranty. Contact Creation Networks for current warranty terms and support options.
