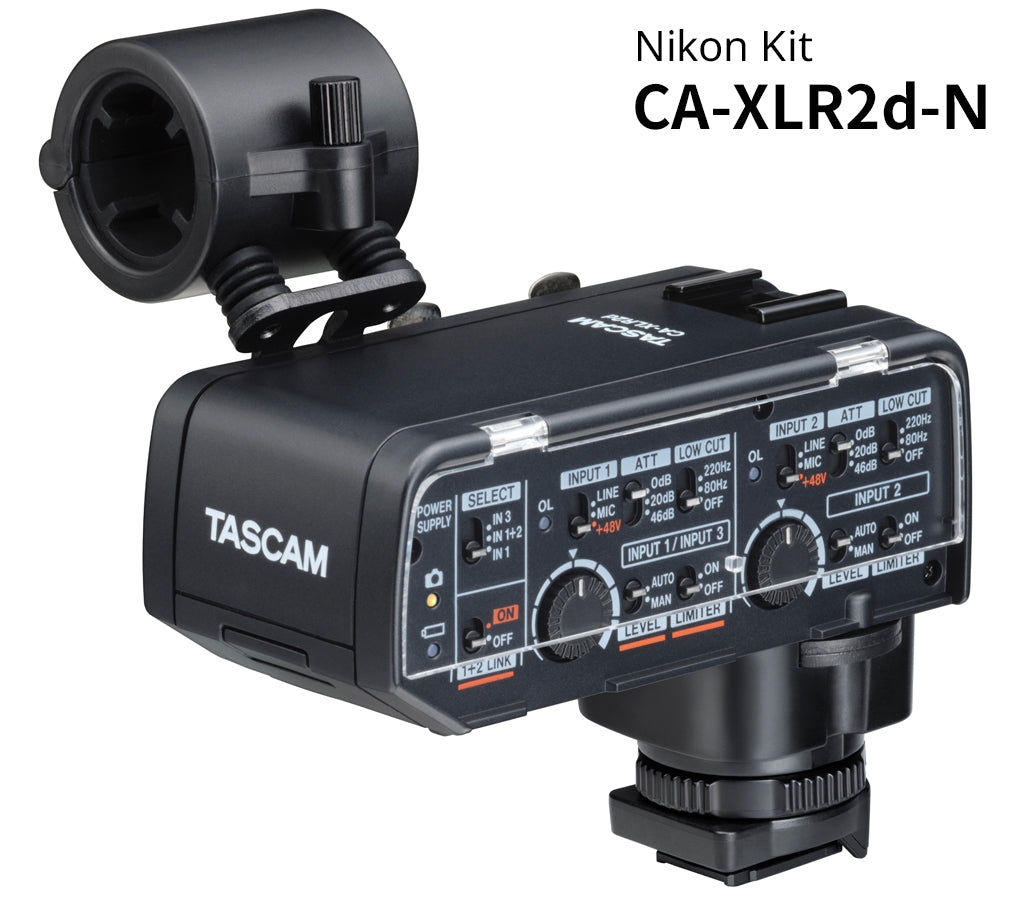

Tascam CA-XLR2d-N – XLR Mic Adapter for Cameras (Nikon)

What is the Tascam CA-XLR2d-N?

The Tascam CA-XLR2d-N is a dual-channel XLR microphone adapter built specifically for Nikon mirrorless cameras, most notably the Nikon ZR. It adds two professional balanced XLR inputs with phantom power, a high-headroom mic preamp, and a direct digital audio path into the camera's accessory shoe, replacing the compressed 3.5mm mic input most cameras ship with. It is the tool of choice for video production teams, ENG shooters, and multi-camera broadcast crews who need broadcast-grade XLR mic adapter for cameras performance without carrying a separate field recorder. For any team standardizing Nikon-based video production on professional XLR audio input for Nikon cameras, this adapter is the direct path to clean, interference-free sound.

How does the Tascam CA-XLR2d-N work?

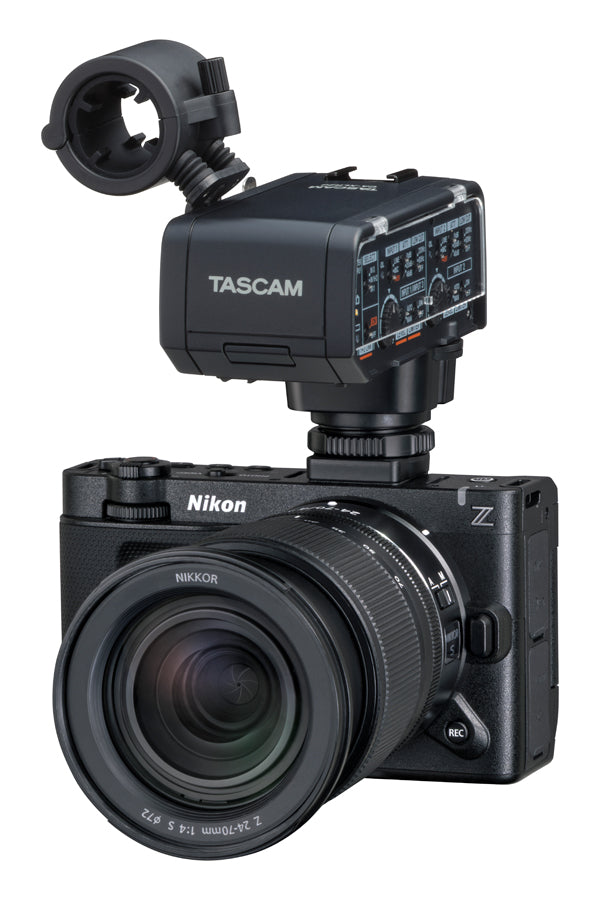

The CA-XLR2d-N mounts to the base of a compatible Nikon camera and connects through the camera's accessory shoe, where supported, to pass audio digitally rather than through an analog 3.5mm cable. That digital connection avoids the noise floor and gain-staging compromises inherent to a camera's built-in mic input, which matters for any production monitoring audio through headphones on set or in a control room. Two combo XLR/TRS inputs handle balanced dynamic and condenser microphones with switchable +48V phantom power, while a third 3.5mm input accepts a lavalier mic with plug-in power for run-and-gun interview setups. Each input runs through Tascam's HDDA mic preamp design with a 66dB gain range and selectable attenuator pads, giving operators the headroom to work with both quiet lavs and hot handheld mics without re-patching. A 1+2 LINK function ties both channel faders together for stereo pairs, while onboard auto level, a switchable low-cut filter, and a limiter provide a safety net for unattended or single-operator shoots. Latency-free direct monitoring lets a mixer or camera operator check XLR mic adapter for cameras audio in real time through the built-in headphone jack, independent of the camera's own audio processing. Because the unit runs on two AA batteries or draws power through the camera's accessory shoe, it stays lightweight and rig-friendly for handheld, gimbal, and tripod work alike. This makes the CA-XLR2d-N a natural fit for broadcast studio and field production workflows moving from consumer-grade mic inputs to a proper professional video production audio adapter. For crews standardizing across camera brands, the same platform is available as the Tascam CA-XLR2d-C for Canon, the Tascam CA-XLR2d-F for Fujifilm, and the Tascam CA-XLR2d-AN for cameras with a standard 3.5mm analog mic input, so a multi-camera bay can run identical audio front-ends across mixed camera bodies.

What are the key features of the Tascam CA-XLR2d-N?

• Dual XLR/TRS combo inputs — Accepts balanced dynamic or condenser microphones and line-level sources on a single connector, with switchable +48V phantom power.
• Direct digital connection to compatible Nikon cameras — Bypasses the camera's analog mic preamp entirely, delivering cleaner, lower-noise audio to the recording.
• HDDA mic preamp with 66dB gain range — Provides enough clean gain for quiet lavalier mics and enough headroom for loud sources without distortion.
• Third 3.5mm lavalier input with plug-in power — Adds a dedicated wireless or wired lav input alongside the two XLR channels for interview and presenter setups.

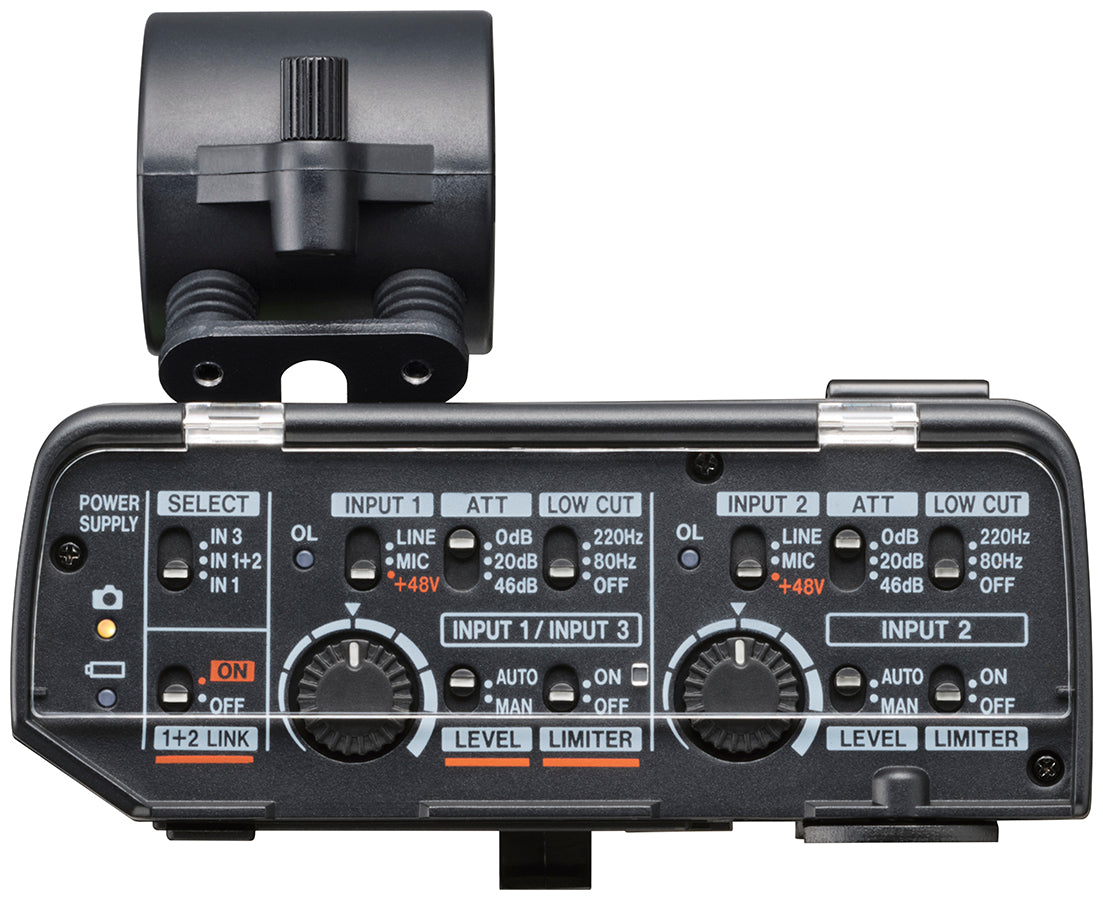

• 1+2 LINK function — Locks the two main channel level controls together for fast, accurate stereo mic adjustments.
• Onboard auto level, low-cut filter, and limiter — Protects recordings from clipping and low-frequency rumble during unmonitored or single-operator shoots.

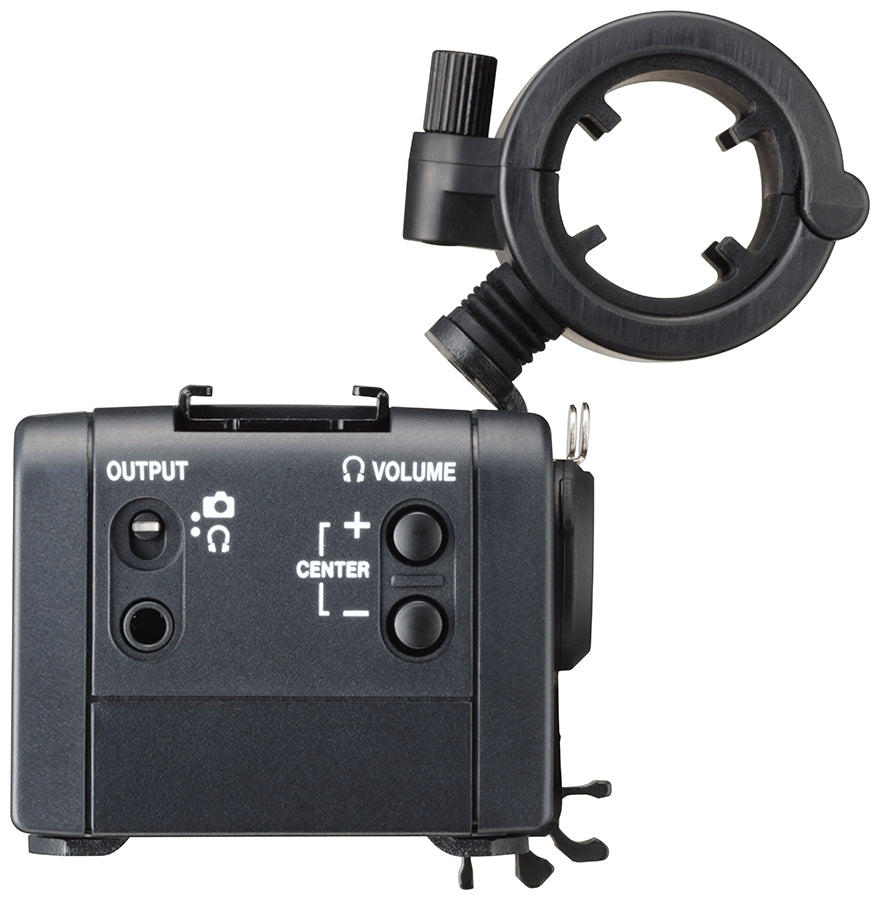

• Latency-free direct monitoring — Lets the operator confirm audio quality through headphones independent of camera processing delay.
• Dual power options — Runs on two AA batteries or draws power from the camera's accessory shoe for a lighter on-camera rig.

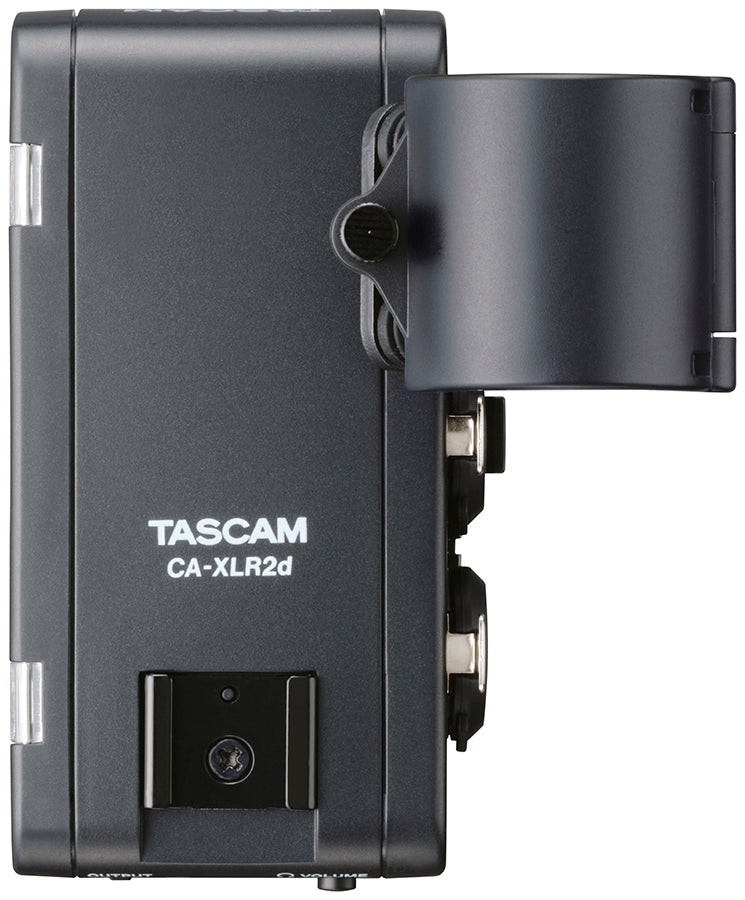

• Compact, camera-matched form factor — Mounts securely to the camera base without significantly changing balance or handling on a gimbal or shoulder rig.

Where is the Tascam CA-XLR2d-N typically used?

• Broadcast studio
• Auditorium
• Government space
• Commercial meeting space

Technical Specifications

Specifications verified from Tascam's official product page: tascam.com/us/product/ca-xlr2d and its technical specifications subpage.

Frequently Asked Questions

• Which cameras is the Tascam CA-XLR2d-N compatible with? The CA-XLR2d-N is built for Nikon mirrorless cameras, including the Nikon ZR, using a direct digital connection through the camera's accessory shoe on supported models, and functions as a standard analog XLR adapter on other cameras via the included battery box configuration. If your production runs a mixed camera fleet, browse the full Tascam collection for the matching CA-XLR2d variant for Canon, Fujifilm, or any camera with a 3.5mm analog mic input.
• Does the CA-XLR2d-N require a separate cable or adapter to connect to the camera? No. The CA-AK1-N accessory shoe mount adapter, which enables the digital audio connection to compatible Nikon cameras, ships in the box along with a cold shoe mount adapter for cameras without a digital hot shoe.
• Can this adapter power phantom-powered condenser microphones? Yes. Both XLR/TRS combo inputs supply switchable +48V phantom power, so standard condenser mics used in broadcast and production audio can be run directly into the unit.
• How does the CA-XLR2d-N integrate into a broadcast or multi-camera production workflow? It replaces the camera's built-in mic preamp with a dedicated HDDA preamp and delivers audio to the camera digitally on supported models, which keeps signal quality consistent when a Nikon body is mixed into a multi-camera broadcast or ENG setup alongside other pro cameras and external audio sources.
• Does the CA-XLR2d-N need external power, or can it run on batteries? It can run on two AA batteries (alkaline, NiMH, or lithium-ion) for fully self-contained field use, or draw power through the camera's accessory shoe on supported Nikon models to reduce the number of batteries a crew has to manage.
• What is the warranty on the Tascam CA-XLR2d-N? Tascam covers the CA-XLR2d-N under its standard one-year limited warranty on parts and labor from the date of original purchase when bought through an authorized dealer such as Creation Networks.
• Does Creation Networks provide support beyond the manufacturer warranty? Yes. As an authorized AV integrator, Creation Networks assists with product selection, camera/adapter compatibility questions, and ongoing support for production and broadcast equipment purchased through us, in addition to Tascam's standard warranty coverage.
• Can I monitor audio in real time while recording with the CA-XLR2d-N? Yes. The unit provides latency-free direct headphone monitoring, so an operator or mixer can confirm mic levels and signal integrity independent of the camera's own audio processing.
