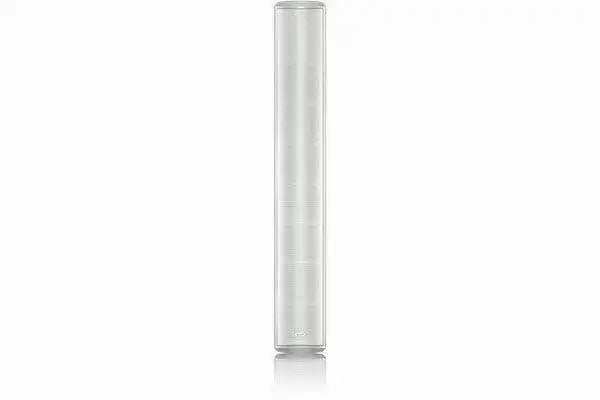

Tannoy VLS 15 (EN 54)-WH Passive Column Array Loudspeaker (EN 54-24 Certified, White) - TA-VLS15-WH
Tannoy VLS 15 (EN 54)-WH Passive Column Array Loudspeaker (EN 54-24 Certified, White) - TA-VLS15-WH is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Tannoy VLS 15 (EN 54)-WH Passive Column Array Loudspeaker (EN 54-24...
Description
VLS 15 (EN 54)-WH
The VLS 15 (EN 54)-WH is an 800-Watt passive column array loudspeaker ideally suited for challenging acoustic and architecturally sensitive spaces where background/foreground music and speech reinforcement is required. Applications include airports, train stations, conference centers, houses of worship, stadium concourses, museums, theme parks and hotels. The heart of the loudspeaker system is its asymmetrical vertical dispersion, which gently shapes the acoustic coverage towards the lower quadrant of the vertical axis. VLS 15 (EN 54)-WH’s Focused Asymmetrical Shaping Technology™ (FAST) also facilitates quick and easy installation, with less need for tilting for optimal mounting. EN 54-24 compliance makes the VLS 15 (EN 54)-WH the perfect choice where safety is a top priority. VLS 15 (EN54)-WH packages this performance in a slender and narrow profile, aesthetically refined, powder coated aluminum chassis with curved stainless steel grille.
Features
-
Passive column array loudspeaker for indoor and outdoor installation applications
-
200 Watts continuous, 800 Watts peak power
-

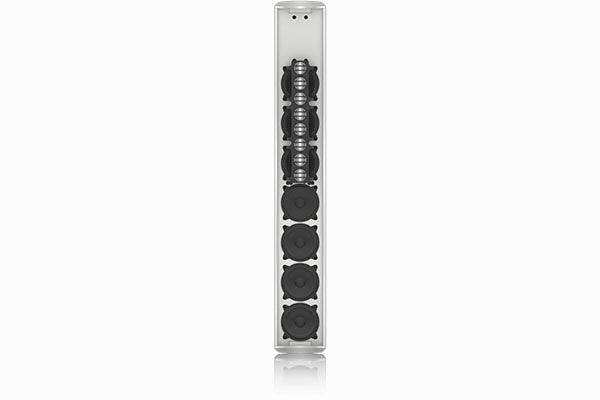

7 vertically arrayed 3.5" low frequency drivers provide high intelligibility speech reproduction
-
8 vertically arrayed 1" high frequency metal dome tweeters for full range sound up to 35 kHz
-
FAST (Focussed Asymmetrical Shaping Technology) delivers asymmetric vertical dispersion towards the typical listening plane
-
EN 54-24 certified for fire detection and fire alarm systems
-
Multiple transformer taps for 70 V and 100 V line systems or 12 Ohm direct input
-
Low insertion loss 150 W line transformer with easily accessible tapping switch
-
All components weather resistant to IP65 for outdoor use
-
Architecturally styled aluminium enclosure with a semi matt white painted finish
-
Corrosion resistant stainless steel perforated grille
-

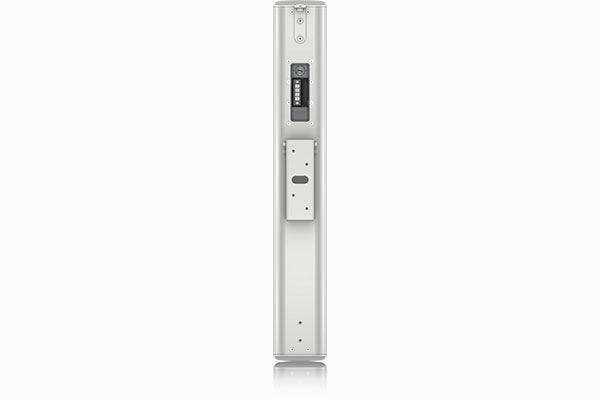

Included custom brackets allow quick and accurate installation
-
10-Year Warranty Program*
-
Designed and engineered in the U.K.
System
| Frequency response |
150 Hz - 30 kHz ±3 dB |
| Horizontal dispersion (-6 dB) |
130° H |
| Vertical dispersion (-6 dB) |
+6° / -22° V (-8° bias) |
| Power handling (IEC) |
200 W average, 400 W continuous, 800 W peak |
| Recommended amplifier power |
600 W @ 8 Ω |
| System sensitivity |
91 dB (1 m, Lo Z) |
| Sensitivity (per EN54-24) |
76 dB (4 M, through transformer) |
| Nominal impedance (Lo Z) |
12 Ω |
| Maximum SPL (per EN54-24) |
96 dB (4 M, through transformer) |
| Rated maximum SPL |
114 dB continuous, 120 dB peak (1 m, Lo Z) |
| Crossover |
Passive, utilizing Focussed Asymmetrical Shaping Technology (FAST) |
| Crossover point |
2.5 kHz |
| Directivity factor (Q) |
9.1 averaged, 1 kHz to 10 kHz |
| Directivity index (DI) |
9.6 average, 1 kHz to 10 kHz |
| Components |
7 x 3.5" (89 mm) woofers |
Transformer taps (via rotary switch) (Rated noise power and impedance)
| 70 V |
150 W (33 Ω) / 75 W (66 Ω) / 37.5 W (133 Ω) / |
| 100 V |
150 W (66 Ω) / 75 W (133 Ω) / 37.5 W (265 Ω) / |
Coverage angles
| 500 Hz |
226° H x 114° V |
| 1 kHz |
191° H x 57° V |
| 2 kHz |
131° H x 32° V |
| 4 kHz |
119° H x 27° V |
Enclosure
| Connectors |
Barrier strip |
| Wiring |
Terminal 1+ / 2- (input); 3- / 4+ (link) |
| Dimensions H x W x D |
816 x 121 x 147 mm (32.1 x 4.8 x 5.8") |
| Net weight |
11.7 kg (25.7 lbs) |
| Construction |
Aluminium extrusion |
| Finish |
Paint RAL 9003 (white) Custom RAL colours available (additional cost and lead-time) |
| Grille |
Powder coated perforated steel |
| Flying hardware |
Flying bracket, wall mount bracket,input panel cover plate and gland |
