Tannoy SAT 3 Surface-Mount Satellite Loudspeaker (Black,Pair) - TA-SAT-3-BK
Tannoy SAT 3 Surface-Mount Satellite Loudspeaker (Black,Pair) - TA-SAT-3-BK is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Tannoy SAT 3 Surface-Mount Satellite Loudspeaker (Black,Pair) - TA-...
Product Overview

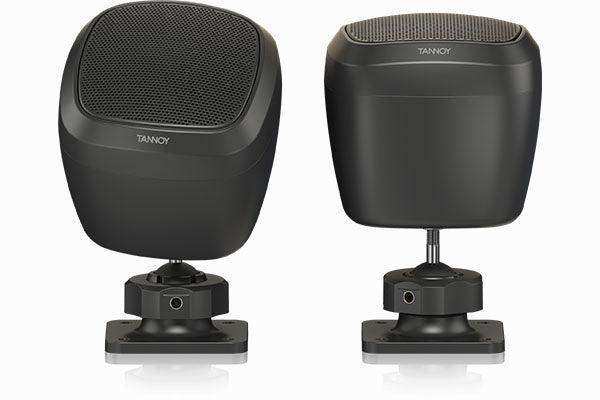

The Tannoy SAT 3 is a compact surface-mount satellite loudspeaker for background and foreground music in commercial spaces. Sold as a pair, this discreet 2.5-inch full-range speaker delivers even coverage for bars, restaurants, retail, and similar venues. Wide constant-directivity dispersion and an included pan/tilt wall and ceiling mount let installers aim each unit for consistent coverage, and it pairs with the Tannoy Sat Sub Slimline 6.5-inch subwoofer with integrated crossover for a full-range satellite system.
Product Description
The SAT 3 uses a lightweight 2.5-inch (63.5 mm) paper full-range driver in a compact ABS enclosure with a steel grille, making it easy to mount discreetly where a low-profile speaker is needed. Wide constant-directivity dispersion delivers broad, even coverage from each cabinet, which suits distributed background and foreground music layouts. The 16-ohm design handles 15 watts continuous and 25 watts programme, with a recommended amplifier power of 25 watts at 16 ohms. A Phoenix Contact terminal block keeps wiring tidy, and the included pan/tilt wall and ceiling brackets allow precise aiming during installation. The SAT 3 is designed to work with the Tannoy Sat Sub Slimline 6.5-inch subwoofer, whose integrated crossover and satellite terminals extend low-frequency output for a complete small-format system. Browse the full Tannoy collection or compare the white SAT 3-WH surface-mount loudspeaker.
Key Features
- Compact Surface-Mount Design — A small ABS enclosure with steel grille mounts discreetly for background and foreground music.
- 2.5-Inch Full-Range Driver — A lightweight 63.5 mm paper driver reproduces music and speech across a single point source.
- Wide Constant Directivity — Broad dispersion provides even coverage for distributed audio layouts.

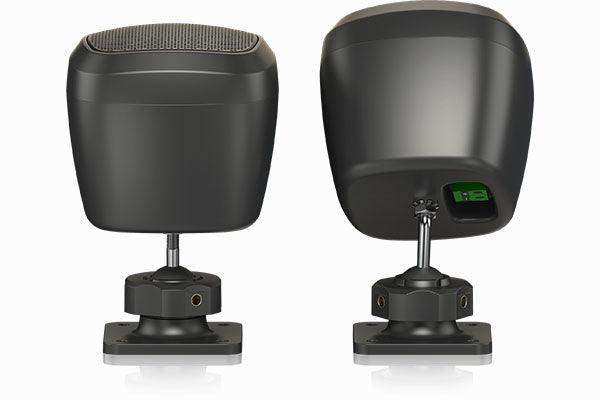

- Included Pan/Tilt Bracket — Wall and ceiling pan/tilt mounts allow precise aiming during installation.
- Subwoofer Ready — Designed to pair with the Tannoy Sat Sub Slimline 6.5-inch subwoofer with integrated crossover for full-range output.
- Tidy Termination — A Phoenix Contact terminal block keeps connections secure and serviceable.
- Discreet Finish — A semi-matte black finish blends into commercial interiors.
Technical Specifications
| Type | Surface-mount satellite loudspeaker |
| Frequency response (-10 dB) | 200 Hz – 20 kHz |
| Sensitivity (1 W / 1 m) | 83 dB |
| Power handling (average) | 15 W |
| Power handling (programme) | 25 W |
| Recommended amplifier power | 25 W @ 16 Ω |
| Nominal impedance | 16 Ω |
| Maximum SPL @ 1 m | 100 dB |
| Coverage angle @ 1 kHz | 265° horizontal, 265° vertical |
| Driver | 63.5 mm (2.5") paper |
| Enclosure / grille | ABS / steel |
| Connectors | Phoenix Contact terminal block |
| Dimensions (HxWxD) | 100 x 100 x 93 mm (speaker only) |
| Net weight | 1.16 kg (2.6 lbs), bracket included |
| Included accessories | Ceiling mount bracket, wall mount bracket |
| Sold as | Pair |
