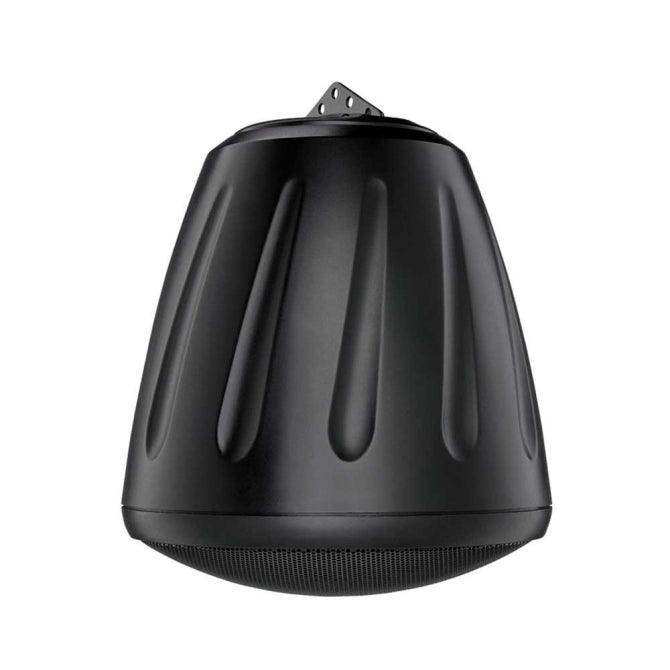

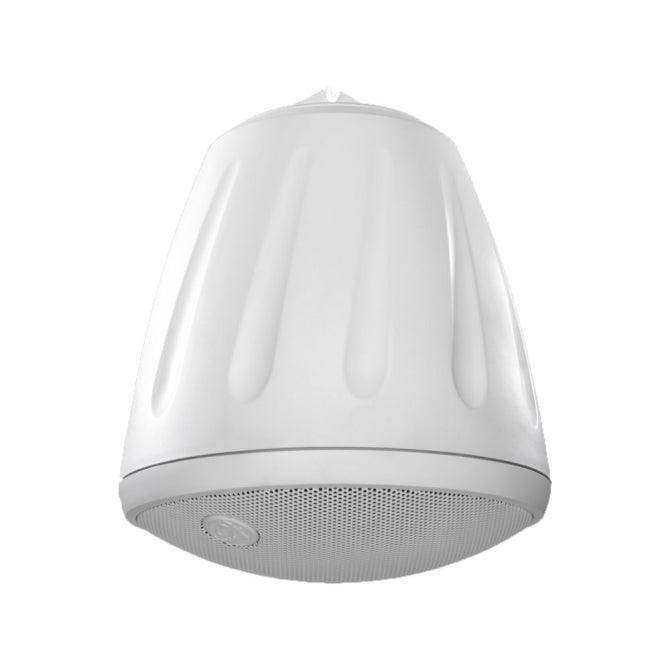

Soundtube RS500I 5.25" Hanging Speaker with a BroadBeam Tweeter
Soundtube RS500I 5.25" Hanging Speaker with a BroadBeam Tweeter
Soundtube RS500I 5.25" Hanging Speaker with a BroadBeam Tweeter
Soundtube RS500I 5.25" Hanging Speaker with a BroadBeam Tweeter
Roll over image to zoom in Click on image to zoom
Soundtube RS500I 5.25" Hanging Speaker with a BroadBeam Tweeter
Soundtube RS500I 5.25" Hanging Speaker with a BroadBeam Tweeter
Soundtube RS500I 5.25" Hanging Speaker with a BroadBeam Tweeter
Soundtube RS500I 5.25" Hanging Speaker with a BroadBeam Tweeter
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Soundtube RS500I 5.25" Hanging Speaker with a BroadBeam Tweeter

Soundtube SKU: RS500I-BK
No reviews
Model: Black
Price:
$308.50

Description

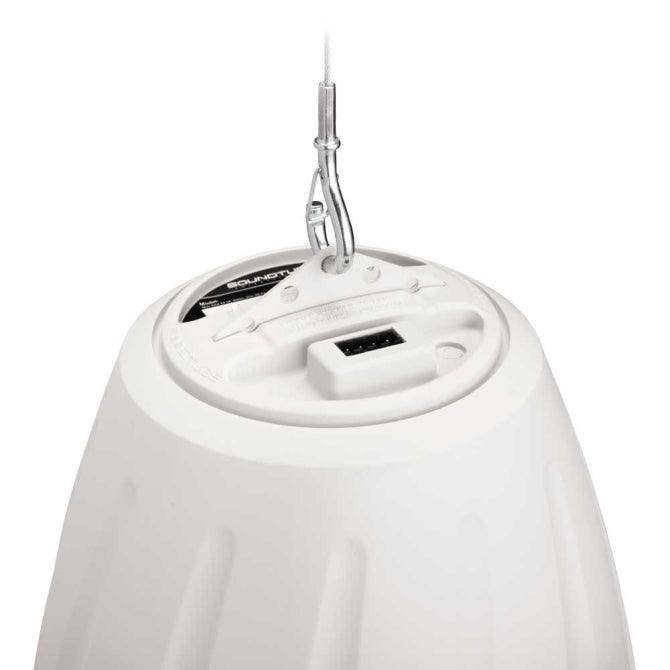

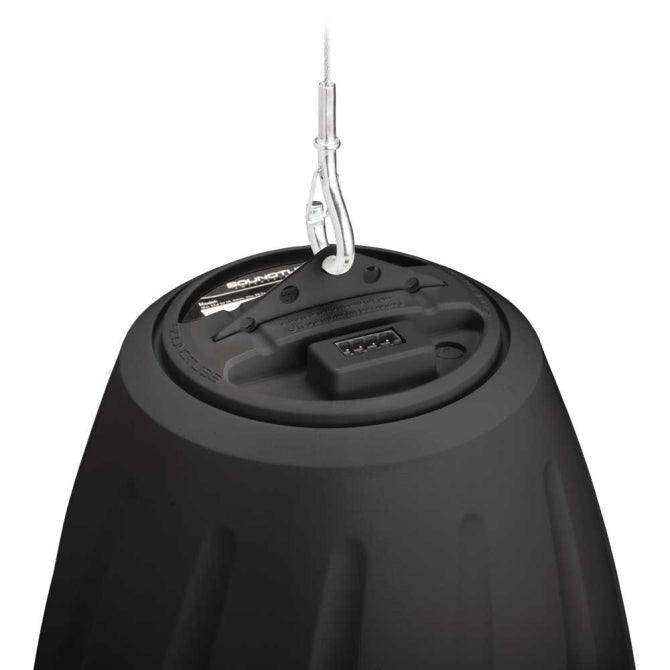

The RS500i has a 5.25-inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. The two-way, ported speaker with an open-ceiling enclosure design that delivers effective low-end response (61 Hz) and 105° off-axis performance (2 to 10 kHz, indepen-dently verified). The speaker uses patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity. SoundTube®'s proprietary BroadBeam® waveguide tweeter system delivers consistent high-performance audio coverage across the operating band-width. The RS500i speaker design incorporates a low-profile grille, proprietary motor-board and a six-position selectable tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position simplifies ordering and inventory tracking with transformer bypass position. Includes UL listed hanging hardware with cables and integrated SpeedClamp™ self-locking wire grip for fast, easy and secure installation. Euro-block connector and terminal weather boot are included.

Manufacturer SoundTube
Manufacturer's Category RSi Original Pendant
Height 11.74 in / 298.2 mm
Width/Diameter 9.68 in / 245.9 mm
Shipping Weight 23 lbs / 10.43 kg
Carton Height 13.5 in / 342.9 mm
Carton Length 22.25 in / 565.15 mm
Carton Width 12.25 in / 311.15 mm
Certifications CE, MIL Spec, RoHS, UL1480A, UL2239
Enclosure Properties ABS Glass Fiber Reinforced, Injection Molded, Ported
Enclosure Volume 339.7 cu in / 5566.69 cu cm
Included Accessories Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot
Optional Accessories Black Grille (GRL-RS500-BK)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|Black Mounting Bracket (AC-RS-SM5-BK)|Connector (EUROBLOCK)|Black Weatherboot (WEATHERBOOT-L-BK)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1)
Source Inputs 4 Pin 5.08mm Euroblock
Coverage Angle (±6dB @ 2kHz) 105°
Crossover Frequency 3.0 kHz
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 12.3 and 4.8
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 10.9dB and 5.4dB
Frequency Response (± 10 dB) 61 Hz - 22 kHz
Frequency Response (± 3 dB) 87 Hz - 22 kHz
Grille Properties Powder-Coated, Steel
Low Frequency Voice Coil 1 in / 25.4 mm
Low Pass Crossover 12 dB per octave 2nd order
Max. Continuous Power RMS 75W
Max. Program Power 150 W
Minimum Impedance (Ω Ohms) 4.9 Ω
Network Type: High Pass 12 dB per octave 2nd order
Nominal Impedance (Ω Ohms) 8 Ω
Tweeter Driver 1" Convex Aluminum w/ BroadBeam® Waveguide
Woofer Driver 5.25" Polypropylene Cone w/ Butyl Rubber Surround
Sensitivity dB @ 1W/1M 86.5 dB
Sensitivity dB @ 2.83V/1M 86.5 dB
Tap Selector Rotary Switch
Transformer Options 25 / 70.7 / 100 V, 8 Ohm direct
Transformer Taps Max. Setting (25V/70.7V/100V) 5W/33W/33W
