SoundTube IPD-CM52s-BGM-II IP-Addressable Dante In-Ceiling Speaker — White

Overview

The SoundTube IPD-CM52s-BGM-II is a Dante®-enabled coaxial in-ceiling speaker engineered for commercial installations where plenum depth is limited and audio performance cannot be compromised. Featuring a shallow 3.5-inch backcan and BroadBeam Ring™ technology, this white-finish unit delivers background music-quality audio across a 100° dispersion pattern from a single Cat cable carrying audio, PoE power, and network control. It is part of SoundTube's STNet IP-addressable series and integrates into Dante networks alongside other Dante-compatible devices.

Description

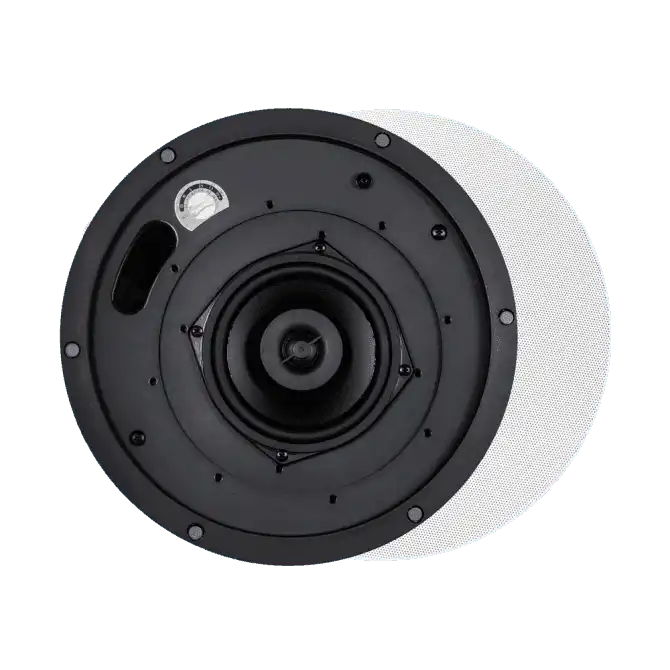

At the heart of the IPD-CM52s-BGM-II is a 5.25-inch polypropylene-cone woofer paired with a 0.75-inch silk dome tweeter featuring BroadBeam Ring™ technology — a tuned coaxial configuration that maintains smooth off-axis response and mid-range clarity through the 5.0 kHz crossover point. The tuned port on the baffle extends bass response down to 65 Hz (±10 dB), making this an effective choice for background music in environments where full-range intelligibility is required without supplemental subwoofers.

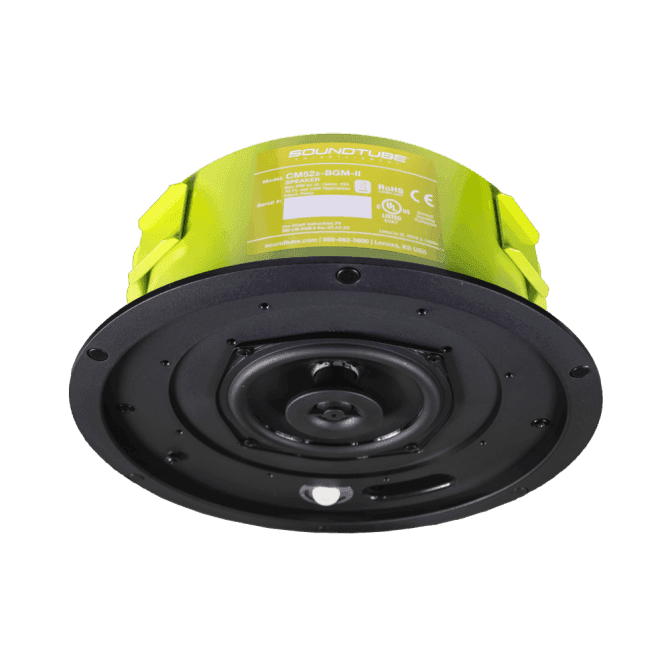

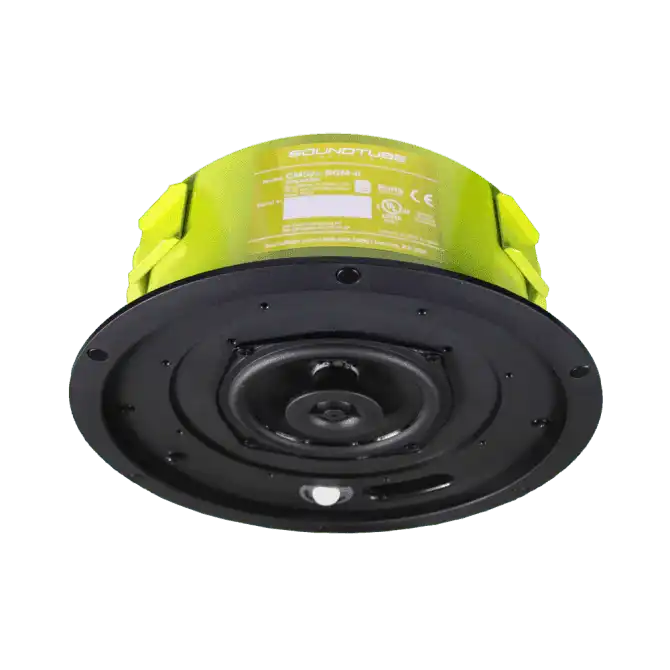

The shallow 3.5-inch-deep backcan (9.67-inch diameter) fits into tight plenum cavities that would reject standard ceiling speakers. Installation uses SoundTube's SpeedWing™ constant-tension fixed-wing mounting system, which accommodates ceiling materials from 0.035 in to 1.6 in thick without additional hardware. The speaker ships with a color-coded tile bridge, UL-listed conduit clamp, and paint shield for clean, code-compliant installations. Power is delivered via PoE/PoE+ (up to 30 W standard PoE, or 40 W with STNet Switch II); PoE++ is not compatible.

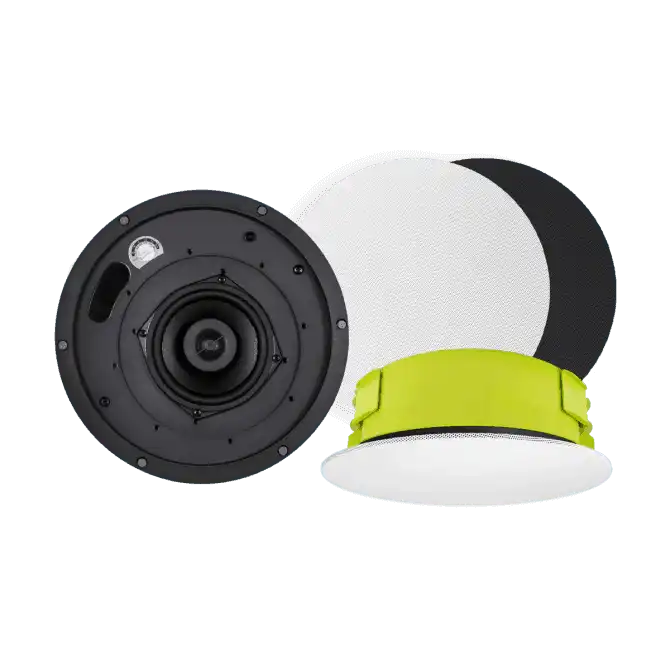

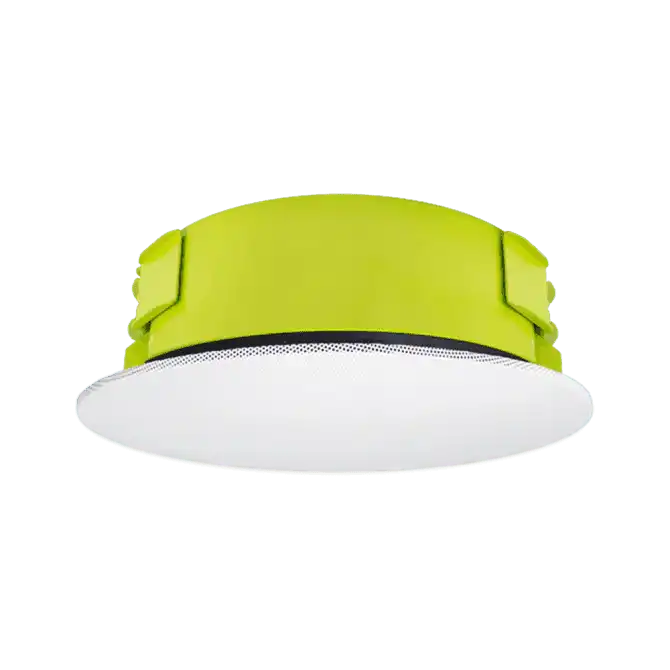

The white steel grille has a standard flange, is friction-fit, paintable, and installs flush to the ceiling. Certifications include ETL-C/US, CE, RoHS, UL 2043, and UL 60065. Network configuration and zone management are handled entirely through software — no analog wiring or local controls are needed. For project pricing and design support, visit creationnetworks.net.

Key Features

• Dante®-enabled coaxial in-ceiling speaker — audio, power, and control over one Cat cable
• Shallow 3.5" backcan fits tight plenum spaces standard ceiling speakers cannot accommodate
• BroadBeam Ring™ technology on 0.75" silk dome tweeter for wide, consistent off-axis coverage
• 5.25" polypropylene woofer; 5.0 kHz crossover; tuned baffle port to 65 Hz (±10 dB)
• 100° coverage angle (±6 dB @ 2 kHz) for broad room fill
• SpeedWing™ constant-tension mounting — fits 0.035" to 1.6" ceiling thickness
• Max SPL: 97 dB @ 1 m (derived from 40 W program power)
• Max continuous/program power: 20 W RMS / 40 W
• White paintable steel grille — standard flange, friction-fit
• ETL-C/US, CE, RoHS, UL 2043, UL 60065 certified

Typical Applications

• Retail stores and shopping malls with restricted plenum depth above drop ceilings
• Hotel corridors, lobbies, and guest room public areas requiring background music
• Office common areas and open-plan workspaces with limited above-ceiling space
• Restaurant dining rooms needing distributed, zone-controlled audio
• Healthcare facilities with plenum-rated, code-compliant audio requirements
• Educational institutions with shallow ceiling cavities in portable or modular buildings

Technical Specifications

Frequently Asked Questions

What is the minimum plenum depth required for this speaker?

The backcan is 3.5 inches (88.9 mm) deep with a 9.67-inch diameter. This shallow profile is specifically engineered for plenum spaces that reject standard 5-inch-deep ceiling speaker backcans.

How does BroadBeam Ring™ improve sound quality?

BroadBeam Ring™ surrounds the silk dome tweeter with a shaped ring lens that disperses high-frequency energy more evenly across a wide cone — reducing the hot spot directly on-axis and providing smoother coverage at oblique listening angles typical in distributed ceiling audio systems.

What mounting system does this speaker use?

The SpeedWing™ constant-tension fixed-wing system uses spring-loaded wings that grip any ceiling material between 0.035 and 1.6 inches thick. A color-coded tile bridge is included for suspended T-bar ceiling grids.

Does it require PoE, or can it use DC power?

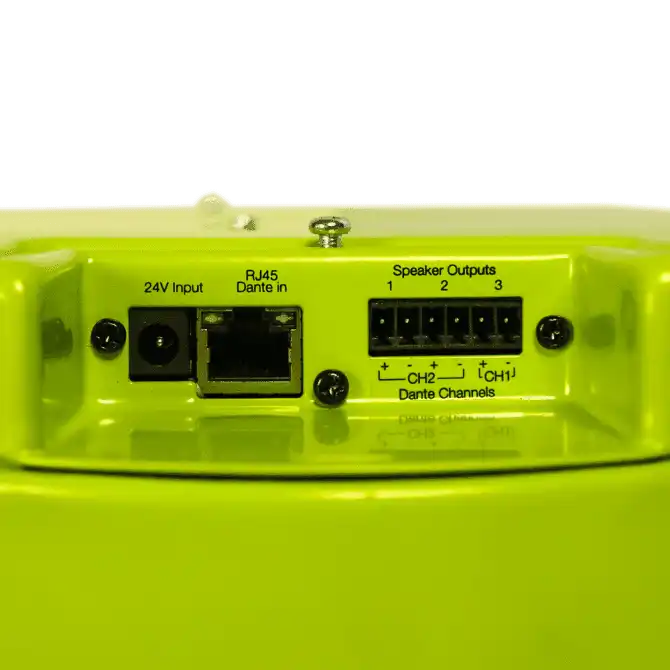

Both options are available. It runs on PoE/PoE+ from any 802.3at switch (up to 30 W) or from a 24 V DC barrel connector. The STNet Switch II provides up to 40 W per port. PoE++ is not compatible.

Is the grille paintable to match the ceiling finish?

Yes. The white steel grille is friction-fit and can be painted to match virtually any ceiling color — a significant advantage in projects where acoustic tile color varies or an invisible-from-floor look is required.

What is the cutout size for installation?

The required ceiling cutout diameter is 10.5 inches (266.7 mm). The visible speaker diameter after installation is 298.5 mm with an 8.6 mm profile height above the ceiling surface.
