SoundTube IPD-SM52-EZ-WX IP-Addressable Speaker in Black

SoundTube IPD-SM52-EZ-WX IP-Addressable Dante Speaker — Black

Overview

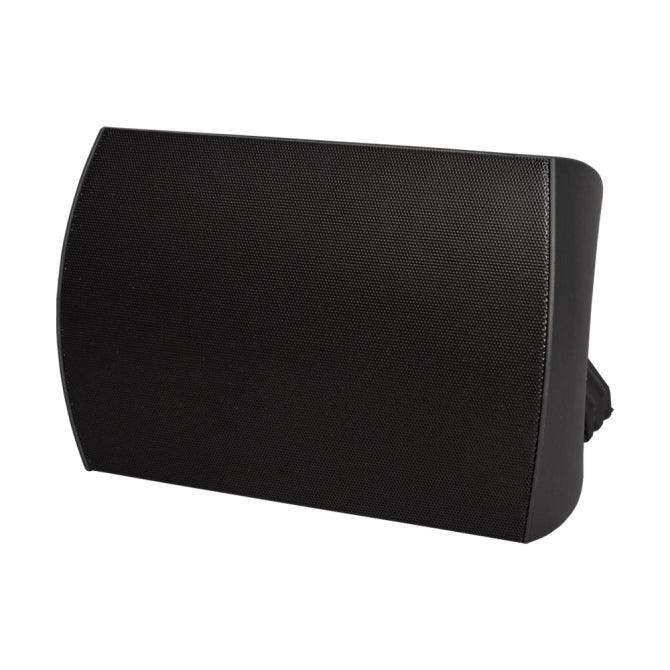

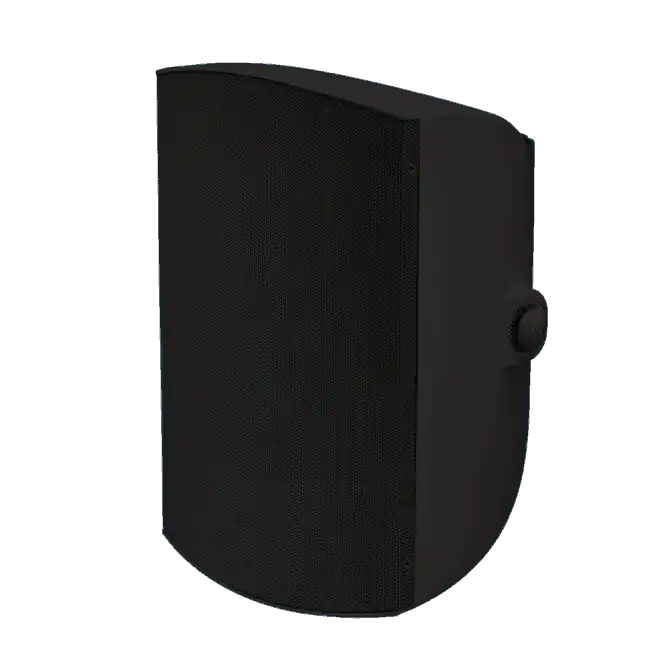

The SoundTube IPD-SM52-EZ-WX in black is a Dante®-enabled, IP65-rated surface-mount speaker with a built-in 40 W Power-over-Ethernet amplifier — engineered for commercial AV projects that demand simplified wiring, network-based control, and weather resistance. A single standard Cat cable delivers digital audio, PoE power, and control to each speaker, dramatically reducing conduit runs and field labor on large distributed audio systems. The black powder-coated aluminum grille integrates cleanly into darker architectural environments including blackbox theaters, dark-ceiling retail, and outdoor entertainment venues.

Description

The IPD-SM52-EZ-WX features a 5.25-inch polypropylene-cone woofer and a 1.0-inch soft-dome tweeter in a ported high-impact polystyrene enclosure, producing a frequency response of 55 Hz–20 kHz (±10 dB) with a maximum output of 97 dB SPL at one meter. The 3.5 kHz passive crossover delivers clean driver handoff while the broad 91° horizontal and 120° vertical dispersion pattern maintains consistent coverage throughout wide listening areas without hot spots or dead zones.

The integrated PoE amplifier draws up to 30 W from any IEEE 802.3at PoE+ switch, or up to 40 W when used with SoundTube's STNet Switch II. Note that PoE++ (IEEE 802.3bt) is not supported. Networking and zone management are handled entirely through software — no analog wiring or local controls are required after the Cat cable is terminated.

For outdoor use, the port plug must be installed to preserve the IP65 ingress protection rating; removing the plug for indoor applications extends bass output from the ported enclosure. The pre-mountable wall bracket lets installers complete the structural work before the speaker is delivered, accelerating commissioning timelines. Certifications include UL 60065, CE, RoHS, and IP65. For pricing and project support, visit creationnetworks.net.

Key Features

• Dante®-enabled IP-addressable endpoint — audio, power, and control over a single Cat cable
• Built-in 40 W PoE amplifier (30 W standard PoE+ / 40 W with STNet Switch II)
• IP65-rated for dust and water resistance — indoor and covered outdoor use
• 5.25" polypropylene woofer + 1.0" soft-dome tweeter, ported enclosure
• Frequency response: 55 Hz–20 kHz (±10 dB); Max SPL: 97 dB @ 1 m
• Wide dispersion: 91° horizontal / 120° vertical (±6 dB @ 2 kHz)
• Pre-mountable surface-mount bracket for faster installation
• Black powder-coated aluminum grille — CE, RoHS, UL 60065 certified
• Includes safety cable, wall mount bracket, conduit connector, and port plug
• Compatible with STNet-Switch and third-party PoE/PoE+ switches

Typical Applications

• Blackbox theaters and dark-ceiling performance spaces
• Outdoor entertainment venues and covered stadium concourses
• Dark-themed retail environments and nightclub perimeter zones
• Hotel outdoor bar and pool deck audio systems
• Corporate AV installs requiring network-managed distributed audio
• Houses of worship with multi-zone campus audio systems

Technical Specifications

Frequently Asked Questions

Does this speaker require a separate amplifier?

No. The built-in 40 W PoE amplifier is powered directly from the network switch — no external amp or power supply is needed at the speaker.

Is this speaker suitable for outdoor use?

Yes — the IP65 rating provides full protection against dust ingress and low-pressure water jets. The port plug must be installed for outdoor deployments. The black finish is less prone to showing weathering compared to white finishes.

What PoE level does this speaker require?

Standard PoE+ (IEEE 802.3at) supports up to 30 W. For full 40 W output, use SoundTube's STNet Switch II. PoE++ (IEEE 802.3bt) is not compatible.

How are multiple speakers managed on one network?

Each speaker receives a unique IP address and is managed via SoundTube's STNet software. Volume, EQ, and zone assignments are all handled remotely over the network — no physical interaction needed after installation.

Is this a standard Dante device compatible with other manufacturers?

Yes. As a Dante®-enabled endpoint, it works with any Dante-compatible DSP, mixer, or media server. Dante Controller software provides flexible audio routing between devices.

What grille and weatherboot accessories are available?

The speaker ships with the standard black powder-coated aluminum grille. Optional weatherboot accessories are available separately to provide additional environmental protection in challenging outdoor conditions.
