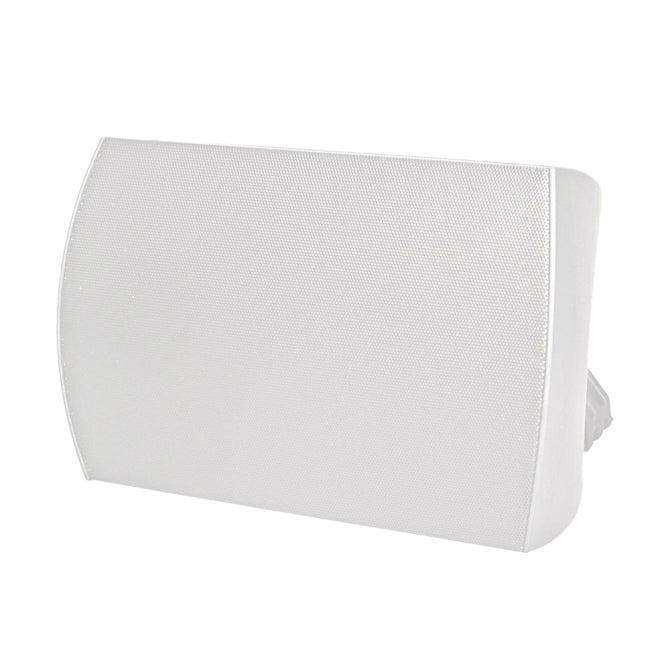

SoundTube IPD-SM52-EZ IP-Addressable Speaker in White
SoundTube IPD-SM52-EZ IP-Addressable Speaker in White is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
SoundTube IPD-SM52-EZ IP-Addressable Speaker in White
SoundTube IPD-SM52-EZ IP-Addressable Speaker in Black
The IPD-SM52-EZ is a Dante-enabled, digital end-point solution in a surface-mount loud speaker. This speaker includes a 40 W PoE amplifier for simplified installation and set up. Driver components consists of one 5.25 inch polypropylene woofer and one 1.0 inch soft dome tweeter in a ported enclosure. The included pre-mountable surface-mount bracket allows for quick and easy installation and the powder-coated aluminum grille keep the speaker looking good in most environments. The system is UL 60065 approved. Included accessories: Safety cable, wall mount bracket, conduit connector and optional port plug.
Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)
Specs
| Color | White |
|---|---|
| UPC | 752830435186 |
| Manufacturer | SoundTube |
| Manufacturer's Category | STNet IP-Addressable and Dante Series |
| Height | 11.88 in / 301.75 mm |
| Width/Diameter | 7.5 in / 190.5 mm |
| Shipping Weight | 7.8 lbs / 3.54 kg |
| Carton Height | 12 in / 304.8 mm |
| Carton Length | 15 in / 381 mm |
| Carton Width | 10.5 in / 266.7 mm |
| Certifications | CE, IP65, RoHS, UL60065 |
| Enclosure Properties | High Impact Polystyrene |
| Included Accessories | Mounting Assembly, Mounting Hardware, Port Plug, Safety Cable |
| Source Inputs | RJ45 Ethernet Port |
| Coverage Angle (±6dB @ 2kHz) | 91° Horizontal / 120° Vertical |
| Crossover Frequency | 3.5 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 6.9 and 5.9 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.2 and 7.7 |
| Frequency Response (± 10 dB) | 55 Hz - 20 kHz | Sealed: 62 Hz - 20 kHz |
| Frequency Response (± 3 dB) | 65 Hz - 20 kHz | Sealed: 80 Hz - 20 kHz |
| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 1.0 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave, 2nd order |
| Max SPL @ 1M | 97 dB |
| Network Type: High Pass | 12 dB per octave, 2nd order |
| Tweeter Driver | 1" Soft Dome |
| Woofer Driver | 5.25" Polypropylene Cone w/ Butyl Rubber Surround |
